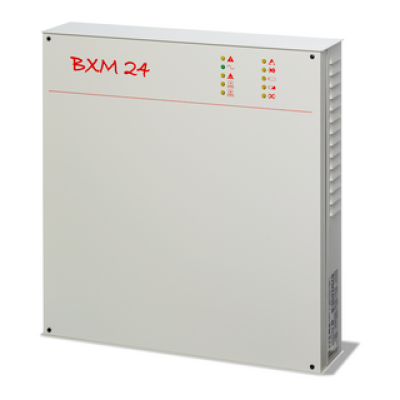

BXM24/25-B Microprocessor controlled power station - Max. 2,5A @ 27,6VDC. RS485 Bus interface for J408-8 and J424-8 panels
The BXM24/25-U is approved by IMQ to EN 54-4:1997 + A1:2002 and EN60950-1:2001. The steel housing contains a 2.5 amp switch mode power supply and monitoring board and has space to accommodate 2 x 12V 17Ah sealed lead acid batteries. The 10 front panel LED’s comprehensively indicate the status of the unit.
Key Features
- Robust metal housing
- Twin fused outputs
- Temperature compensated charging
- Deep discharge protection of batteries
- Fault relay output
- Size 383mm wide x 408mm high x 97mm deep
- Weight 4.3 Kg (excluding batteries)
- Supply voltage 230VAC 50/60Hz
- Comprehensive LED status indication
- Max. 2,5A @ 27,6VDC
- RS485 Bus interface for J408-8 and J424-8 panels
