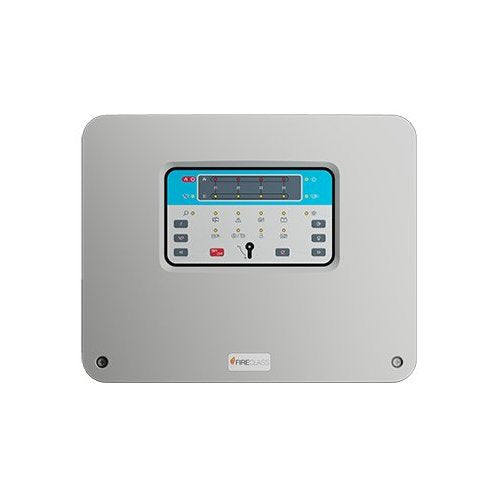

FireClass 508.032.730 Essential 2 Zone Panel
The Fireclass Essential Panel range is an EN-approved, low cost conventional panels that are available in both 2 Zone and 4 Zone variants.
The panels can support up to 128 devices with a maximum of 32 devices on each zone.
The panels are approved to EN 54-2, EN 54-4, and listed as part of the EN 54-13 system certificate.
The panel UI has the following features:
- 18 LEDs on the 2 Zone Panel and 22 LEDs on the 4 Zone Panel
- One piezo buzzer for audible indication
- Eight push buttons for user inputs
Key Features
- Modern and aesthetic design
- Surface mountable
- Option to set delays for outputs during alarm
- Buttons for silence, resound, and reset
- Two open collector outputs
- Disable feature for sounders and zones
- Volt-free fire and fault relays
- Test feature for installation
- Two auxiliary inputs: alert input and class change input
- Support for all FireClass 600 and 700 series conventional detectors, conventional sounders, and VADs
- Support for third party devices
- Please note: For full details on all the supported devices, refer to the EN 54-13 certificate.
- Fully compliant with EN 54-2, EN 54-4, and is listed as part of the EN 54-13 system certificate
