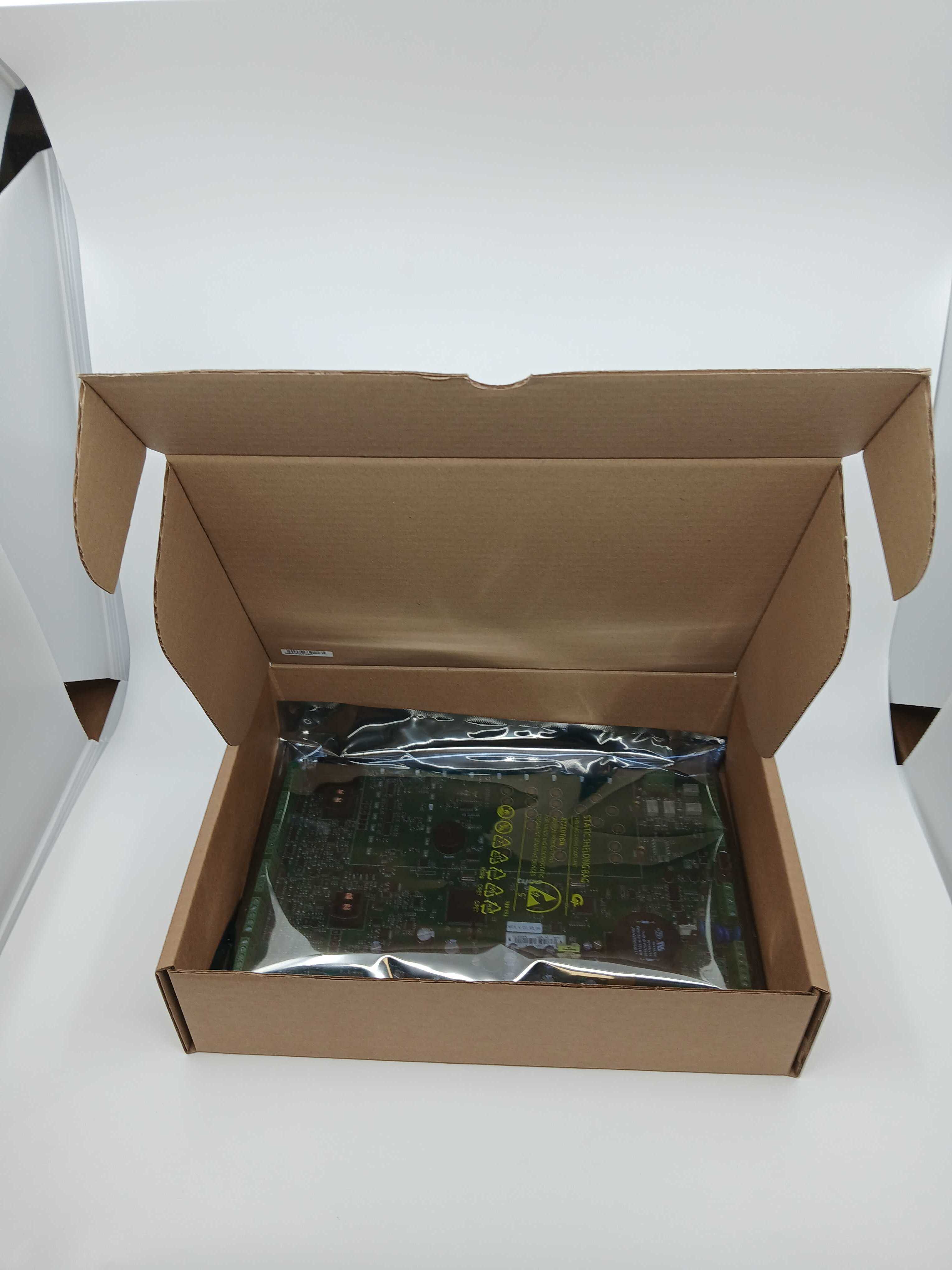

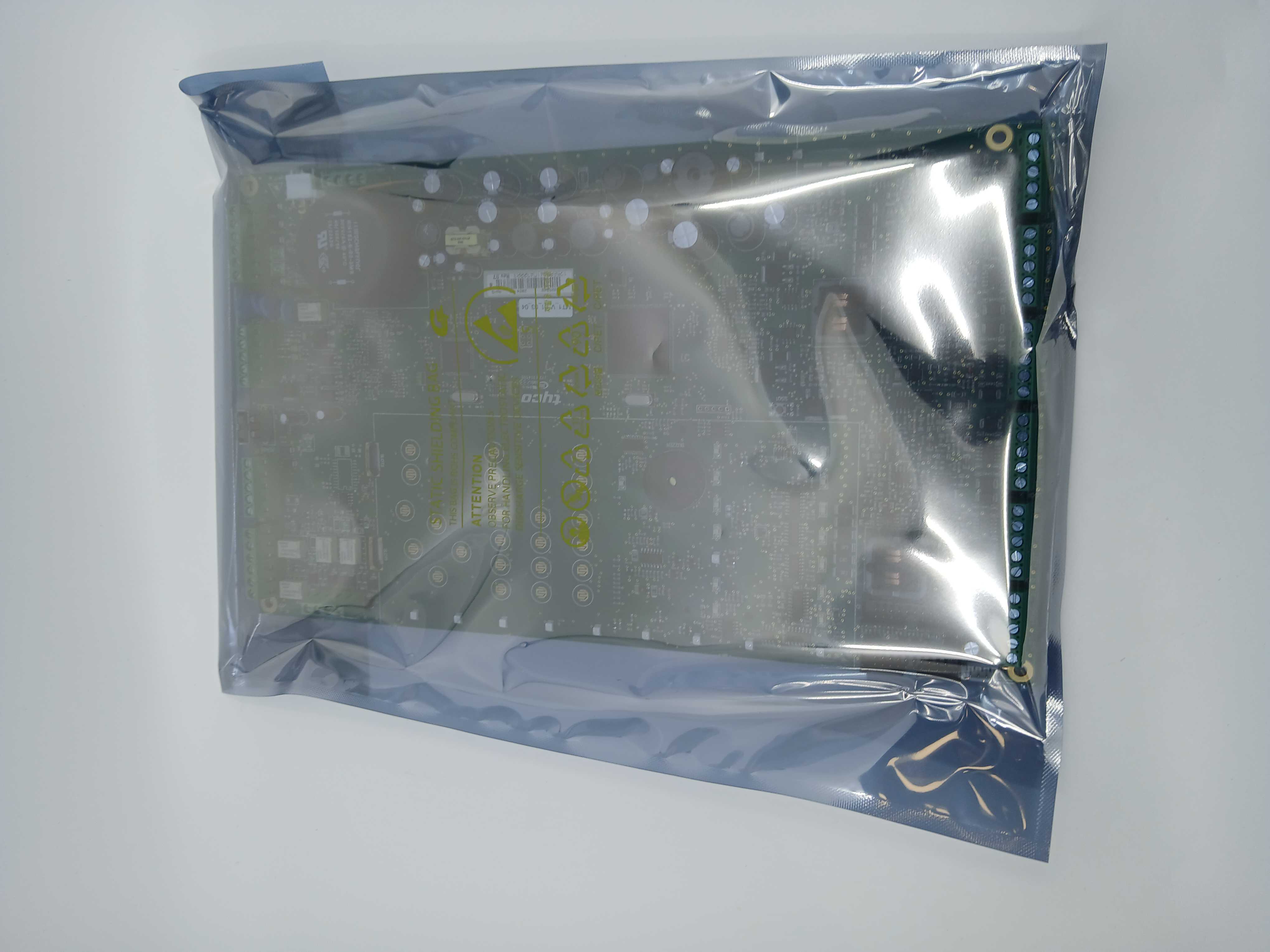

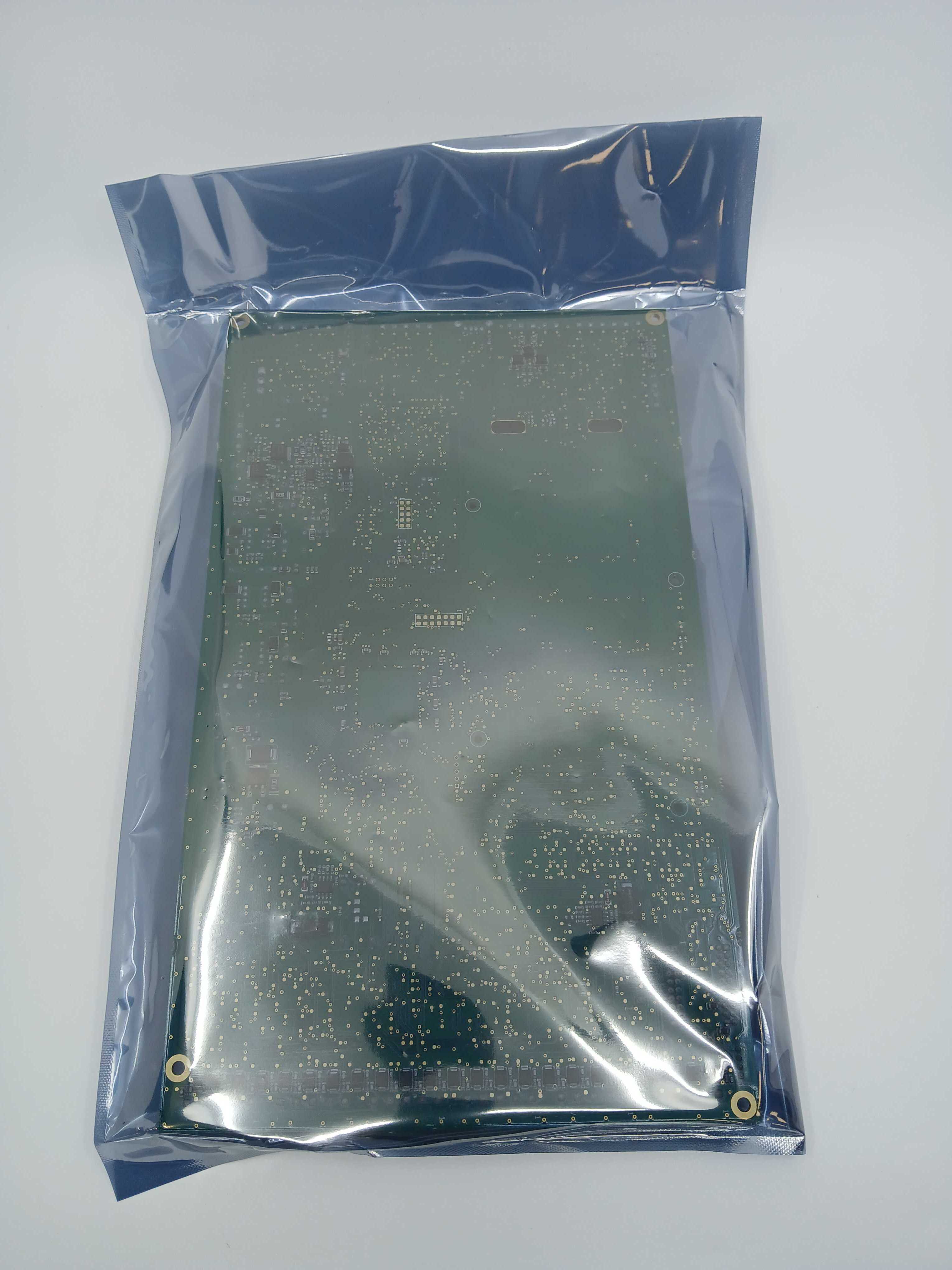

The FireClass 508.032.045 is the spare motherboard for the FireClass FC506 6-loop addressable fire control panel (557.200.726).
The FC506 is an auto-addressing panel with "6 in 2" loops: three circuits in each of two loops, supporting up to 500 addressable devices and 256 zones. Up to 800 mA is dynamically shared across the three circuits of each loop. The panel is programmed from its backlit 4 x 40-character LCD and front controls or with FireClass PC software.
Key features
- FireClass spare motherboard for the FC506
- FC506 panel features: auto mapping with Intelli-Zone, loop break location, walk test and 4000-event log
- On-board PSTN communicator; GSM/GPRS as an external module; optional IP board
- Dual-role USB interface (host/device); up to 2 installers and 8 users
- Up to 8 repeaters and up to 7 FC500-series panel clients
- Automatic drift compensation
Technical specifications
- Order number: 508.032.045 (spare motherboard for FC506)
- FC506 capacity: 6 circuits in 2 loops, up to 500 addressable devices, 256 zones
- Loop power: 800 mA
- Supply voltage (panel): 230 V AC 50 Hz -15/+10%; input current 1.5 A
- Aux output rated voltage: 27.6 V DC
- Max. battery size (panel): 17 Ah
- Panel dimensions (H x W x D): 493 x 429 x 124 mm
- Operating temperature: -5°C to 40°C; humidity up to 95% non-condensing
