FireClass TFS-3192R Conventional Fire Alarm Sounder with Strobe - Red
£13.60
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Combined sounder and strobe in one unit
- 100dB sound output
- Wide angle LED flasher with 7 bright LEDs
- Low power consumption
- Works with most brands of conventional fire alarm panel
- Flush or surface mounting
Frequently bought together
FireClass
FireClass TFS-3192W Conventional Fire Alarm Sounder with Strobe - White
Sale price£13.60
In stock
FireClass
FireClass TFS-3193W Conventional Fire Alarm Flasher White
Sale price£11.05
In stock, 165 units
FireClass
FireClass 20-118 Combined Roshni Sounder / Strobe Complete with Deep Base IP65 VID
Sale price£28.45
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

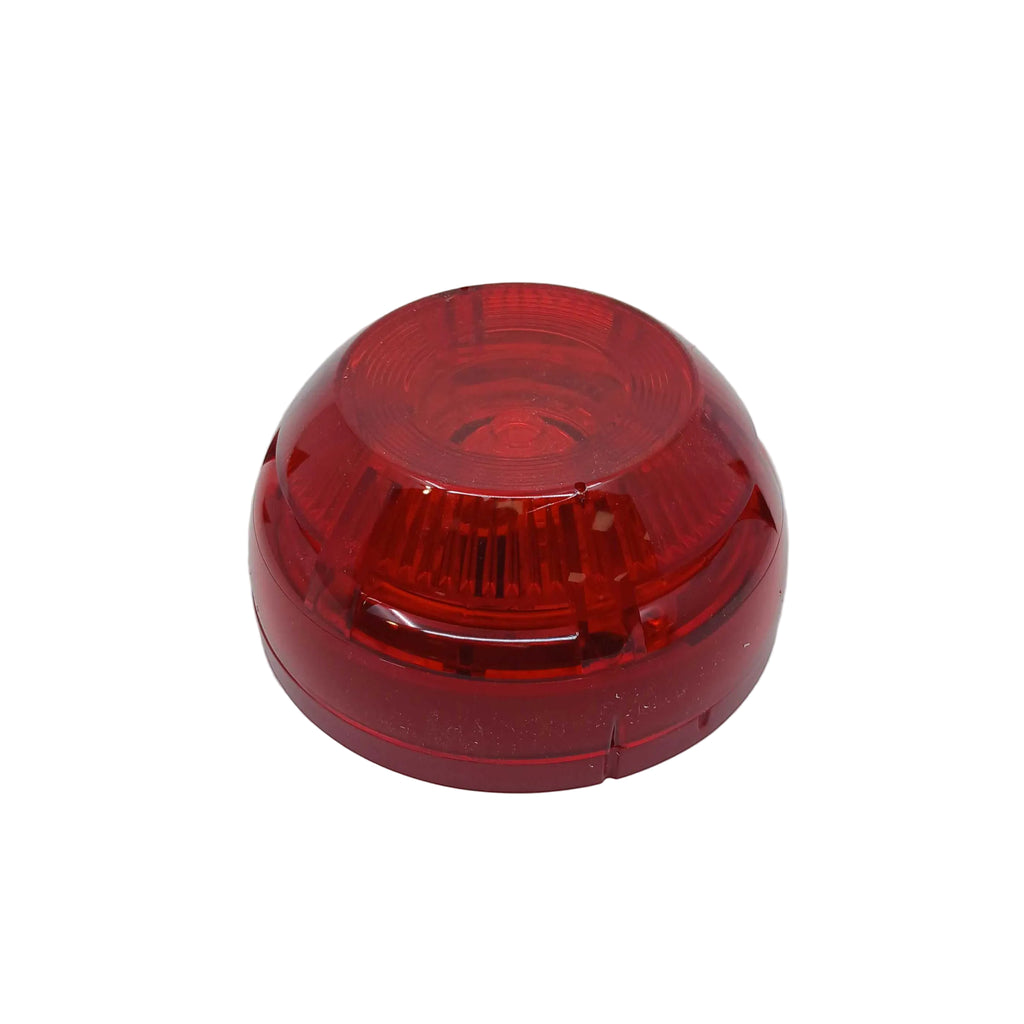

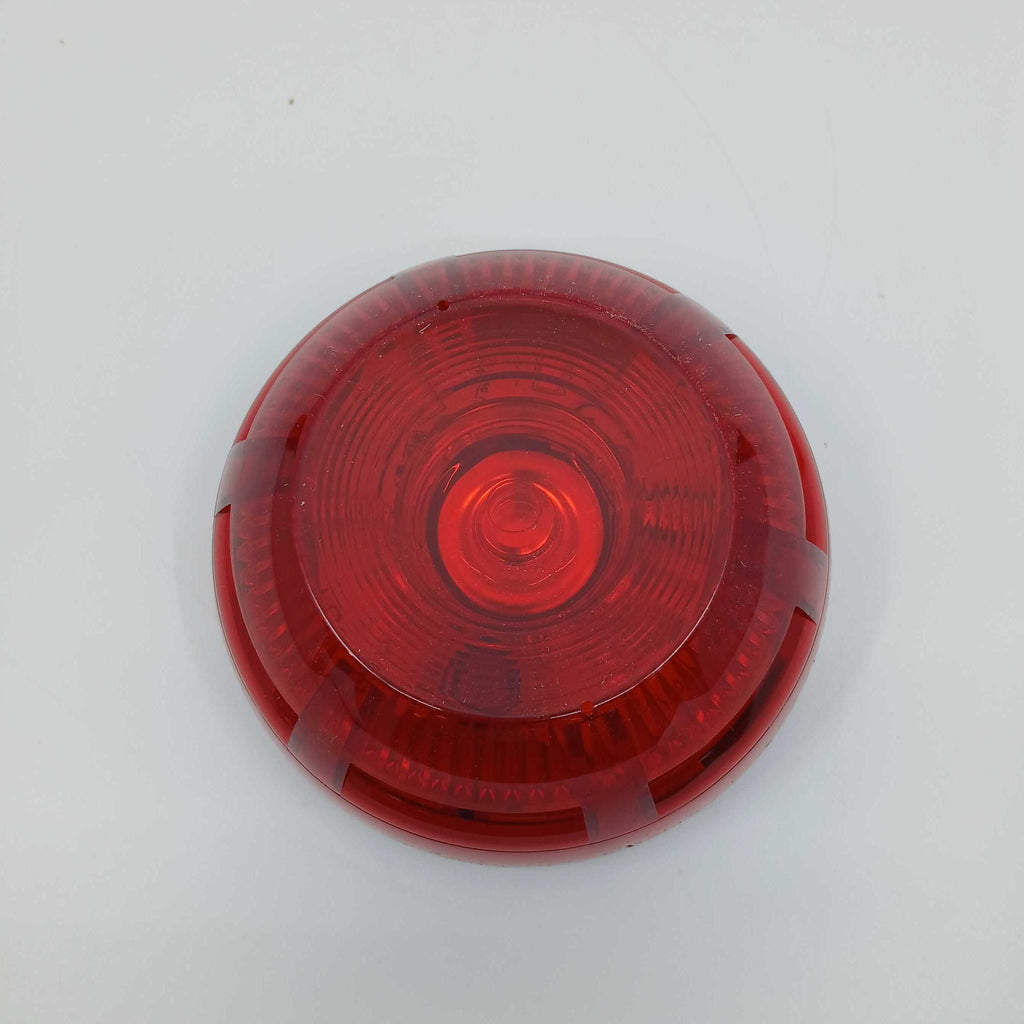

The FireClass TFS-3192R is a red conventional fire alarm sounder with a built-in strobe, for indoor use. It gives a 100dB sound output and a wide angle LED flash, with low current draw, and can be used with most brands of conventional fire detection system. It is certified to EN 54-3 for sounders and EN 54-23 for visual alarm devices.
Key features
- Combined sounder and strobe in one unit
- 100dB sound output
- Wide angle LED flasher with 7 bright LEDs
- Low power consumption
- Works with most brands of conventional fire alarm panel
- Flush or surface mounting
- Certified to EN 54-3 and EN 54-23
Technical specifications
- Model: TFS-3192R
- Operating voltage: 24 to 28V DC
- Alarm current: 19mA
- Sound output: 100dB (±2dB) at 1m, 24V DC
- Flash rate: 1 second on, 1 second off
- EN 54-23 coverage: W-2.4-4
- Cable size: 0.4 to 1.5mm²
- Ingress protection: IP21C
- Operating temperature: -20°C to +55°C
- Humidity: up to 95% RH
- Dimensions: 110mm diameter x 55mm high
- Material: ABS body, red UL94 non-flammable polycarbonate frame
- Standards: EN 54-3, EN 54-23
