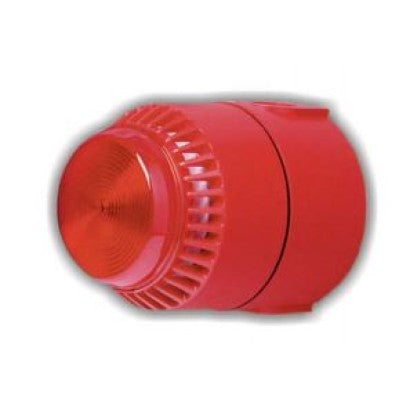

Combined Roshni sounder/strobe complete with deep base IP65 VID
The 20-118FC is a combined sounder and beacon which combines the features of the Roshni electronic sounder with a fully integrated Xenon beacon. These sounders are fully compatible with all Roshni tones. They are available in red, with red lens.
A flexible alarm sounder for Fire and Security applications complete with volume control and dil switch to provide 32 tones. All Roshni sounders have synchronised start for self-synchronisation without third wire.
The unit is weather resistant to IP65.
Key Features
Deep Base
IP Rating: IP65
Specification
Operating Voltage: 18 to 30Vdc
Typical Current: 68mA @ 24Vdc
Flash Energy: 0.7 Joules
Flash Frequency: 60 per minute
Tones: Roshni Tones 3 & 14
Sound Output: 101dBA@1m
Volume Adjustment: 0 to -20dB
Operating Temperature: -10°C to +55°C
Dimensions (dia. x depth): 93 x 92 mm (shallow) 93 x 121 mm (deep)
