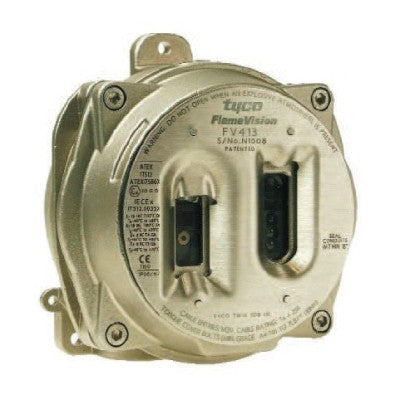

FireClass 516.300.413 FV413F Triple IR Flame Detector with NTSC Camera

FV413F Triple infrared flame detector with NTSC camera

FLAMEVision FV400 uses Triple IR Solar Blind technology for flame detection. This provides a reliable and cost effective solution in standard flame detection applications especially where there is a single hazard in the field of view. The FV400 FLAMEVision detectors uses Triple IR Solar Blind sensing technology and flame detection algorithms to provide high performance sensing capabilities for hydrocarbon fires.

This includes the ability to reliably sense flames through high densities of solvent vapours and black smoke, increasing the probability of early detection with consistent high sensitivity to flame throughout the whole field of view. They also ensure consistent detection of many different types of hydrocarbon fuels from alcohol to aviation fuel. Multiple interfaces are provided with the option of an integral CCTV camera to provide a visual means of operator verification.

Key Features:

Triple IR solar blind sensing technology
Multiple Field Interfaces
Detection range: Up to 65m for 0.1m2 n-heptane pan fire
Automatic optical path monitoring,
Integral flame simulation and remote walk test help reduce the on-going life time cost of the flame detector installation
Video verification via the integrated optional flameproof camera
