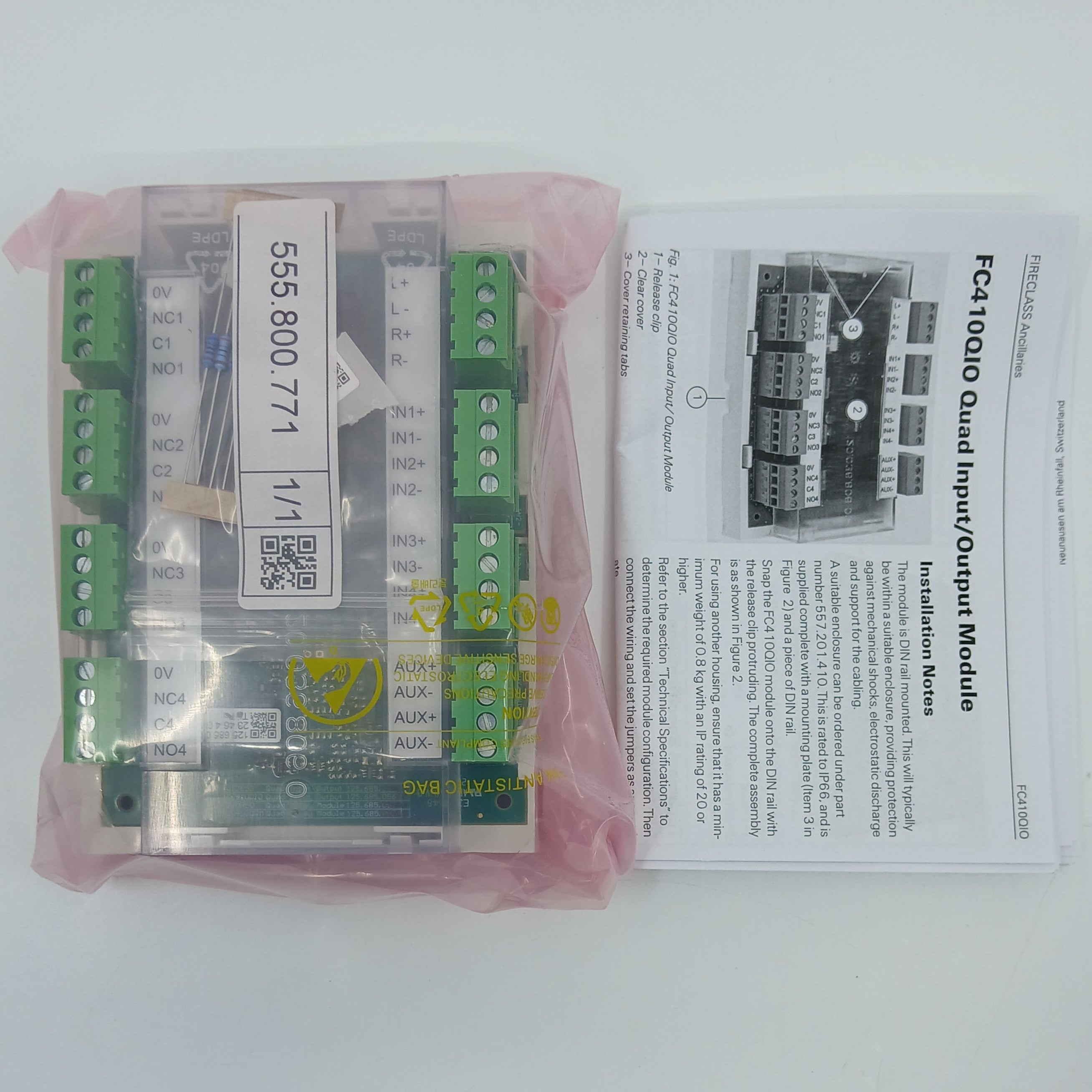

FireClass 555.800.771 FC410QIO 4 Way Input / Output Module

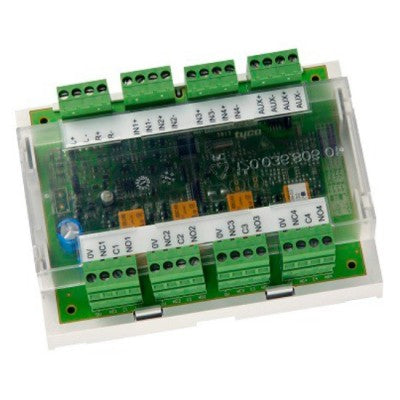

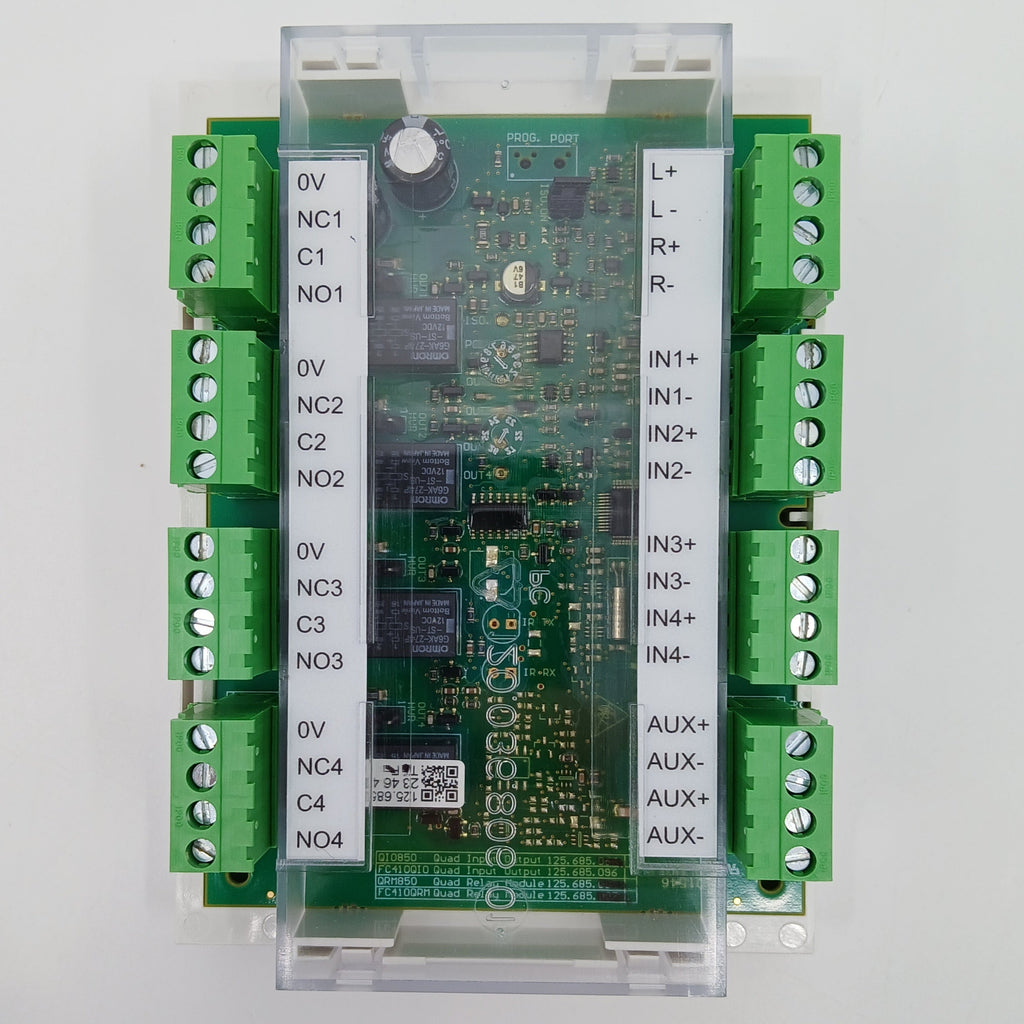

The FC410QIO Quad Input/Output Module is designed to provide four monitored digital inputs and four potential free relay changeover outputs. The outputs can be connected to an Auxiliary Voltage source and its voltage can be monitored. The FC410QIO has an integral FireClass loop isolator. When a section of the loop adjacent is shorted, the isolator trips, isolating the shorted section, then the yellow LED illuminates.

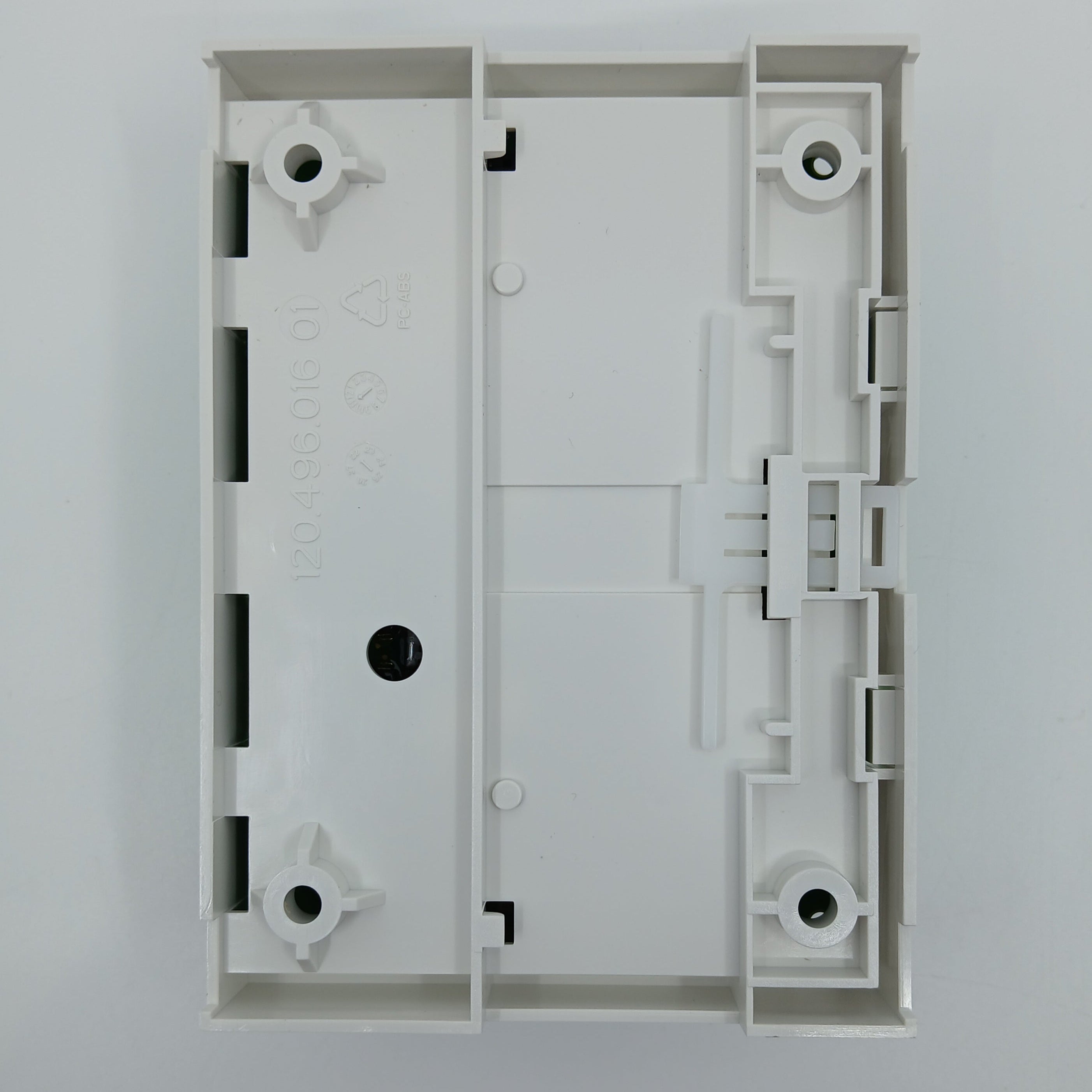

This status remains until the short is removed. The FC410QIO must be fitted in a control enclosure or any distributor enclosure. The FC410QIO will be preferably mounted via a DIN rail. Alternatively, it can be directly fixed on the rear side of the enclosure. The digital input monitoring and isolator functions are both configurable. Furthermore, all outputs can be connected to the HVR800 which allows switching to high power galvanic isolated loads.

Key Features

Quad Input/Output Module with 4 digital inputs and 4 relay outputs
Monitors auxiliary voltage with potential-free relay changeover outputs
Integral FireClass loop isolator for short circuit protection
Configurable digital input monitoring and isolator functions

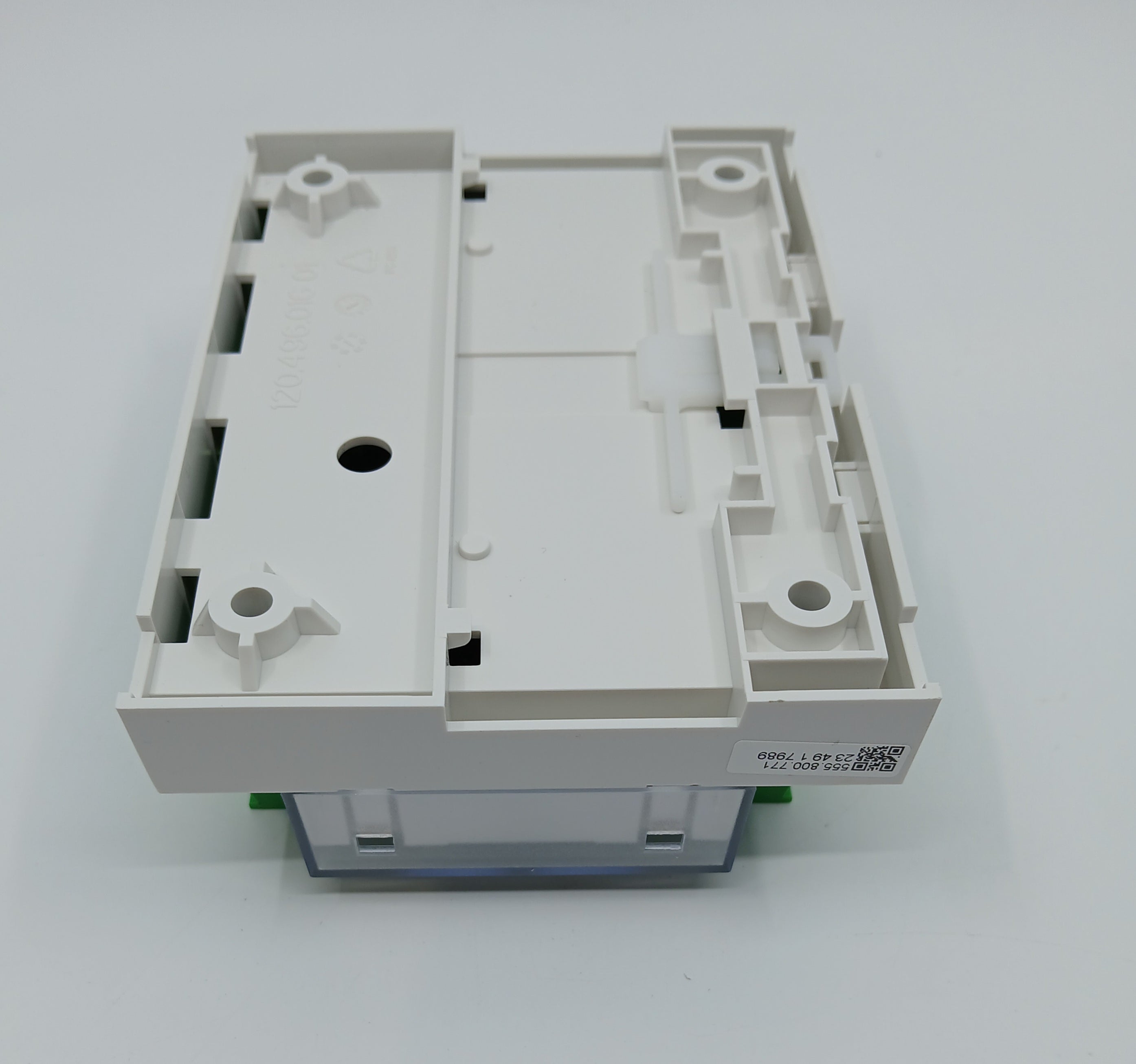

DIN rail or direct rear-side mounting options
Compatible with HVR800 for high-power load switching
