FireClass 576.440.016 FC440CAVB Addressable Base Sounder VAD BC
SKU: 576.440.016Brand: FireClass
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 5 | Same day dispatch |
| UK Hub | 0 | None at UK Hub |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk

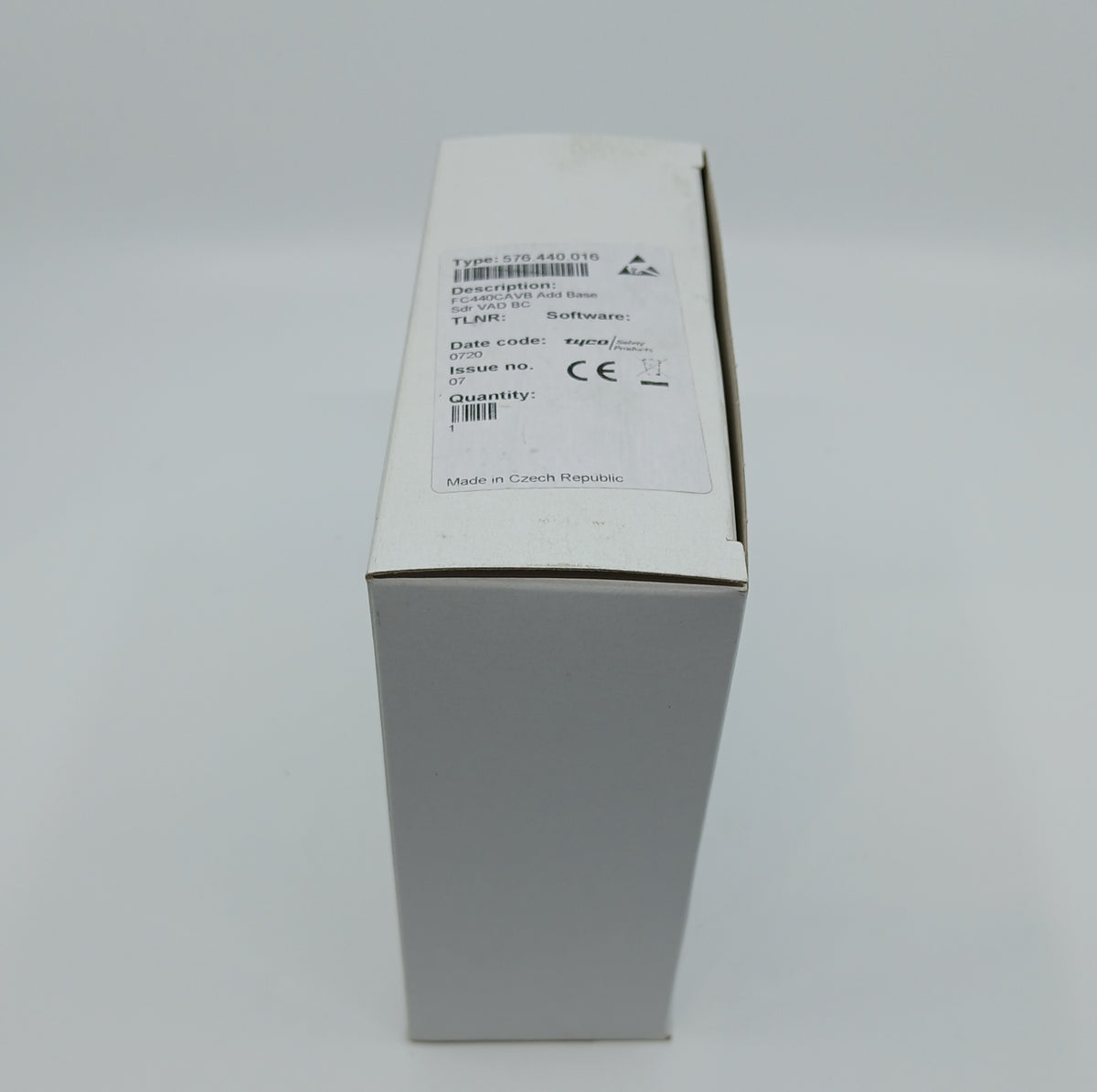

FireClass 576.440.016 FC440CAVB Addressable Base Sounder VAD BC
£127.70

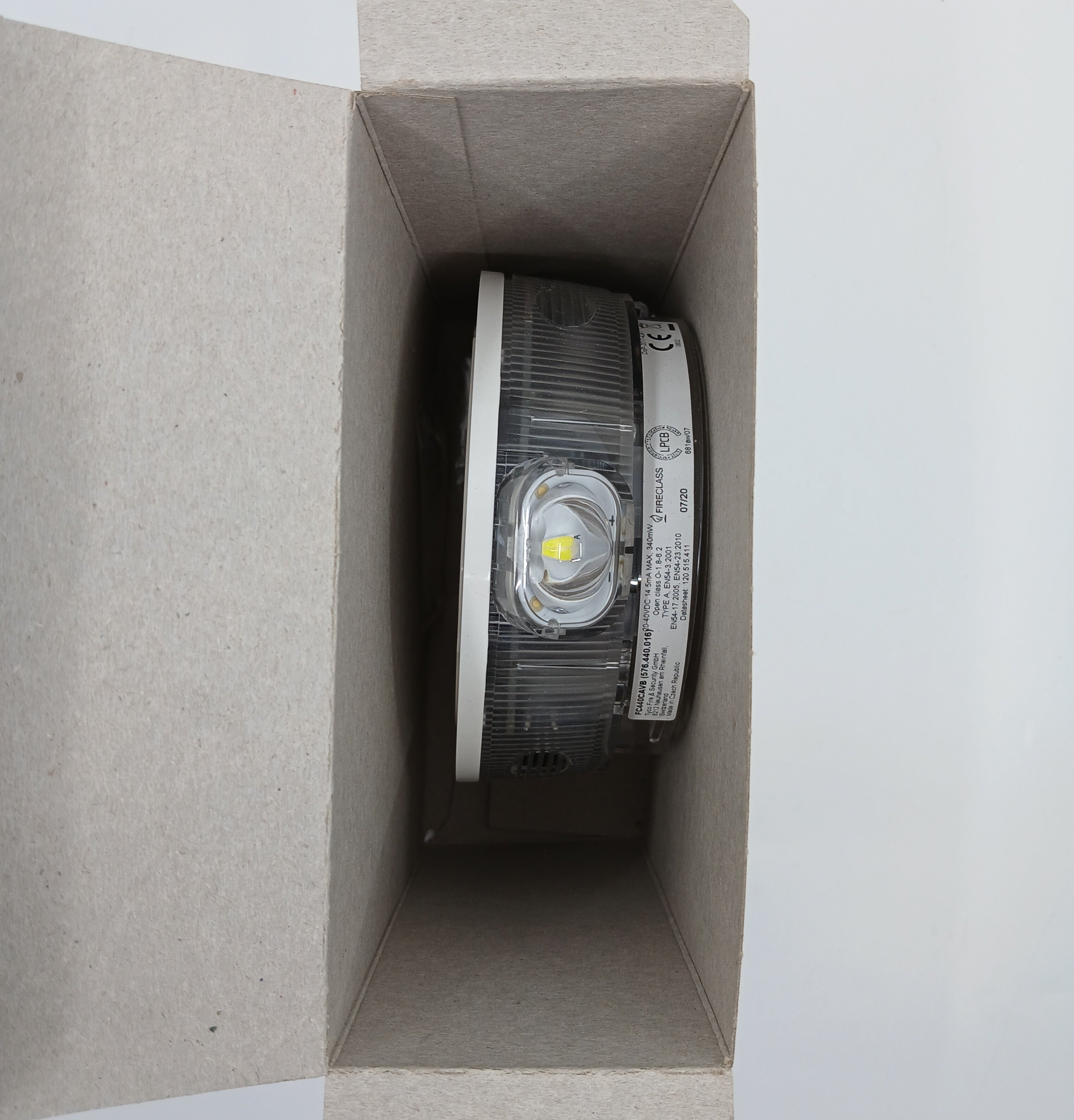

Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Combined sounder and EN 54-23 visual alarm device in a detector base
- Built-in two-port loop short-circuit isolator (EN 54-17)
- 15 selectable tones on the base variant, including Dutch Slow Whoop, BS 1 Hz sweep, Temporal 3/4 and conventional bell
- 4 sounder volume settings; white flash at 0.5 Hz or 1 Hz
- Default address 255; set before installation with the FC490ST service tool
- Compatible with the Ceiling Tile Adapter kit (517.050.060) using the CTA-AP adaptor plate (517.050.058)
Frequently bought together
Product details

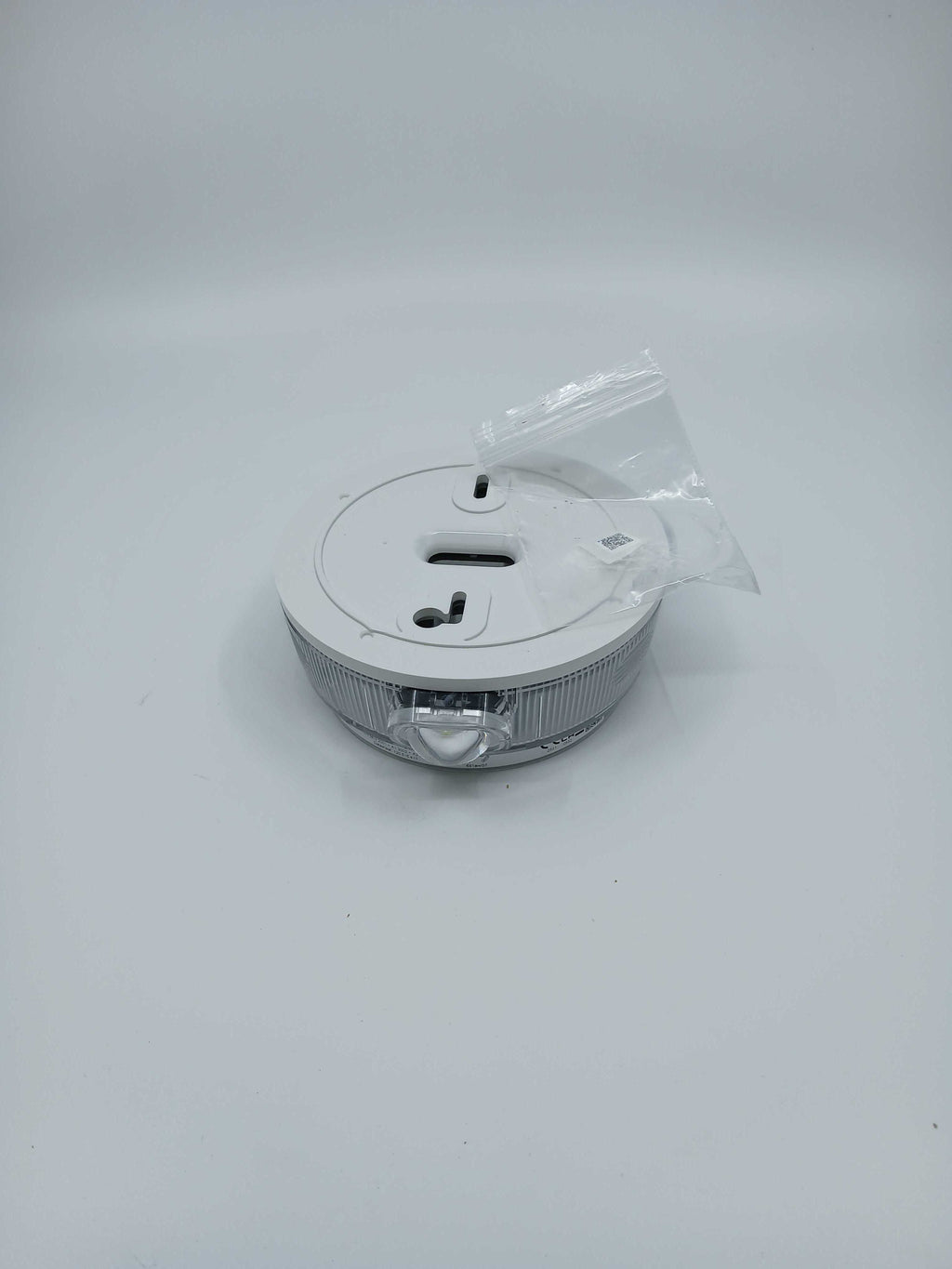

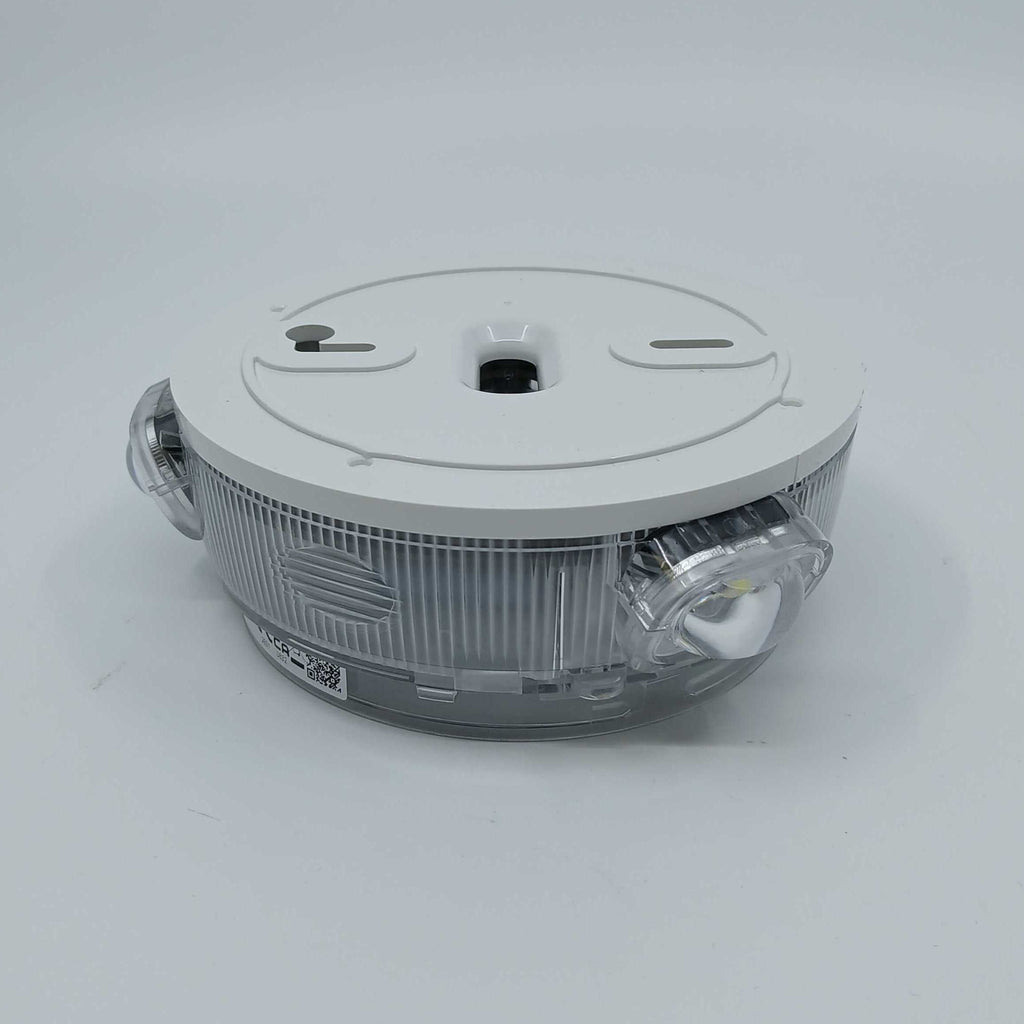

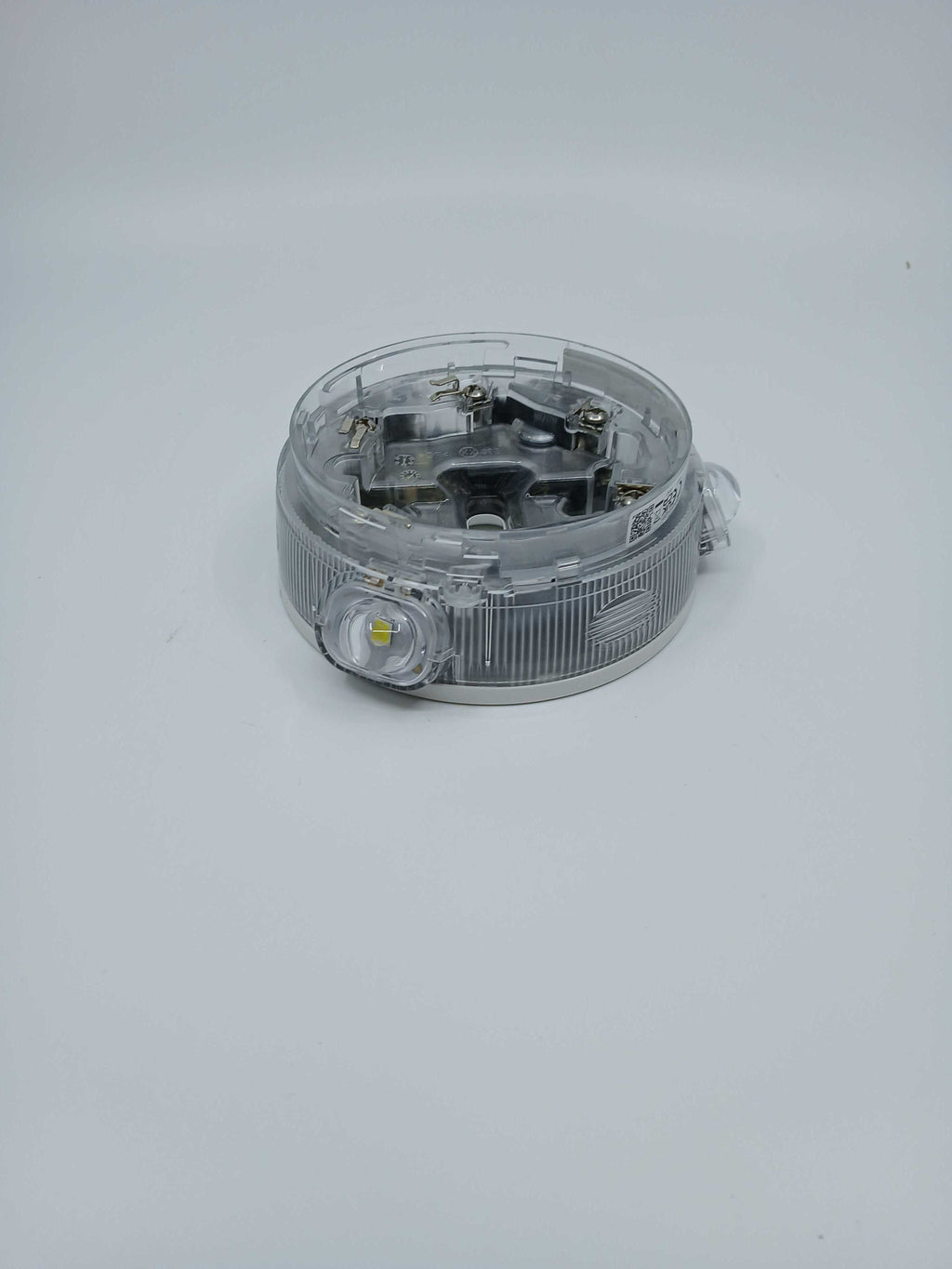

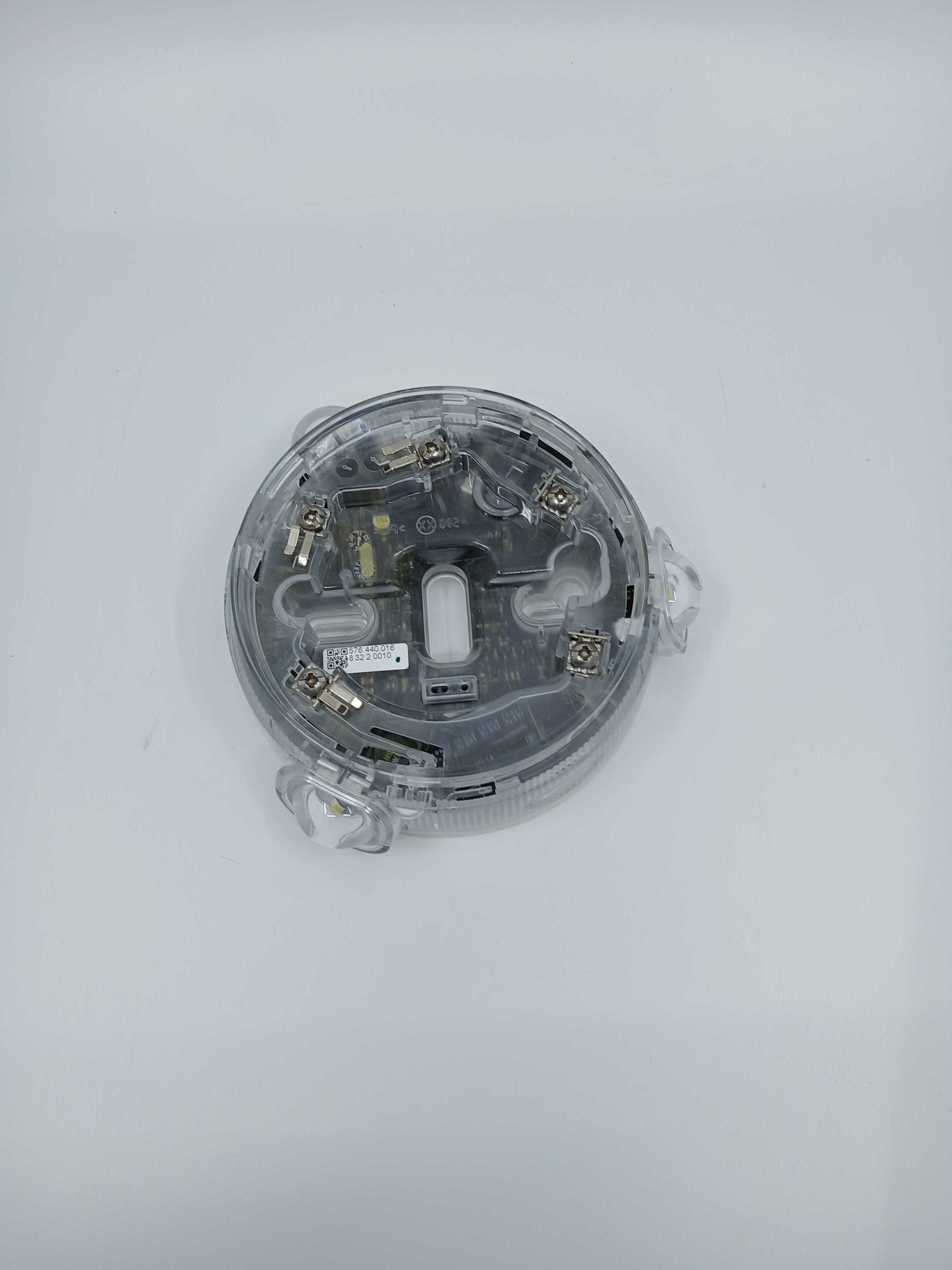

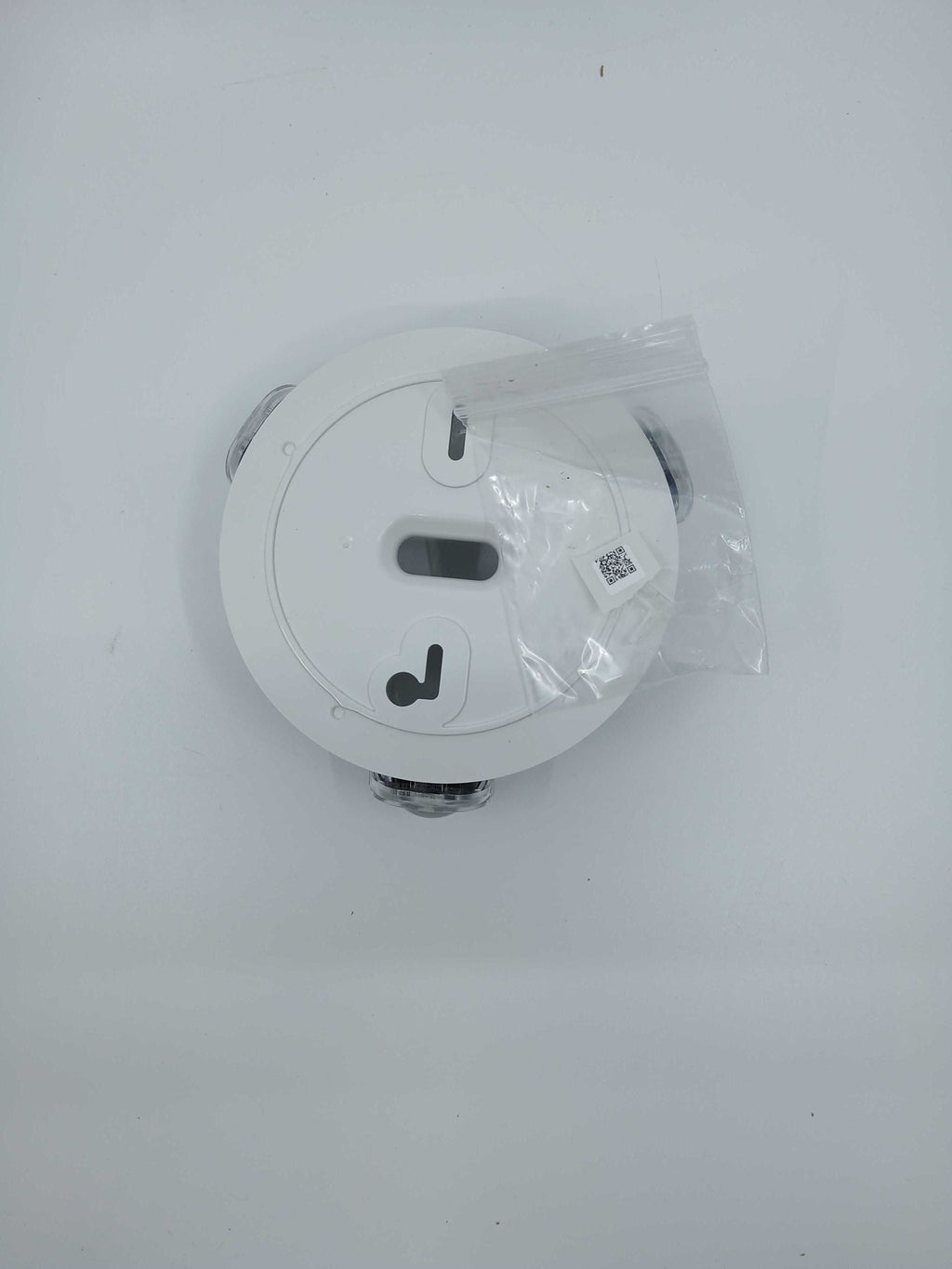

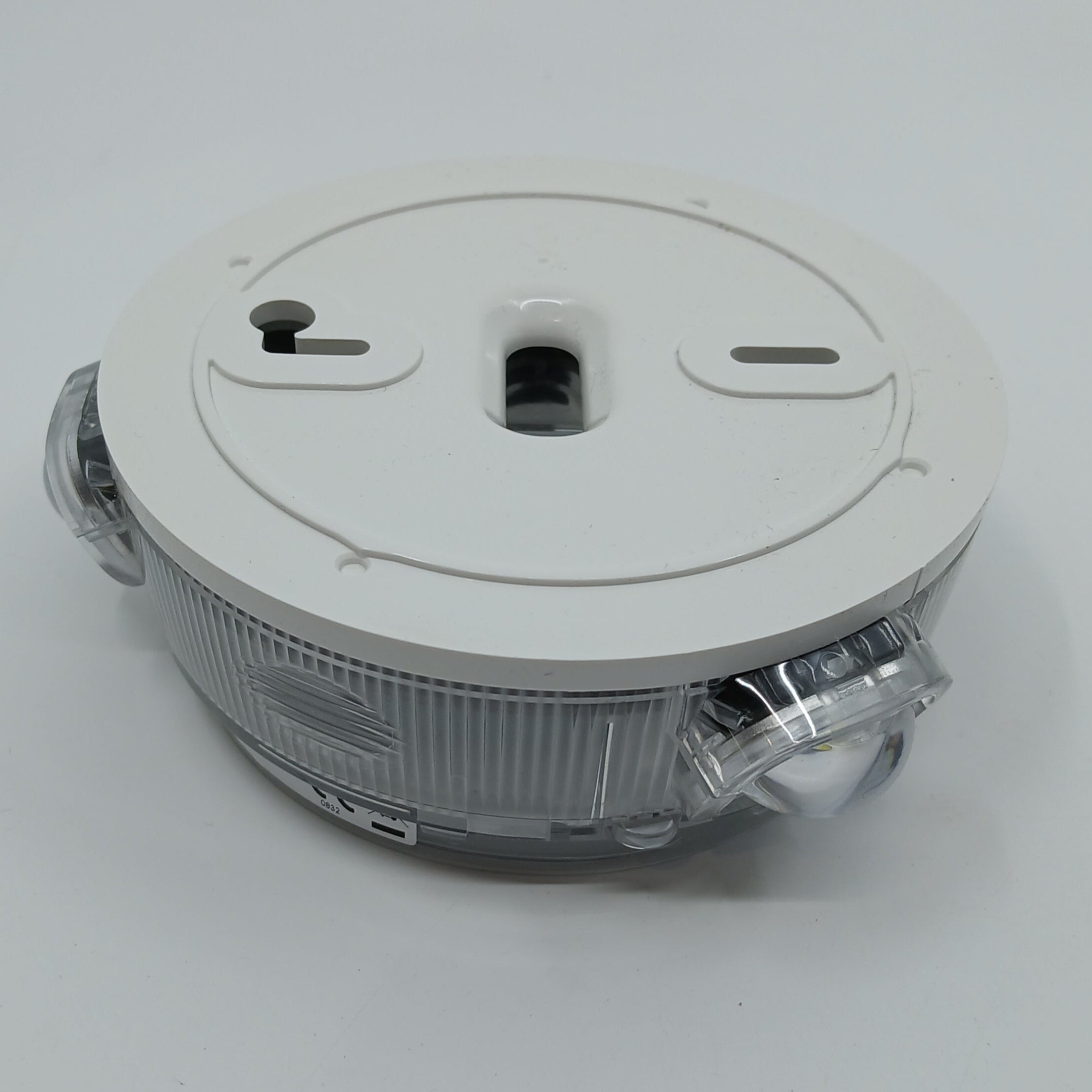

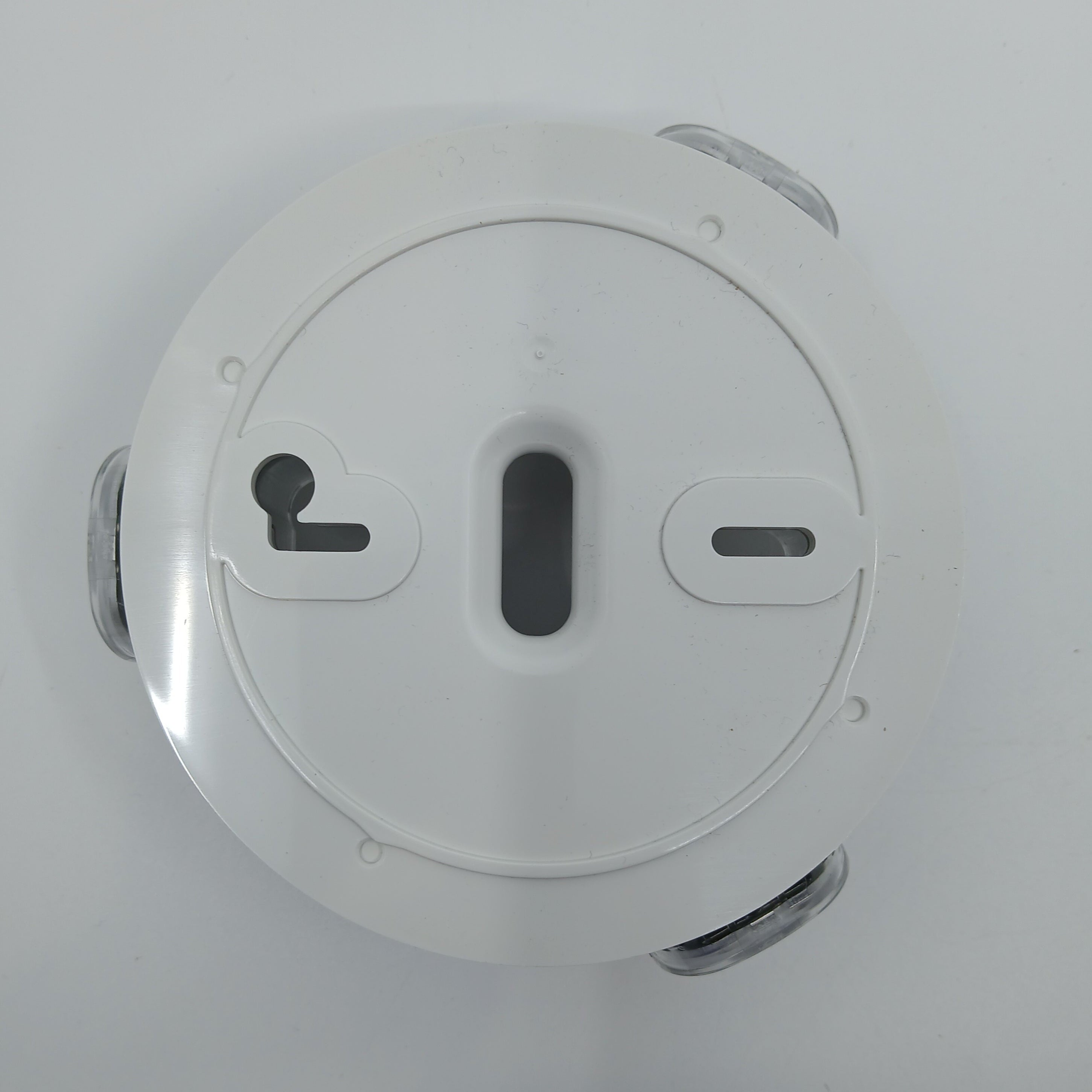

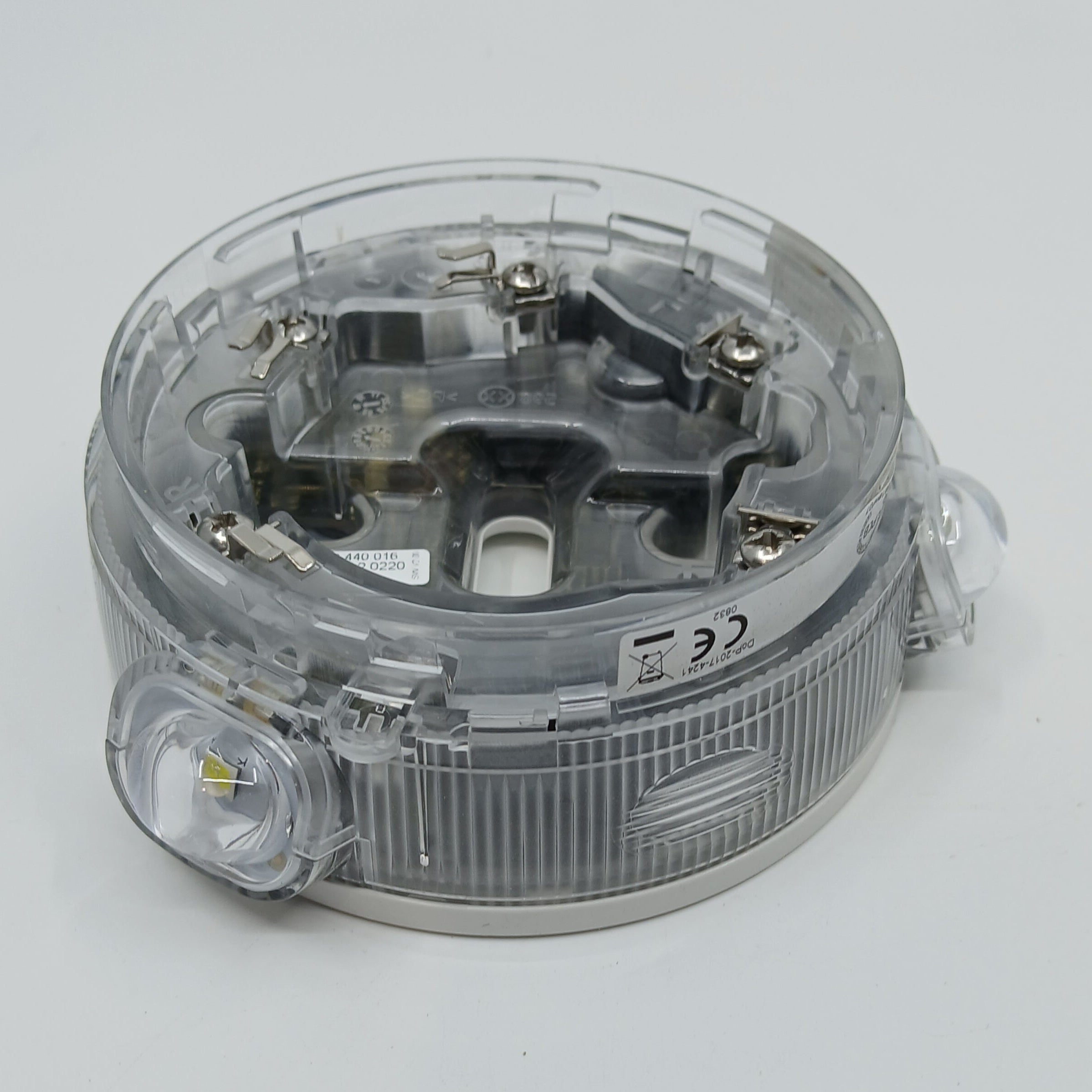

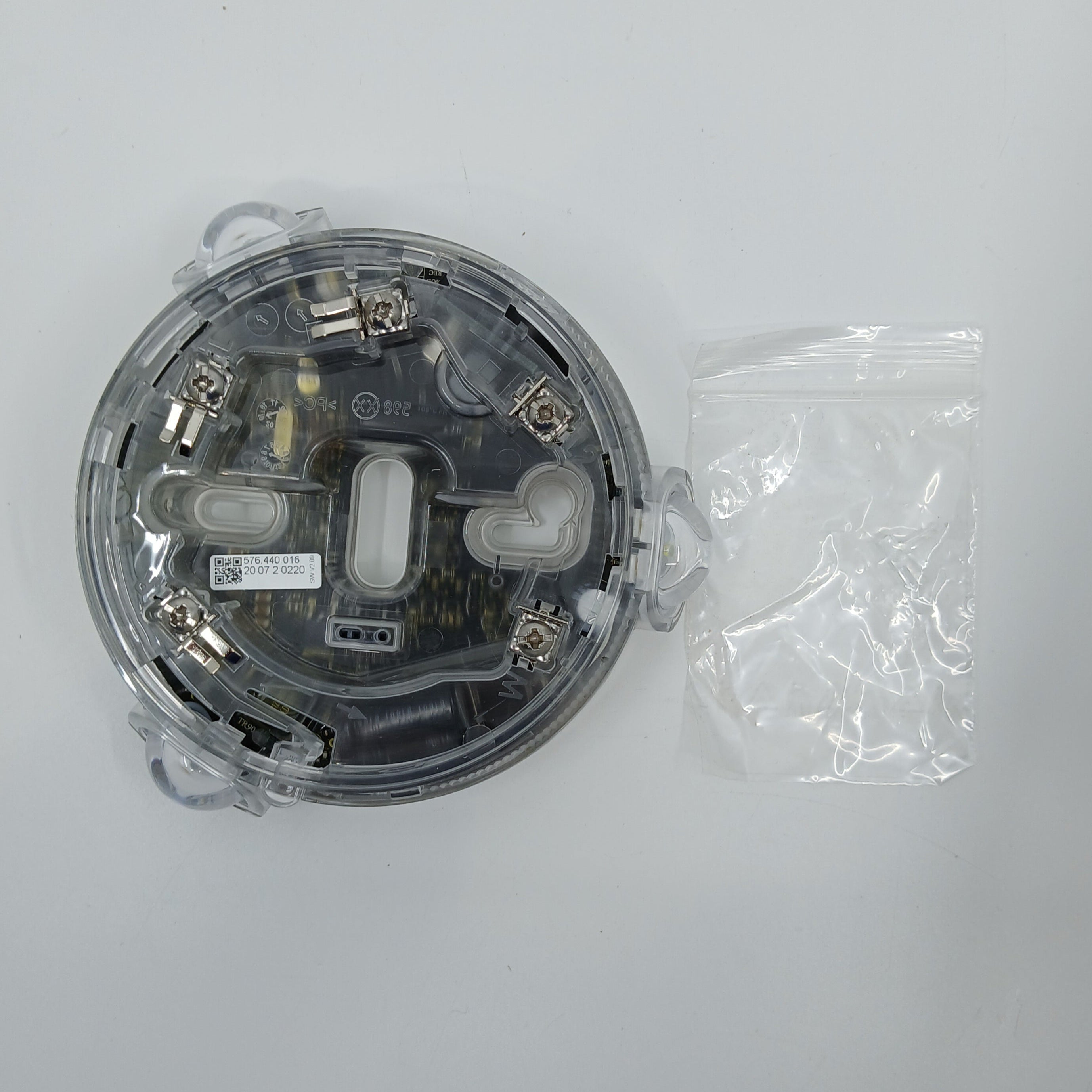

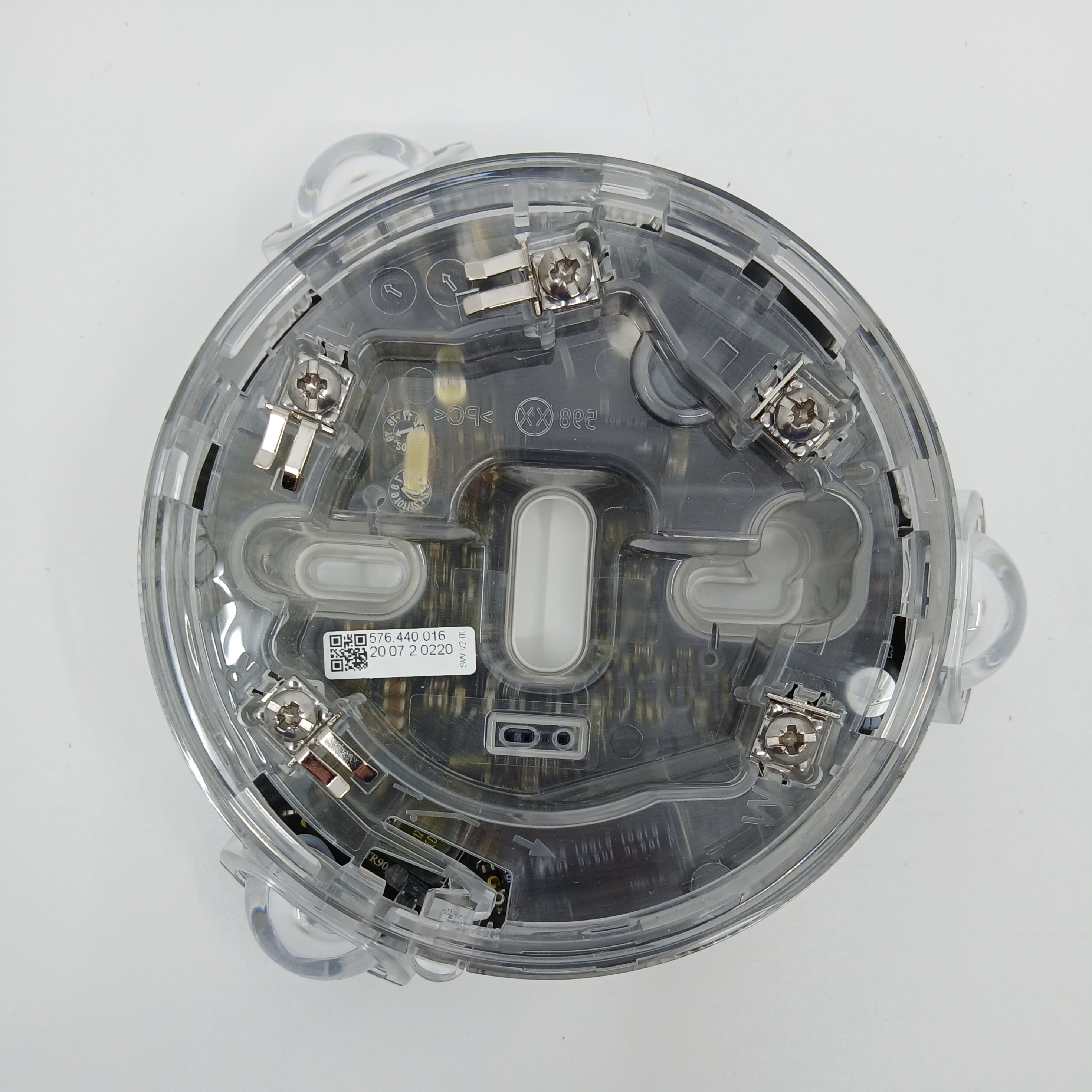

The FireClass FC440CAVB (576.440.016) is an addressable base sounder beacon VAD (visual alarm device) for FireClass addressable fire alarm systems. It is loop powered and driven from an addressable control panel, and as a ceiling-mounted base it provides a mounting for a fire detector (or a B-CAP blanking cap). Tones, volume, beacon flash and status monitoring are configurable from the control panel, and every unit has a built-in two-port loop short-circuit isolator.
Key features
- Combined sounder and EN 54-23 visual alarm device in a detector base
- Built-in two-port loop short-circuit isolator (EN 54-17)
- 15 selectable tones on the base variant, including Dutch Slow Whoop, BS 1 Hz sweep, Temporal 3/4 and conventional bell
- 4 sounder volume settings; white flash at 0.5 Hz or 1 Hz
- Default address 255; set before installation with the FC490ST service tool
- Compatible with the Ceiling Tile Adapter kit (517.050.060) using the CTA-AP adaptor plate (517.050.058)
Technical specifications
- Order number: 576.440.016
- Mounting: ceiling, indoor (type A)
- Approvals: EN 54-3, EN 54-17, EN 54-23; DoP-2017-4241 / 0832-CPR-F2244
- Beacon: white flash, open class O-1.8-6.2
- Typical sounder output at 1 m: 90 dBA (high), 80 dBA (mid-high), 70 dBA (mid-low), 60 dBA (low; the low setting does not meet EN 54-3 volume requirements)
- Loop voltage: 20–40 V, 35 V typical
- Current: 0.475 mA quiescent; 4.5 mA sounder only (high); 7.3 mA at 35 V with 0.5 Hz flash; 9.7 mA at 35 V with 1 Hz flash
- Isolator: max continuous current 1.1 A; trip threshold 18.5–19.99 V
- Housing: clear PC; weight 178 g
- Ingress protection: IP21C (detector or blanking cap fitted)
- Operating and storage temperature: -25°C to +70°C; humidity up to 95% non-condensing
