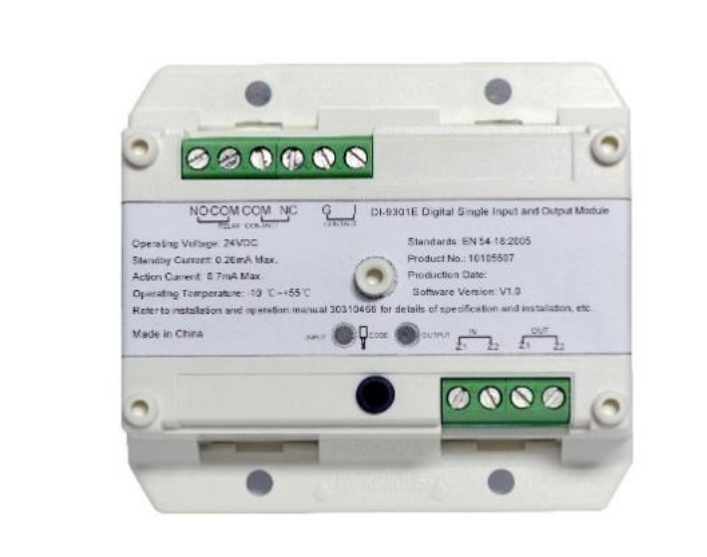

GST DI-9301E Addressable Single Input/Output Module

The GST DI-9301E is a digital single input/output module for GST addressable fire alarm systems. On command from the fire alarm control panel it switches a dry contact output (normally open and/or normally closed), and it can also receive a dry contact signal from field equipment and report it back over the loop. The input and output can monitor and control the same or different equipment.

Key features

• One relay output and one monitored input
• Input can work with the output or independently; N/O (default), N/C or self-confirm
• Single-address or two-address mode
• Electronically addressed; set in the field with the P-9910B handheld programmer
• Wall or 35mm DIN-rail mounting
• EN 54-18:2005; LPCB and CE certified; WEEE and RoHS compliant
• Compatible with GST200N series and GST-IFPx series panels

Technical specifications

• Operating voltage: loop 24V DC (16V to 28V DC), power limited
• Output capacity: 2A at 30V DC, normally open/closed
• Address range: 1 address (1 to 242) or 2 addresses (1 to 241)
• Recommended cabling: 1.0mm² to 2.0mm² twisted pair
• Operating temperature: -10°C to +55°C
• Protection: IP30
• Dimensions (L x W x H): 85.3 x 78 x 33mm
• Weight: approx. 66.5g
• Enclosure: white ABS (RAL 9016)
