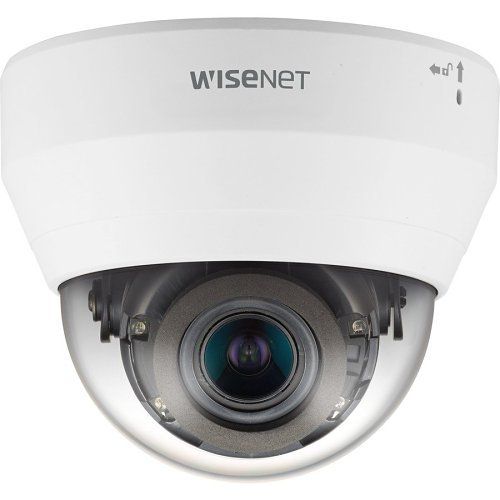

1/3-inch CMOS sensor with light sensitivity 0.1 lux in color and 0 lux in b/w (IR on), multi-stream support: compression: H.264/H.265/MJPEG, analysis: motion detection (4 zones), directional detection, virtual line crossing, zone exit/entry, tamper and defocus detection, 6-zone privacy masking, LDC (lens distortion correction), corridor view (90°/270°), optional micro SD(HC/XC) card slot up to 128 GB, alarm input and output: 1/1, audio with built-in microphone, white plastic housing (RAL9003)
Main Features
Max. 4MP resolution, Up to 30fps
Colour : 0.1Lux (F1.6, 1/30sec), B/W : 0Lux (IR LED On)
3.2 ~ 10mm (3.1x) motorised varifocal lens
IR viewable length: 20m (65.62ft)
Day & Night (ICR), WDR (120dB)
H.265, H.264, MJPEG, Multiple streaming supported
Motion detection, Tampering, Defocus detection
Hallway view (90°/270°), LDC support
Micro SD/SDHC/SDXC memory 1 slot (Max. 128GB)
Specifications
Connectivity Technology
Wired
Diameter
119.80mm
Effective Camera Resolution
4MP
Features
Alarm Triggering; Audio Compression; Auto Gain Control; Automatic White Balance; Back Light Compensation (BLC); Built-in IR LED; Built-in Mechanical ICR; Built-in Microphone; Day/Night; Digital Noise Reduction; Motion Detection; Privacy Masking; SD Card Local Storage; Tamper Detection; Wide Dynamic Range
Field of View
Diagonal; Horizontal; Vertical
Focal Length
3.2-10mm
Form Factor
Dome
Image Sensor Type
CMOS
Indoor/Outdoor
Indoor
Input Voltage
12V DC
Lens Type
Varifocal
Limited Warranty
5-Year
Maximum Aperture
f/1.6
Maximum Focal Length
10.00mm
Maximum Resolution
1280 x 720
Maximum Video Resolution
2560 x 1440
Minimum Aperture
f/2.9
Mount Type
Backbox Mount; Corner Mount; Flush Mount; In-ceiling Mount; Junction Box Mount; Parapet Mount; Pendant Mount; Pole Mount; Wall Mount
