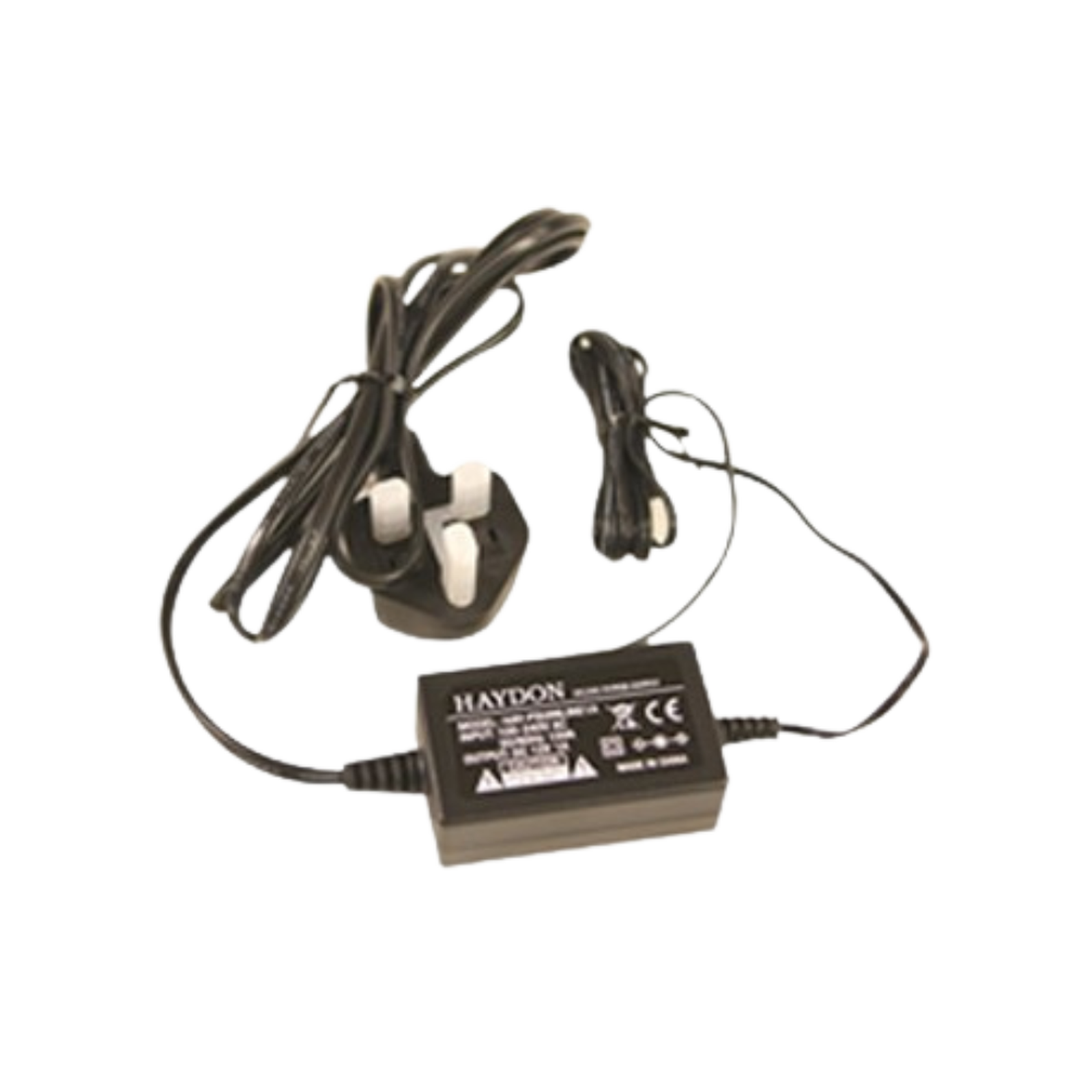

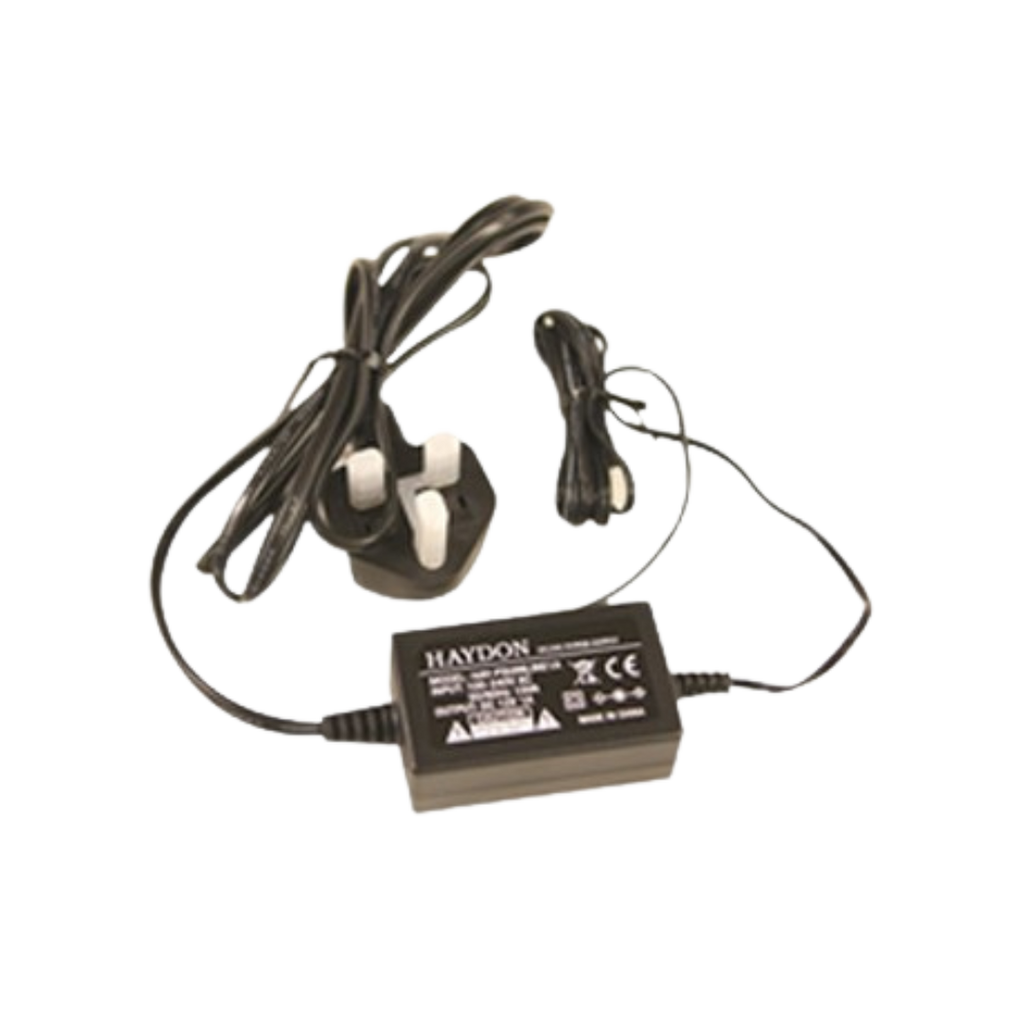

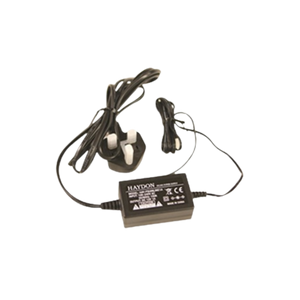

The Haydon HAY-PSUINLINE1A is a 12V DC 1A inline power supply with a UK mains plug, a 2.4 m output lead and a 2.1 mm DC socket, ideal for powering individual CCTV cameras and other 12V security devices.
Key features
- 12V DC output at up to 1A (12W)
- Universal 100–240V AC input
- UK plug with 2.4 m lead and 2.1 mm DC connector
- Overload protection
- UL, C-UL and CE safety approvals
Technical specifications
-
Model: HAY-PSUINLINE1A
-
Input: 100–240V AC, 50/60Hz
-
Output voltage: 12V DC ±4%
-
Output current: 1A
-
Rated output power: 12W
-
Ripple and noise: ≤200mV at rated load
-
Hold-up time: 30 ms at full load, 230V AC
-
Isolation: 3.0kV AC for 1 minute (input to output)
-
Operating temperature: 0°C to +50°C
-
MTBF: 50,000 hours at full load, 25°C
-
Size: 77.5 × 46 × 28 mm
-
Cable length: 2.4 m
