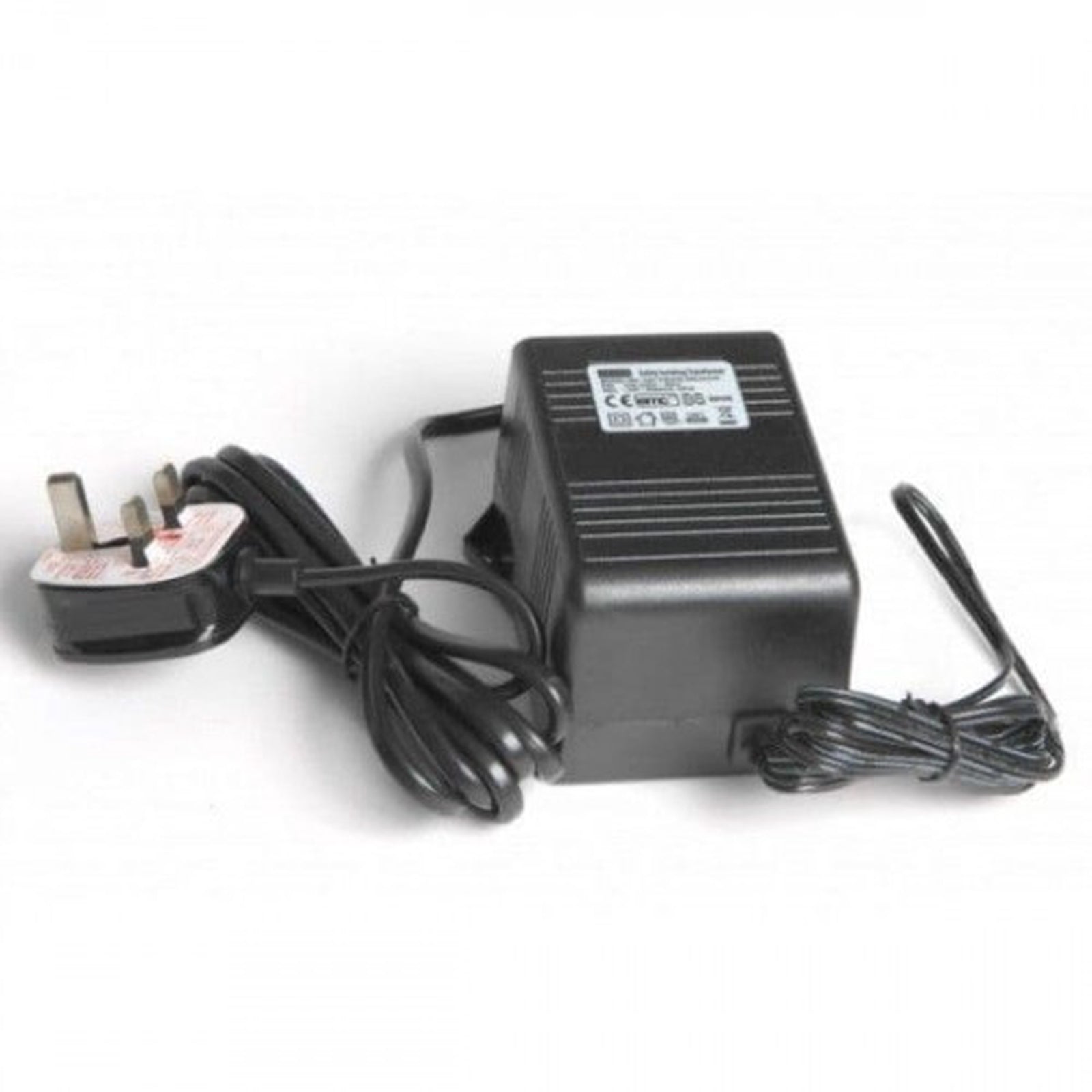

The Haydon HAY-PSUINLINE2A24 is a 24V AC 2A inline power supply with a UK mains plug, intended for powering CCTV equipment that requires a 24V AC supply.
Key features
- 24V AC output at up to 2A (48VA)
- Plug-in inline design with UK mains plug
- Fixed output voltage
- Tested to BS EN61558-1/-2-6
Technical specifications
-
Model: HAY-PSUINLINE2A24
-
Input: 240V AC, 50Hz
-
Output voltage: 24V AC ±5%
-
Output current: 2A
-
Rated output power: 48VA
-
Efficiency: ≥70%
-
Insulation class: B (130°C)
-
Protection class: IP20
-
Operating temperature: −10°C to +40°C
-
Size: 105 × 92.5 × 65 mm
-
Cable length: 3.8 m
