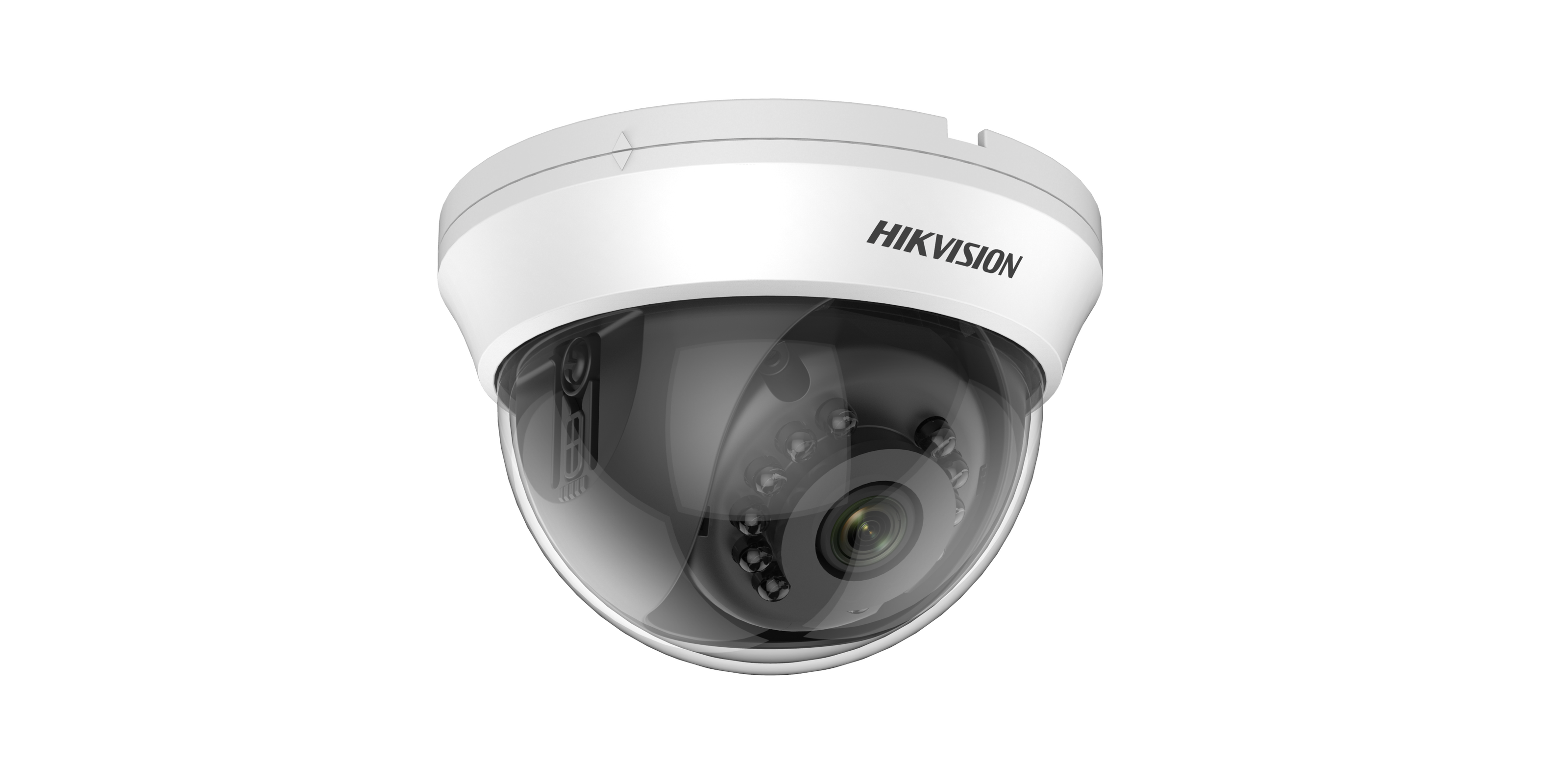

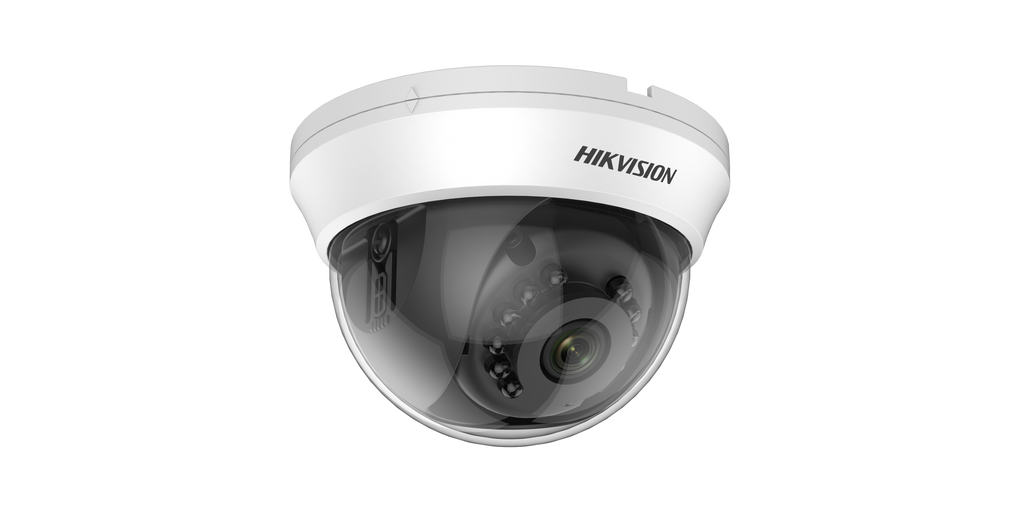

The Hikvision DS-2CE56D0T-IRMMF(C) is a 2 MP indoor fixed dome camera for analogue HD CCTV systems. This version has a 2.8 mm lens. It has a switchable 4-in-1 output (TVI/AHD/CVI/CVBS), so it works with TVI, AHD, CVI or CVBS recorders, and Smart IR gives up to 20 m of night-time viewing.
Key features
- 2 MP CMOS sensor, 1920 × 1080 resolution
- 2.8 mm fixed lens with a wide 101° horizontal field of view
- Switchable TVI/AHD/CVI/CVBS video output
- Smart IR, up to 20 m IR range
- Day/night ICR with Auto/Colour/Black and white modes
- Digital WDR, BLC and HLC
- Lightweight plastic housing with 3-axis adjustment
Technical specifications
- Image sensor: 2 MP CMOS
- Max. resolution: 1920 (H) × 1080 (V)
- Min. illumination: 0.01 lux @ (F2.0, AGC on), 0 lux with IR
- Shutter time: PAL 1/25 s to 1/50,000 s; NTSC 1/30 s to 1/50,000 s
- Lens: 2.8 mm fixed, M12 mount
- Field of view (2.8 mm): 101° horizontal, 60° vertical, 122° diagonal
- Frame rate: TVI/CVI/AHD 1080P@25/30fps; CVBS PAL/NTSC
- Angle adjustment: pan 0 to 360°, tilt 0 to 70°, rotation 0 to 360°
- IR range: up to 20 m
- Communication: HIKVISION-C
- Power supply: 12 VDC ± 25%
- Power consumption: max. 1.8 W
- Operating conditions: -40 °C to 60 °C, humidity 90% or less (non-condensing)
- Material: plastic
- Dimensions: Ø98 × 65.4 mm
- Weight: approx. 146 g
