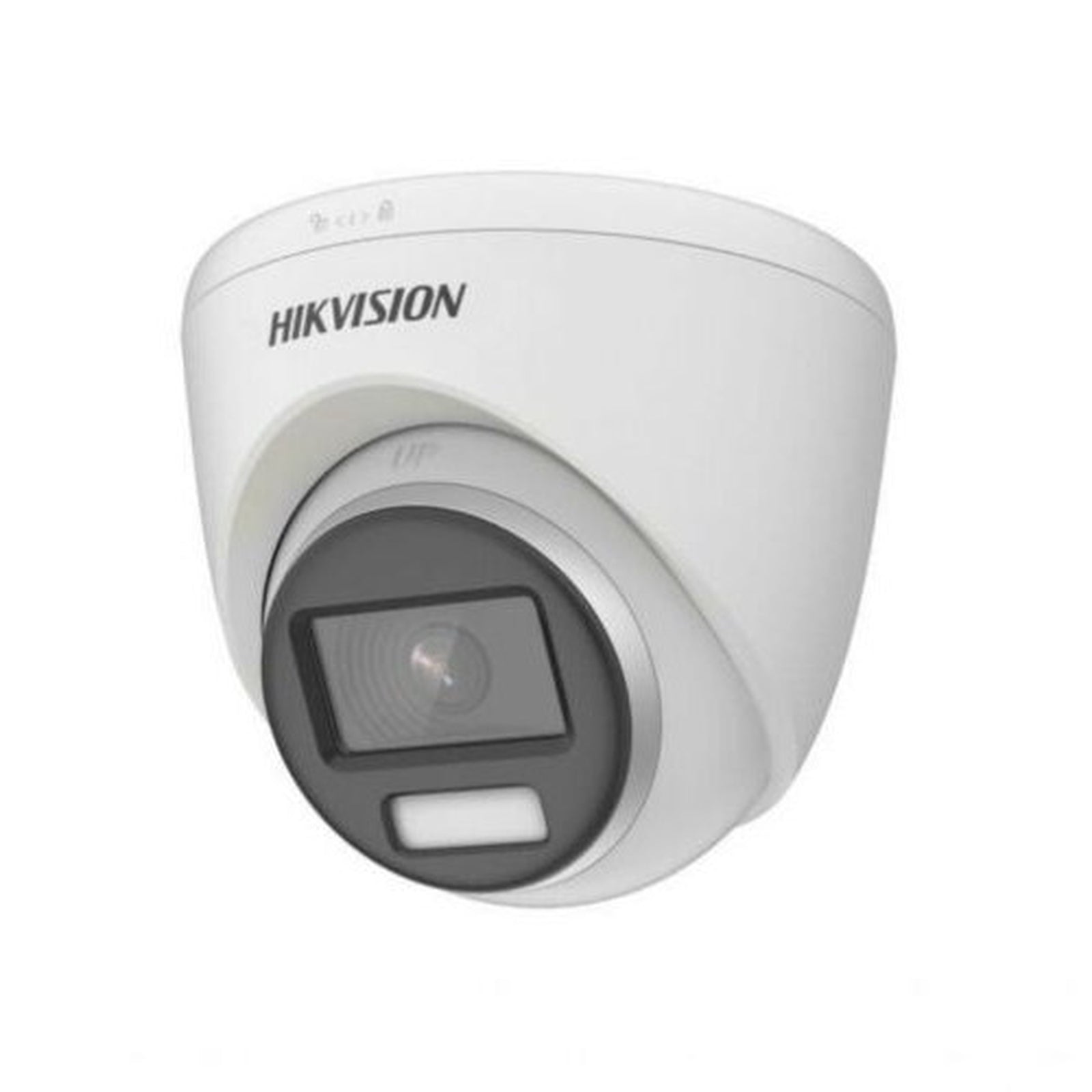

Hikvision DS-2CE72UF3T-E - 4K ColorVu PoC Fixed Turret Camera
The Hikvision DS-2CE72UF3T-E is a 4K ColorVu PoC Fixed Turret Camera from the Turbo HD ColorVu range. High quality imaging with 8 MP, 3840 × 2160 resolution. 24/7 colour imaging. Clear imaging against strong back light due to 130 dB true WDR technology.
Key features
- High quality imaging with 8 MP, 3840 × 2160 resolution
- 24/7 colour imaging
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm fixed focal lens
- Up to 40 m white light distance for bright night imaging
- Water and dust resistant (IP67)
Technical specification
| Image Sensor |
8 MP CMOS |
| Signal System |
PAL/NTSC |
| Resolution |
3840 (H) × 2160 (V) |
| Frame Rate |
TVI: 8 MP @ 12.5 fps/15 fps, 3K @ 20 fps, 1080P @ 25 fps/30 fps |
| Min. Illumination |
0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light |
| Shutter Time |
PAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s |
| Lens |
2.8 mm, 3.6 mm fixed focal lens |
| Field of View |
2.8 mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 131° | 3.6 mm, horizontal FOV: 93°, vertical FOV: 48°, diagonal FOV: 113° |
| Lens Mount |
M16 |
| Light Alarm |
Solid Light Alarm (White Light) |
| Day & Night |
24/7 Colour Imaging |
| WDR (Wide Dynamic Range) |
≥130 dB |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360° |
| White Light |
Auto/Off |
| Image Mode |
STD/HIGH-SAT/HIGHLIGHT |
| AGC |
Yes |
| Day/Night Mode |
Colour |
| White Balance |
Auto/Manual |
| AE (Auto Exposure) Mode |
WDR;BLC;HLC;Global;HLS |
| Privacy Mask |
4 programmable privacy masks |
| Motion Detection |
4 programmable motion areas |
| Noise Reduction |
3D DNR/2D DNR |
| Language |
English |
| Function |
Sharpness;Mirror;Brightness;Anti-Banding;Smart Light;Contrast |
| Video Output |
1 HD analogue output |
| Operating Conditions |
-40°C to 50°C (-40°F to 130°F), Humidity: 90% or less (non-condensing) |
| Power Supply |
12 VDC ± 25%/PoC.at | *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply. |
| Consumption |
Max. 5.1 W |
| Protection Level |
IP67 |
| Material |
Main body: Metal, Enclosure: Plastic |
| White Light Range |
Up to 40 m |
| Communication |
HIKVISION-C |
| Dimension |
194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93") |
| Weight |
Approx. 350 g (0.77 lb.) |
