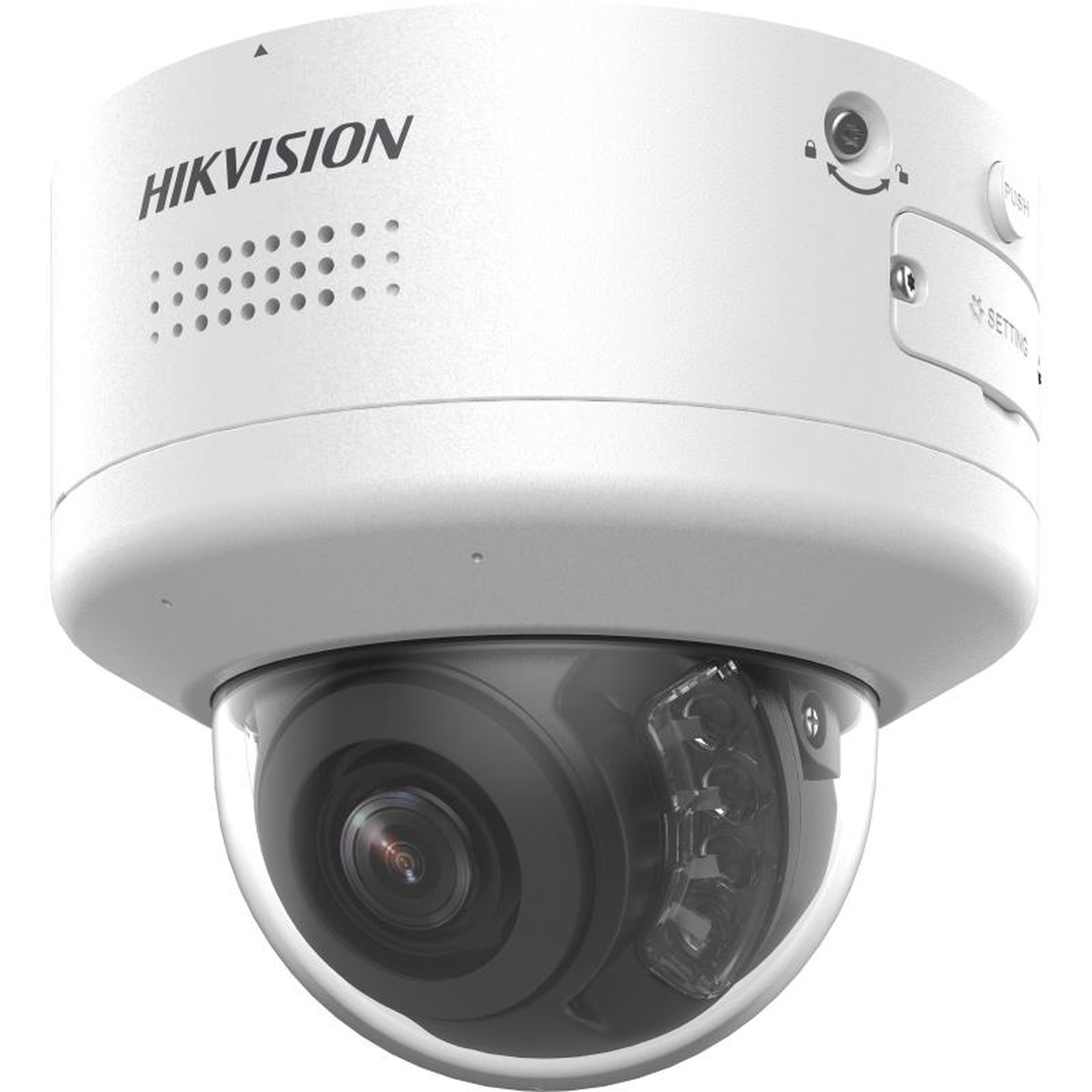

Hikvision DS-2CD2746G2H-IPTRZS2U/SL(2.8-12mm) 4MP AcuSense PTRZ Varifocal Dome Network Camera

SKU: DS-2CD2746G2H-IPTRZS2U/SL(2.8-12mm)Brand: Hikvision
4.6store rating from 122 reviews
Stock available Qty Delivery
Poole0None in Poole
UK Hub781 to 3 working days
Need help choosing? Our UK team can check compatibility, stock and project pricing for you. 0117 440 4505info@jemsystems.co.uk
Price:
Sale price$345.00
414.00 inc. VAT345.00 ex VAT
Stock:
In stock (78 units)
Delivery
1 to 3 working days
Ships from our UK supplier hub
Collect in Poole
Not stocked in Poole
Delivery only
Hikvision DS-2CD2746G2H-IPTRZS2U/SL(2.8-12mm) 4MP AcuSense PTRZ Varifocal Dome Network Camera $345.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
American Express Apple Pay Google Pay KlarnaMaestroMastercard PayPalShop Pay Visa
Key featuresFull details
  • Motorized Pan, Tilt, Rotate, Zoom for easy installation and monitoring
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Human and vehicle classification based on deep learning
  • Water and dust resistant (IP66) and vandal resistant (IK10)
  • Audio and alarm interface available

Product details

The Hikvision DS-2CD2746G2H-IPTRZS2U/SL(RB) is a 4 MP AcuSense PTRZ Varifocal Dome Network Camera from the IP range. Motorized Pan, Tilt, Rotate, Zoom for easy installation and monitoring. Excellent low-light performance via powered-by-DarkFighter technology. Clear imaging against strong back light due to 120 dB WDR technology.

Key features

  • Motorized Pan, Tilt, Rotate, Zoom for easy installation and monitoring
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Clear imaging against strong back light due to 120 dB WDR technology
  • Human and vehicle classification based on deep learning
  • Water and dust resistant (IP66) and vandal resistant (IK10)
  • Audio and alarm interface available
  • Built-in arrayed dual-microphone for real-time high quality audio security
  • Active strobe light and audio alarm to warn intruders off (-SL)

Technical specification

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Colour: 0.0008 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Remote adjustment (Max. 1000 cycles) | Pan: 0° to 350°, tilt: 0° to 85°, rotate: 0° to 350°
Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3°to 23.6°, diagonal FOV 141.3°to 48.1°
Lens Mount Integrated
Iris Type Fixed
Aperture Max. F1.2
Depth of Field 1 m to ∞
DORI Wide: D: 61.5 m, O: 24.4 m, R:12.3 m, I: 6.2 m | Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I:15.1 m
Supplement Light Type IR
Supplement Light Range Up to 40 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: | 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: | 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: | 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: | 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: | 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: | 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | *Third stream is supported under certain settings.
Video Compression Main stream: H.265/H.264/H.264+/H.265+, | Sub-stream: H.265/H.264/MJPEG, | Third stream: H.265/H.264, | *Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Simultaneous Live View Up to 6 channels
API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host Up to 32 users | 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 11, | Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, | Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC,3D DNR
SNR ≥ 52 dB
Wide Dynamic Range (WDR) 120 dB
Privacy Mask 4 programmable polygon privacy masks
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Speaker 1 built-in speaker, Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
Audio Built-in Microphone: Arrayed dual-microphone, | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, | 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key Yes
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event scene change detection
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing
Face Capture Yes
Perimeter Protection Line crossing, intrusion, region entrance, region exiting | Support alarm triggering by specified target types (human and vehicle)
Power 12 VDC ± 25%, 1.35 A, max. 16 W, reverse polarity protection, two-core terminal block, | PoE: IEEE 802.3at, Class 4, max. 18 W
Material Metal
Dimension Ø155 mm × 140.4 mm (Ø6.10" × 5.53")
Package Dimension 203 mm × 203 mm × 230 mm (8.0" × 8.0" × 9.1")
Weight Approx. 840 g (1.9 lb.)
With Package Weight Approx. 1450 g (3.2 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function Heartbeat, mirror, password reset via email, pixel counter, anti-banding, flash log
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Flashing Light White Light
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, | IC: ICES-003: Issue 7, | RCM: AS/NZS CISPR 32: 2015
Safety | CB: IEC 62368-1: 2014+A11, | CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, | WEEE: 2012/19/EU, | Reach: Regulation (EC) No 1907/2006
Protection IK10: IEC 62262:2002, IP66: IEC 60529-2013

Downloads

Datasheets & documents

No datasheet is online for this product yet. Ask us and we will email it to you.
