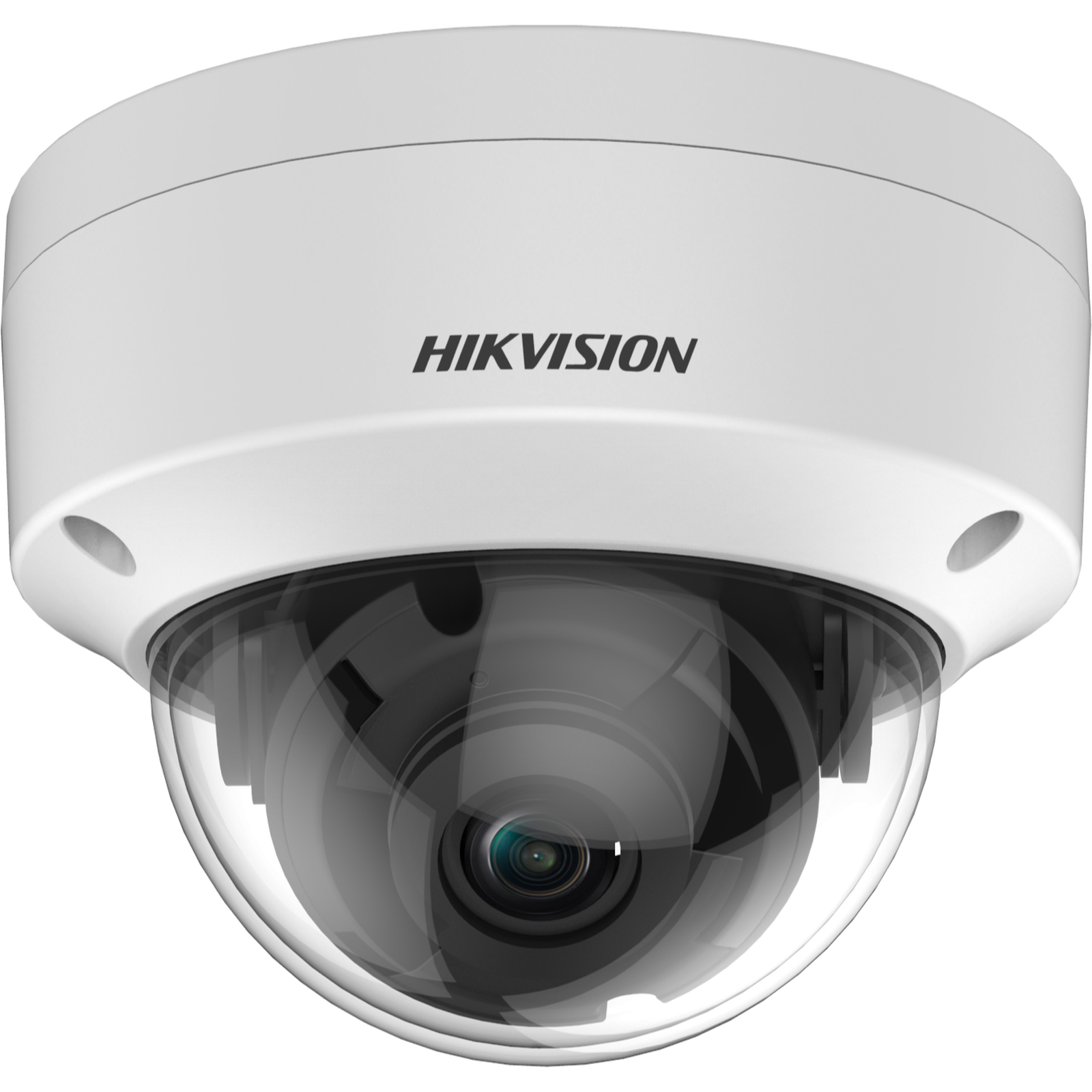

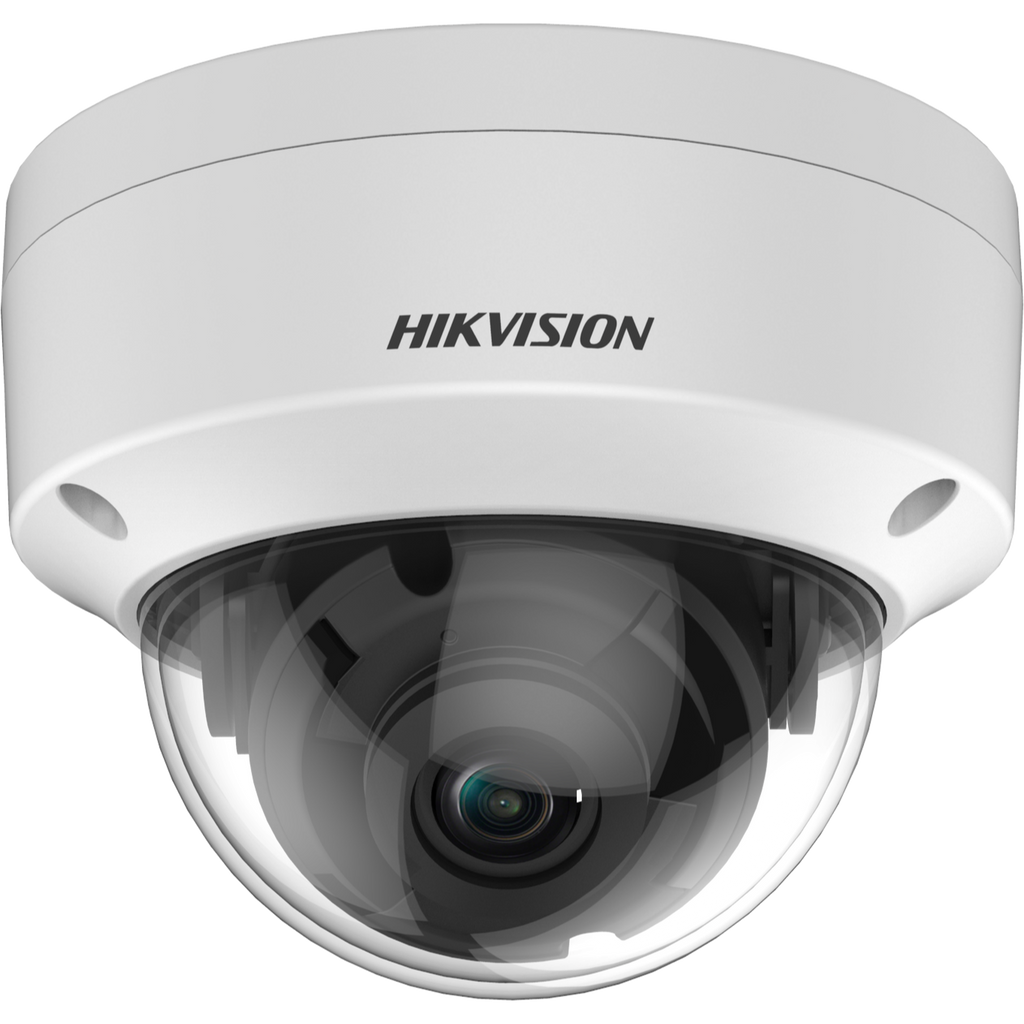

Hikvision DS-2CE57H0T-VPITE(C) - 5 MP Vandal PoC Fixed Dome Camera
The Hikvision DS-2CE57H0T-VPITE(C) is a 5MP Turbo HD PoC dome camera (power over coax) with a vandal resistant IK10 housing. This listing is the 2.8mm lens version.
The Hikvision DS-2CE57H0T-VPITE(C) is a 5 MP Vandal PoC Fixed Dome Camera from the Turbo HD Value range. High quality imaging with 5 MP, 2560 × 1944 resolution. 2.8 mm and 3.6 mm fixed focal lens. Up to 20 m IR distance for bright night imaging.
Key features
- High quality imaging with 5 MP, 2560 × 1944 resolution
- 2.8 mm and 3.6 mm fixed focal lens
- Up to 20 m IR distance for bright night imaging
- Water and dust resistant (IP67) and vandal resistant (IK10)
Technical specification
| Image Sensor |
5 MP CMOS |
| Max. Resolution |
2560 (H) × 1944 (V) |
| Min. Illumination |
0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR |
| Shutter Time |
PAL: 1/25 s to 1/50, 000 s | NTSC: 1/30 s to 1/50, 000 s |
| Day & Night |
ICR |
| Angle Adjustment |
Pan: 0 to 355°, Tilt: 0 to 75°, Rotation 0 to 355° |
| Signal System |
PAL/NTSC |
| Lens Type |
2.8 mm and 3.6 mm fixed focal lens |
| Focal Length & FOV |
2.8 mm, horizontal FOV: 93°, vertical FOV: 75°, diagonal FOV: 124° | 3.6 mm, horizontal FOV: 77°, vertical FOV: 57°, diagonal FOV: 103° |
| Lens Mount |
M12 |
| Image Parameters Switch |
STD/HIGH-SAT |
| Image Settings |
Brightness, Sharpness, Smart IR |
| Frame Rate |
5 M @ 20 fps, 4 M @ 30 fps, 4 M @ 25 fps, 1080P @ 30 fps, 1080P @ 25 fps |
| Day/Night Mode |
Auto/Colour/BW (Black and White) |
| Wide Dynamic Range (WDR) |
Digital WDR |
| Image Enhancement |
DWDR, BLC, HLC, Global |
| Noise Reduction |
2D DNR |
| White Balance |
Auto/Manual |
| AGC |
Yes |
| Video Output |
1 HD analogue output |
| Material |
Metal |
| Dimension |
82.4 mm × Ø111 mm (3.2" × Ø4.4") |
| Weight |
Approx. 440 g (0.97 lb.) |
| Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
| Communication |
HIKVISION-C |
| Language |
English |
| Power Supply |
12 VDC ±25%/PoC.af | *You are recommended to use one power adapter to supply the power for one camera. |
| Consumption |
Max. 2.6 W | |
| IR Range |
Up to 20 m |
| Protection |
IP67, IK10 |
Downloads
Used for: analogue HD CCTV upgrades where existing coax cabling is reused, in shops, offices and residential blocks.
Frequently Asked Questions
What lens does this listing have?
This is the 2.8 mm fixed focal lens version (the camera range is also available with 3.6 mm).
What is the resolution?
5 MP, 2560 × 1944, with up to 20 m IR distance for night imaging.
Is it vandal and weather resistant?
Yes. It is water and dust resistant (IP67) and vandal resistant (IK10).
