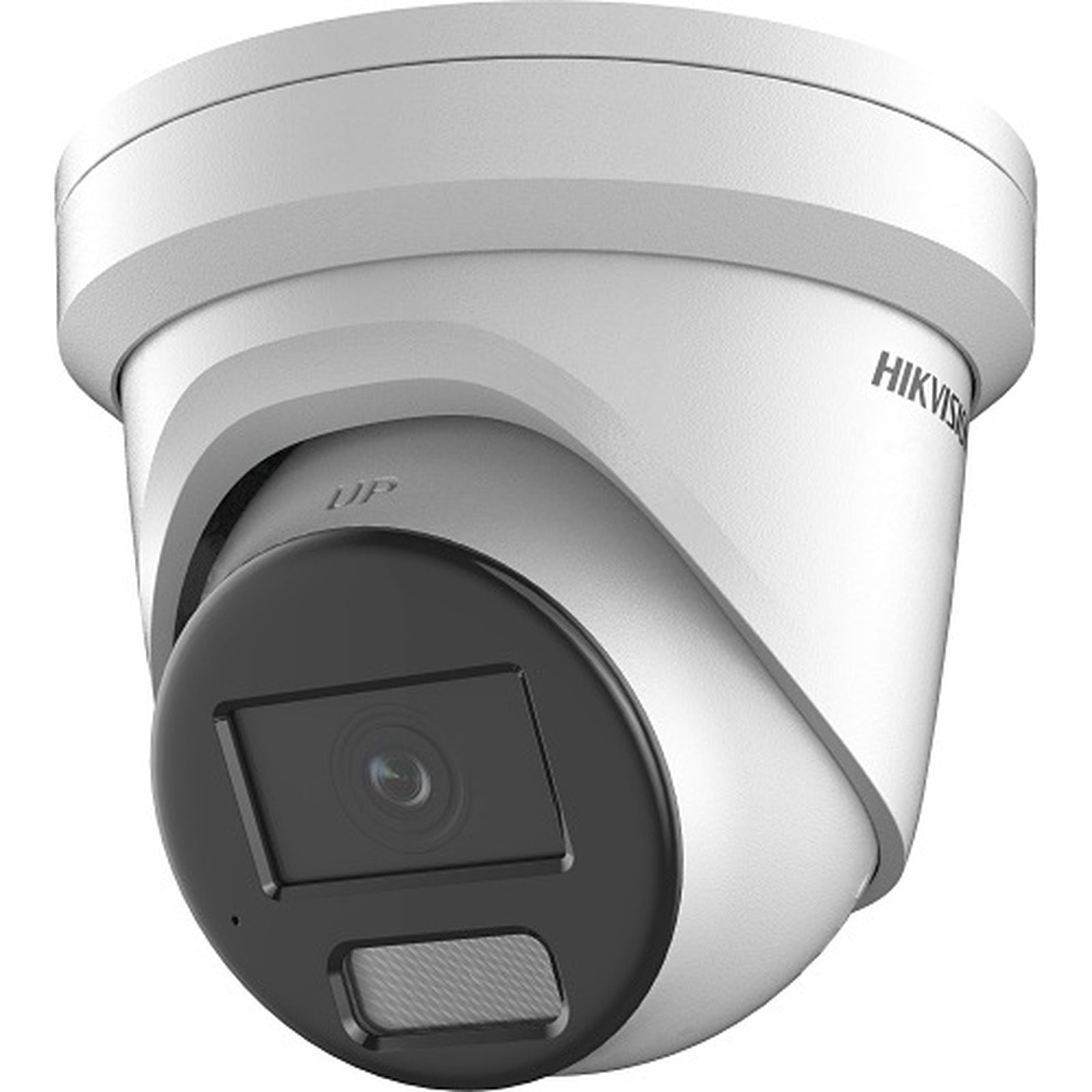

Hikvision DS-2CD2366G2H-IU(2.8mm) 6MP Powered by Darkfighter Fixed Turret Network Camera
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 1 | Same day dispatch |
| UK Hub | 288 | 1 to 3 working days |
- High quality imaging with 6 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle classification based on deep learning
- -U: Built-in microphone for real-time audio security
Frequently bought together



Product details
The Hikvision DS-2CD2366G2H-IU is a 6MP AcuSense turret IP camera powered by DarkFighter for excellent low-light images, with a built-in microphone and 2.8mm lens.
The Hikvision DS-2CD2366G2H-I(U) is a 6 MP Powered by Darkfighter Fixed Turret Network Camera from the IP range. High quality imaging with 6 MP resolution. Excellent low-light performance with powered-by-DarkFighter technology. Clear imaging against strong backlight due to 120 dB true WDR technology.
Key features
- High quality imaging with 6 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Clear imaging against strong backlight due to 120 dB true WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle classification based on deep learning
- -U: Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
Technical specification
| Image Sensor | 1/2.4" Progressive Scan CMOS |
|---|---|
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Colour: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 114.8°, vertical FOV 60°, diagonal FOV 143.5° | 4 mm, horizontal FOV 94°, vertical FOV 50.2°, diagonal FOV 112° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.0 |
| Depth of Field | 2.8 mm: 1.7 m to ∞ | 4 mm: 2.2 m to ∞ |
| DORI | 2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m | 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m |
| Supplement Light Type | IR |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
| Main Stream | 50 Hz: | 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: | 24 fps (3200 × 1800) | 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+, | Sub-stream: H.265/H.264/MJPEG, | Third stream: H.265/H.264, | *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio Compression | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bit Rate | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Audio Sampling Rate | -U: 8 kHz/16 kHz/32 kHz/48 kHz |
| Environment Noise Filtering | -U: Yes |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users | 3 user levels: administrator, operator, and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, | Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, | Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC,3D DNR |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | 120 dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Built-in Microphone | -U: Yes |
| Reset Key | Yes |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email |
| Smart Event | | Scene change detection |
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting | Support alarm triggering by specified target types (human and vehicle) |
| Power | 12 VDC ± 25%, 0.54 A, max. 6.5 W,Ø5.5 mm coaxial power plug, reverse polarity protection, | PoE: IEEE 802.3af, Class 3, max. 8 W |
| Material | | Cover: Metal, main body: Metal |
| Dimension | Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") |
| Package Dimension | 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") |
| Weight | Approx. 770 g (1.7 lb.) |
| With Package Weight | Approx. 1040 g (2.3 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, mirror, password reset via email, pixel counter, anti-banding |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| EMC | | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, | RCM: AS/NZS CISPR 32: 2015, | IC: ICES-003: Issue 7, | KC: KN32: 2015, KN35: 2015 |
| Safety | | CB: IEC 62368-1: 2014+A11, | CE-LVD: EN 62368-1: 2014/A11: 2017, | LOA: IEC/EN 60950-1 |
| Environment | CE-RoHS: 2011/65/EU, | WEEE: 2012/19/EU, | Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
Downloads
- DS-2CD2366G2H-I(U) Data Sheet (PDF)
- DS-2CD2366G2H-I(U) Quick Start Guide (PDF)
- DS-2CD2366G2H-I(U) User Manual (PDF)
Used for: commercial and residential IP CCTV systems needing clear images in low light and against strong backlight.
Frequently asked questions
How is the DS-2CD2366G2H-IU powered?
By 12V DC (max 6.5W) or PoE to IEEE 802.3af, Class 3 (max 8W).
What is the night vision range?
The IR supplement light range is up to 30m, with colour imaging down to 0.001 Lux.
Does the camera record audio?
Yes, the -U version has a built-in microphone.
