Hikvision DS-3E1510P-EI 8-Port Gigabit Smart PoE Switch, 2 x RJ45 Uplink, 110W

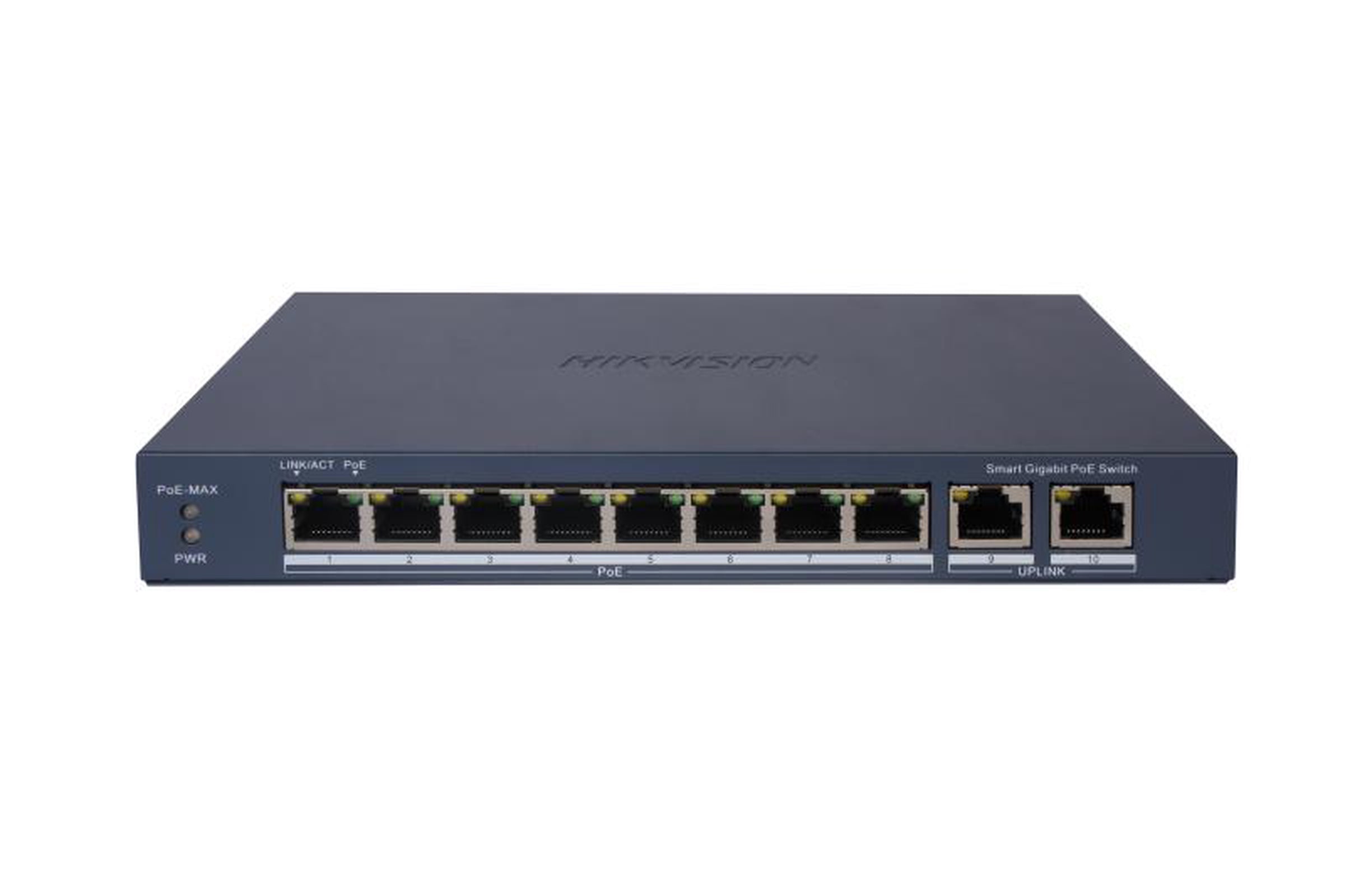

Hikvision DS-3E1510P-EI - 8 Port Gigabit Smart POE Switch

The Hikvision DS-3E1510P-EI is an 8 Port Gigabit Smart POE Switch from the smart managed range. 8 × Gigabit PoE port,2 × Gigabit RJ45 port. Total PoE Power Budget 110 W. Support 802.1Q VLAN.

Key features

• 8 × Gigabit PoE port,2 × Gigabit RJ45 port
• Total PoE Power Budget 110 W
• Support 802.1Q VLAN
• Support PoE watchdog to detect and restart the cameras that do not respond
• Support STP/RSTP loop prevention
• Support cable detection to locate failure
• Up to 300 m Long Range PoE Transmission
• 6 kV Surge Protection

Technical specification

Dimensions (W × H × D)	217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'')
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Installation Mode	Desk-Mounted, Wall-Mounted
Gross Weight	1.27 kg (2.8 lb)
Net Weight	0.54 kg (1.19 lb)
Power Consumption in Idle	2.7 W
Shell	Metal material
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity	5% to 95% (no condensation)
Power Supply	54VDC, 2.22A
Max. Power Consumption	120 W
Relative Humidity	5% to 95% (no condensation)
Surge Protection	6 kV
Ports	8 × Gigabit PoE port,2 × Gigabit RJ45 port
MAC Address Table	4 K
Switching Capacity	20 Gbps
Packet Forwarding Rate	14.88 Mpps
Internal Cache	1.5 Mbits
Long Range	Ports 1 to 8: up to 300 m. | Long range performance may vary depend on camera model or cable condition.
Port Isolation	Ports 1 to 8: port isolation mode to improve network security | Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 8: auto detect and restart the cameras that do not respond.
Link Aggregation	Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. | Support static link aggregation. | Support 3 aggregation groups.
Loop Prevention	Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. | Support 802.1D STP. | Support 802.1w RSTP.
VLAN	VLAN is used for network scale planning and network health improvement. | Support 802.1Q. | Configurable VLAN ID from 1-4094. | Support Trunk, Access port mode. | Support Max. 32 VLAN.
HPP	Support one-click activation and remote management via Hik-Partner Pro. Functions supported: | 1. Display the port rate. | 2. Display the port bandwidth utilization rate. | 3. Display the PoE power usage. | 4. Display topology information. | 5. Display the alarm status. | 6. Restart ports and devices. | 7. Enable port long-rage mode. | 8. Remotely upgrade the device.
System Maintenance	Support device management via web. | Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. | Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. | Support management via Hik-Central Pro. | Support remote management via Hik-Partner Pro. | Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. | Support 802.1ab LLDP for peer device discovery. | Support port mirroring for fault locating.
PoE Standard	IEEE 802.3af, IEEE 802.3at
PoE Power Pin	End-span: 1/2(-), 3/6(+)
PoE Port	PoE: Ports 1 to 8
Max. Port Power	30 W
PoE Power Budget	110 W
EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Safety	CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)
Chemistry	CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)
