Hikvision DS-3T0506HP-E/HS Pro Series 4-Port Unmanaged Harsh PoE Switch
SKU: DS-3T0506HP-E/HSBrand: Hikvision
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 26 | 1 to 3 working days |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Hikvision DS-3T0506HP-E/HS Pro Series 4-Port Unmanaged Harsh PoE Switch
£63.60
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports.
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30W PoE output).
Frequently bought together
Hikvision
Hikvision DS-3WR3X-1 Wi-Fi 6 Wireless Nano USB Adapter
Sale price£5.20
Out of stock. Lead time 3 to 16 weeks, estimate only
Hikvision
Hikvision DS-4604ZJ-PAAC Wall Mount Accessory, Aluminum Alloy
Sale price£57.65
Out of stock. Lead time 3 to 16 weeks, estimate only
Hikvision
Hikvision DS-6901UDI(C)(STD) 16-Channel 4K Video Decoder with HDMI, VGA and BNC Outputs
Sale price£491.25
In stock
Hikvision
Hikvision DS-7608NXI-K1/8P(D) 8 Channel PoE 1U K Series AcuSense 4K NVR
Sale price£193.70
In stockProduct details

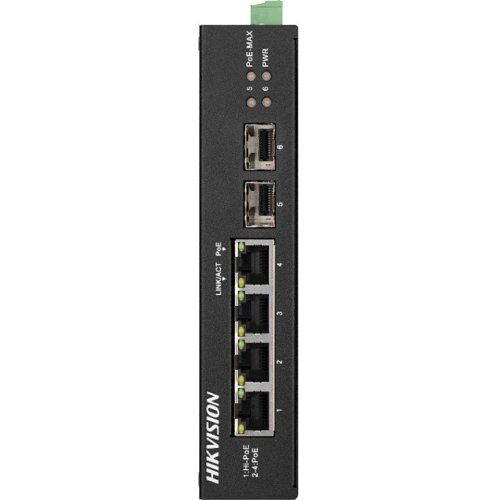

DS-3T0506HP-E/HS switches are layer 2 Hi-PoE switches, providing advanced PoE power supply technology and wider temperature (-30 to 65 °C) design on the basis of high-performance access to ensure stable data upload. The switches support Hi-PoE, long range, port isolation, and PoE watchdog function.
Main Features
- 3 × gigabit PoE ports, 1 × gigabit Hi-PoE port, 2 × gigabit SFP fiber optical ports.
- IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60W PoE output).
- IEEE 802.3at/af standard for PoE ports (Max. 30W PoE output).
Specifications
| Depth | 31.60mm |
|---|---|
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
| Height | 101.20mm |
| Input Voltage | 57V DC |
| Length | 158.00mm |
| Limited Warranty | 3-Year |
| Material | Metal |
| Media Type Supported | Optical Fiber; Twisted Pair |
| Mount Type | Desktop Mount; Wall Mount |
| NDAA Compliant | No |
| Network (RJ-45) | Yes |
| Network Switch Type | Unmanaged |
| Network Technology | 1000Base-T; 100Base-TX; 10Base-T |
| Number of SFP Slots | 2 |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 60W |
| Power Consumption | 5.0000W |
| Power Source | AC Power |
| Product Line | Pro Series |
| Product Series | Unmanaged PoE L2 Series |
| Product Type | Ethernet Switch |
| TAA Compliant | No |
| Total Number of Network Ports | 4 |
| Width | 158.00mm |
| Colour | White |
| Expansion Slot Type | SFP |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer | Hikvision |
| Modular | Yes |
| Networking Standards | IEEE 802.3af; IEEE 802.3at |
| Number of SFP Slots | 2 |
| Number of Total Expansion Slots | 2 |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
