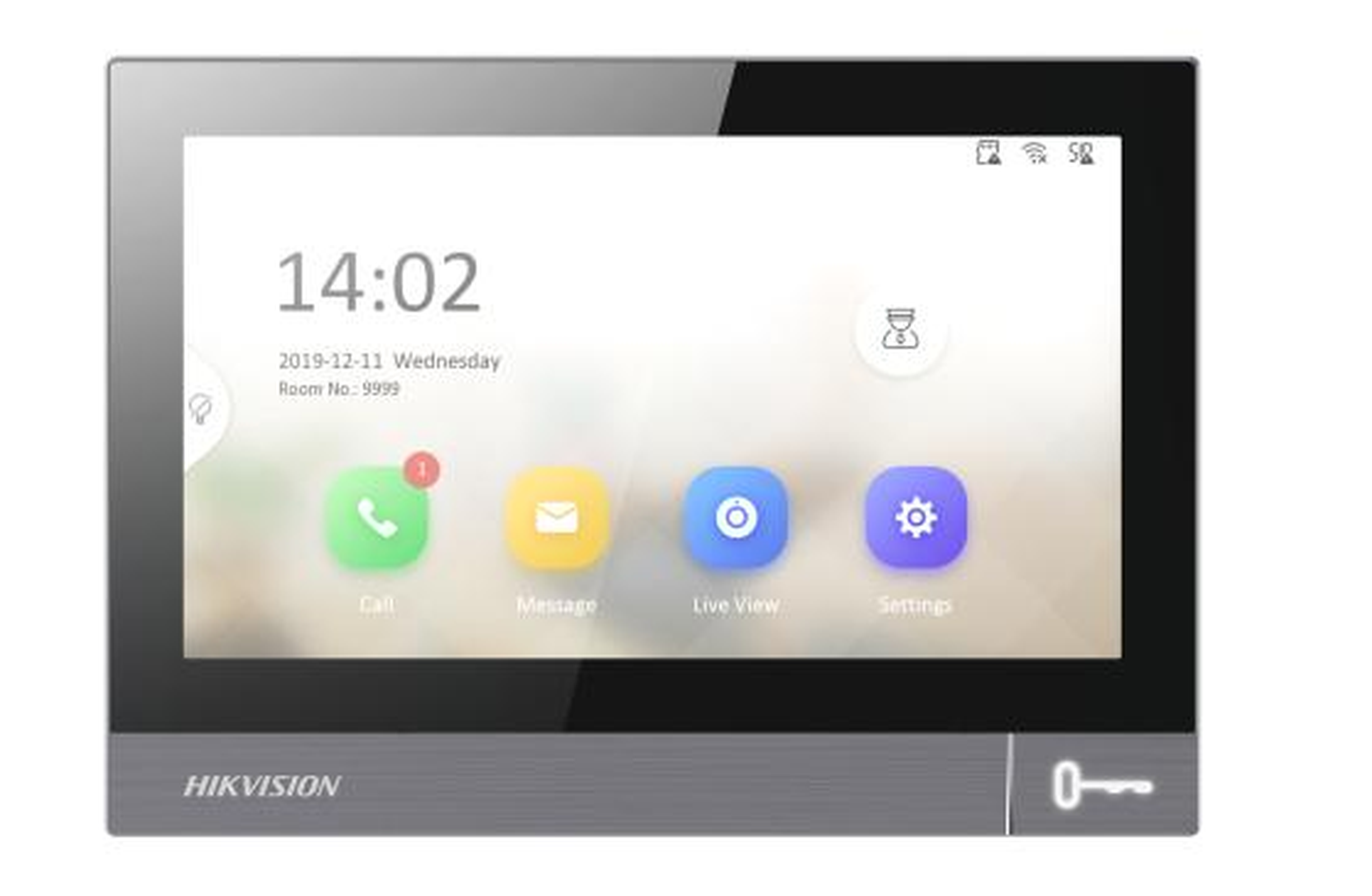

Hikvision DS-KH8381-WTE1 - 8 Series Indoor Station
The Hikvision DS-KH8381-WTE1 is a 7-inch video intercom indoor station for IP door entry systems, letting residents see visitors, talk and open the door from the screen or the Hik-Connect app.
The Hikvision DS-KH8381-WTE1 is an 8 Series Indoor Station from the Video Intercom IP Pro range. 7-inch IPS touch screen with 1024 × 600 resolution. Excellent metal appearance design. One physical button design for easier open the door.
Key features
- 7-inch IPS touch screen with 1024 × 600 resolution
- Excellent metal appearance design
- One physical button design for easier open the door
- Convenient Hik-Connect APP Mobile Control
- Receive calls, open the door and live view remotely
- Standard IEEE802.3at PoE power supply and power the lock
- Supports up to 16 indoor extensions linkage
- Elevator access control
- Supports surface and flush mounting
- Rich interfaces: alarm in, RS-485, relays, TF slot
Technical specification
| Operation system |
Embedded Linux operation system |
| ROM |
32 MB |
| RAM |
128 MB |
| Processor |
Embedded high performance processor |
| Screen size |
7-inch |
| Operation method |
Capacitive touch screen |
| Type |
Colourful IPS |
| Resolution |
/ |
| Lens |
/ |
| FOV |
/ |
| Wide dynamic range (WDR) |
/ |
| Video compression standard |
H.265; H.264 |
| Focal length |
/ |
| Audio input |
1 built-in omnidirectional microphone |
| Audio compression standard |
G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
| Audio output |
1 built-in loudspeaker |
| Audio compression bitrate |
16, 32, 64 Kps |
| Audio quality |
Noise suppression and echo cancellation |
| Volume adjustment |
Adjustable |
| Message capacity |
TF card inserted: 200 captured pictures, 200 alarm records | Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records |
| Notice capacity |
200 |
| Linked network camera capacity |
16 |
| Linked indoor extensions capacity |
16 |
| Linked doorphone capacity |
/ |
| Network protocol |
TCP/IP, SIP, RTSP |
| Wi-Fi |
WiFi 802.11b/g/n |
| Wireless network |
1 RJ-45 10/100Mbps self-adaptive |
| Bluetooth |
/ |
| 3G/4G |
/ |
| Zigbee |
/ |
| Alarm input |
8 |
| Network interface |
1 RJ-45 10/100 Mbps self-adaptive |
| TAMPER |
/ |
| RS-485 |
1 |
| USB |
/ |
| TF card |
Support TF card, up to 128 G |
| Alarm output |
/ |
| Lock control |
4 relays, Max. 30 VDC 1A |
| Power supply output |
Max. 12 VDC 0.5 A |
| Debugging port |
1 |
| Relay |
4 |
| Button |
1 physical button(s) |
| Installation |
Flush mounting, surface mounting, table mounting |
| Indicator |
/ |
| Weight |
Without package: 412.2 g (0.909 lb) |
| Protective level |
/ |
| Working temperature |
-10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity |
10% to 90% (no-condensing) |
| Dimension (W × H × D) |
180.4 mm × 128.4 mm × 21.8 mm (7.10" × 5.06" × 0.86") |
| Battery |
/ |
| Power supply |
IEEE802.3at, Standard PoE,12 VDC, 1.5 A |
| Application environment |
Indoor |
| Power consumption |
≤ 12 W |
| Language |
English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
| Material |
Die-cast integrated aluminum alloy casing |
Downloads
Used for: IP video door entry in homes, apartments and offices.
Frequently Asked Questions
What size is the screen?
It has a 7-inch IPS touch screen with 1024 × 600 resolution.
How is it powered?
It supports standard IEEE 802.3at PoE power supply and can power the lock.
Can I answer the door from my phone?
Yes, with the Hik-Connect app you can receive calls, open the door and view live video remotely.
