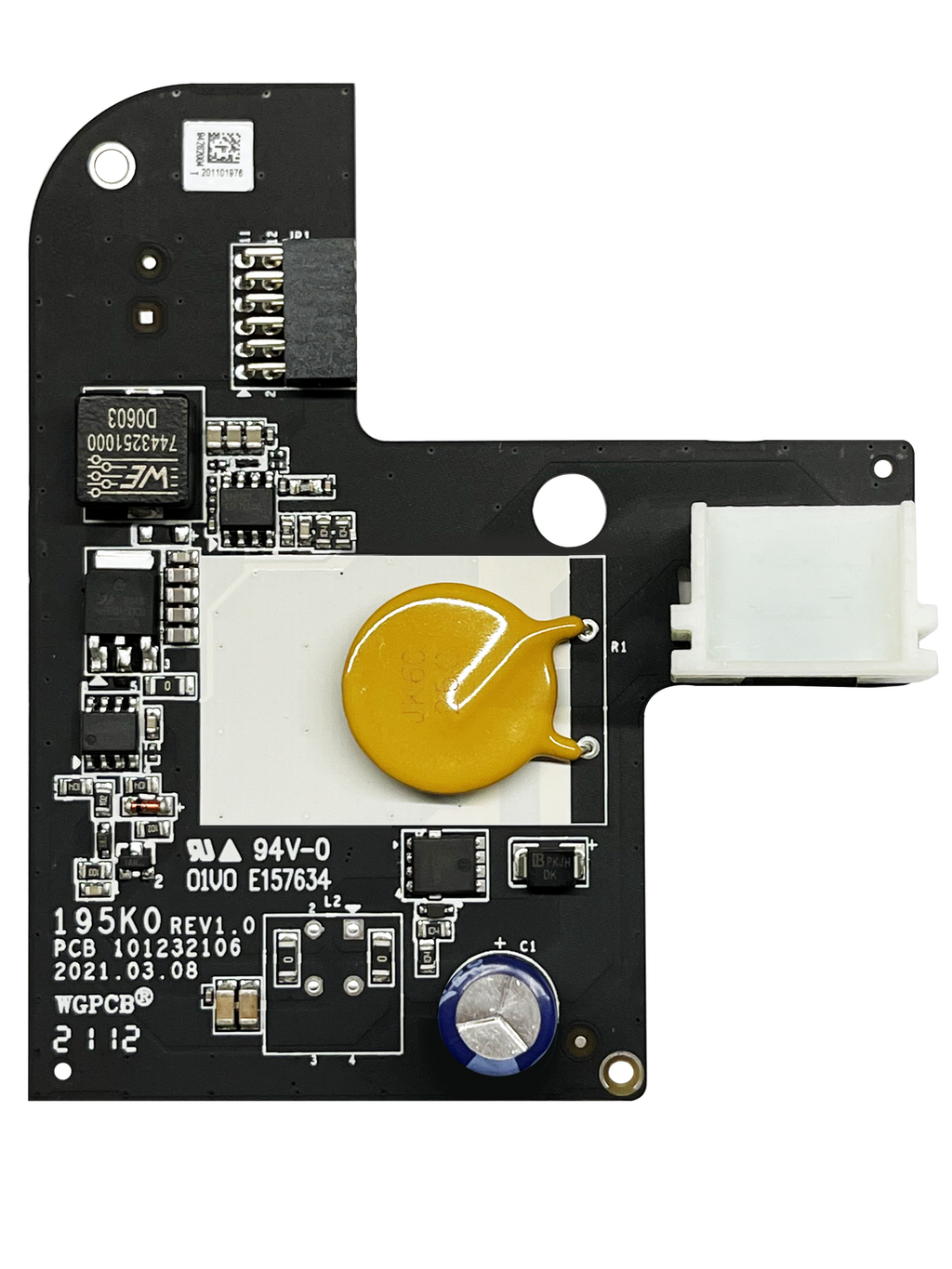

The Hikvision DS-PM1-D is a PSU module that connects an AX PRO control panel to an 8–24 VDC low-voltage power source. It is intended for sites with no mains power or an unstable supply, and can be connected to a portable battery.
Key features
- Compatible with AX PRO control panels
- Wide 8–24 VDC input range
- Convenient installation
- Can be connected to a portable battery
Technical specifications
-
Model: DS-PM1-D
-
Power supply (input): 8–24 VDC
-
Input current: Up to 2 A
-
Output voltage: 5.5 VDC
-
Output current: Up to 2 A
-
Operating temperature: −10°C to +55°C
-
Operating humidity: 10% to 90% (non-condensing)
-
Dimensions (W × H × D): 80 × 90 × 15 mm
-
Weight: 35 g
