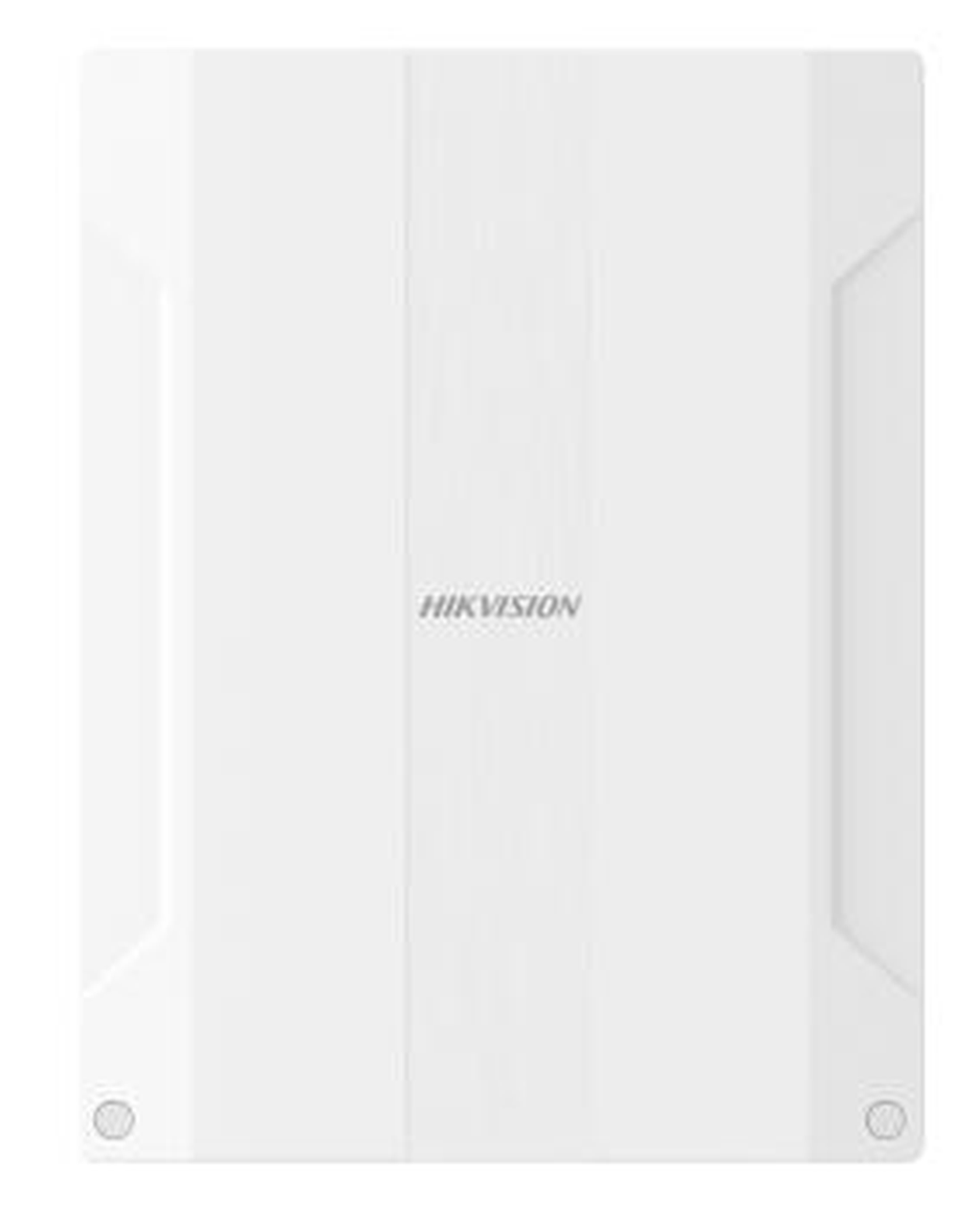

Hikvision AX PRO Ultra Wireless Panel with Wired Zones
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 3 to 16 weeks |
TCP/IP, Wi-Fi, and 3/4G network New generation wireless protocol: Tri-X/Cam-X Long RF transmission distance Two-way communication with AES-128 encryption Connects up to 96 zones/outputs (Including 48 PIRCAMs & onboard Wired Zones/Outputs), 48 wireless keyfobs, 4 repeaters, 6 sounders(3 internal+3 External),...
Frequently bought together
Product details
TCP/IP, Wi-Fi, and 3/4G network New generation wireless protocol: Tri-X/Cam-X Long RF transmission distance Two-way communication with AES-128 encryption Connects up to 96 zones/outputs (Including 48 PIRCAMs & onboard Wired Zones/Outputs), 48 wireless keyfobs, 4 repeaters, 6 sounders(3 internal+3 External), 8 tag readers & keypads. Supports up to 48 network users, including 1 installer, 1 administrator, and 46 normal users Voice prompt Configuration via Web client, mobile client, and Convergence Cloud Hik-Connect and Hik-ProConnect configuration depends on the user access level Pushes alarm no
Specification
| Product code | DS-PWA96-M2H-WE |
|---|---|
| Tag | 48 |
| Area | 32 |
| Zones | Up to 96 (including 48 PIRCAMs & 16 onboard Wired Zones & 2 onboard Wired Outputs) |
| Onboard video clips | 4 |
| Installer | 1 |
| User | 46 |
| Admin | 1 |
| Voice Prompt | Supported |
| Loudspeaker built in | Supported |
| Tag reader built in | No |
| Memory Log stored | 5000 |
| Programming tools | Hik-Connect/Hik-ProConnect/Web Portal/ IVMS4200/ Convergence Cloud |
| Firmware upgrade | APP/Web Portal |
| Arm modes | Away/Stay |
| Automatic Arm/Disarm Timers | Supported |
| Forced Arming with Open Zones | Supported |
| Diagnostics via the APP or Web | Supported |
| User APP for operating | Supported |
| Installer APP for programming | Supported |
| Web server for maintenance (offline configuration) | Supported |
| Power Output | 2 onboard (12v, total 1A) |
| RS232 output | Supported |
| SIM slot | Dual |
| Two-way Wireless Communication | Support |
Datasheet
Hikvision AX PRO Ultra Wireless Panel with Wired Zones Need the datasheet? Our team will email it to you. Request datasheet
