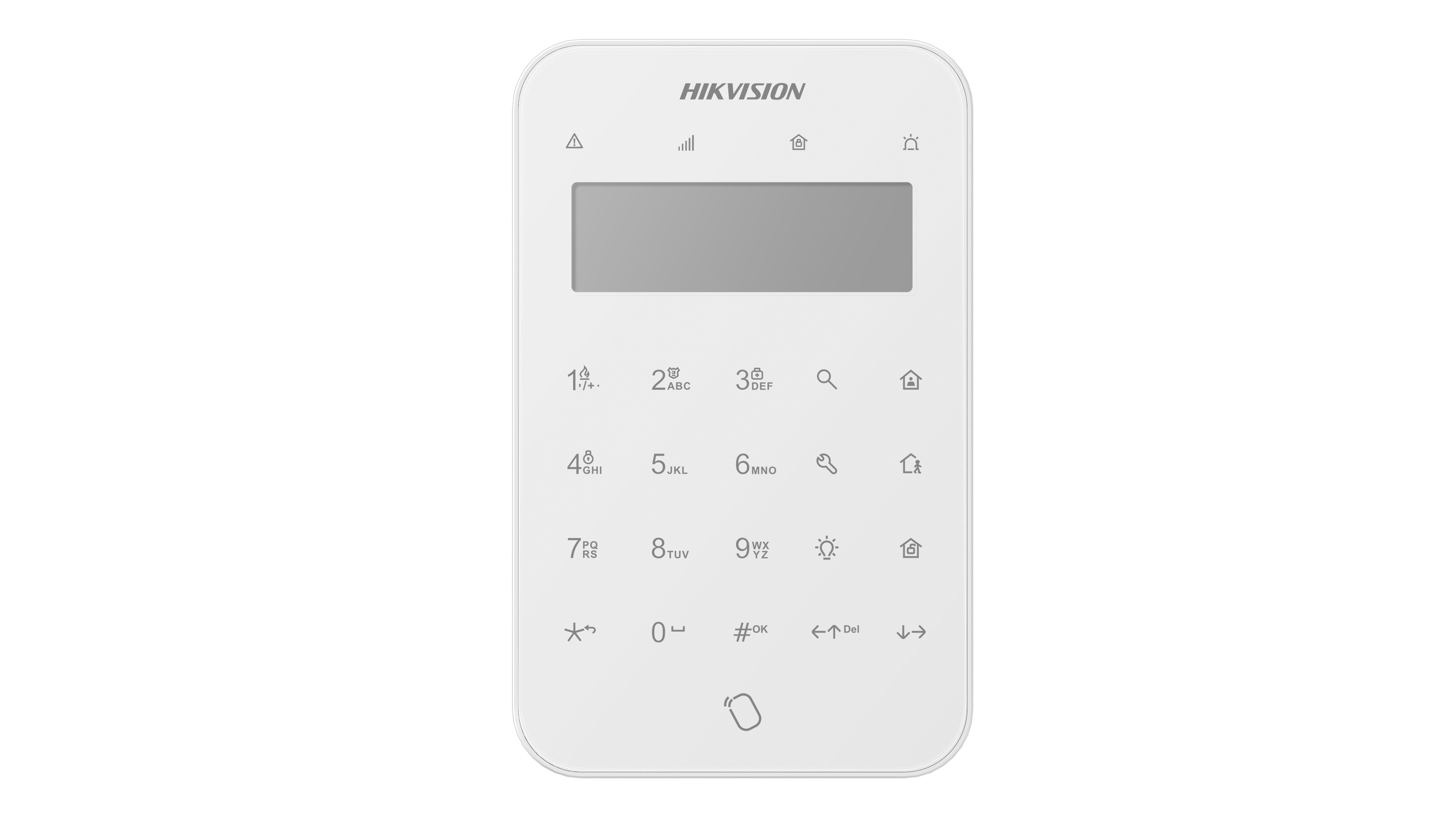

868MHz two-way wireless communication LCD screen and LED to indicate system status System configuration through LCD screen Multiple operations like stay/away arm, disarm, silent alarm, output control One-Push fire alarm, panic alarm, and medical alarm Full touch key design with LED backlight Fully remote configurable through App
Specification
| Product code |
DS-PK1-LT-WE |
| Tag reader built in |
Supported |
| Serial port |
3 |
| Tamper-Proof |
Supported, front and rear |
| Buzzer |
Supported |
| Power switch |
Power on/off |
| Numeric key |
Number key: 0-9
Function key: *, #, Query, Away arm, Stay arm, Disarm, Output, Project, Right, Left |
| LED Indicator |
Fault(orange), Enrollment/Signal (red/green), Arm(blue), Disarm(green), Alarm (red) |
| Battery type |
Four CR123 batteries |
| Operation temperature |
-10 °C to 55 °C |
| Battery life span |
Up to 2 years (standby time) |
| Power consumption |
Quiescent current: 80uA
Max current: 300mA
Voltage: 3v |
| RF frequency |
868 MHz |
| RF modulation |
2GFSK |
| RF distance |
1200m (open area) |
| Wireless technology |
Tri-X Wireless Technology |
| Installation method |
Wall-mounting |
| Color |
White |
| Tag reader built in |
Supported |
| Serial port |
3 |
| Tamper-Proof |
Supported, front and rear |
| Buzzer |
Supported |
| Power switch |
Power on/off |
| Numeric key |
Number key: 0-9
Function key: *, #, Query, Away arm, Stay arm, Disarm, Output, Project, Right, Left |
| LED Indicator |
Fault(orange), Enrollment/Signal (red/green), Arm(blue), Disarm(green), Alarm (red) |
