Description

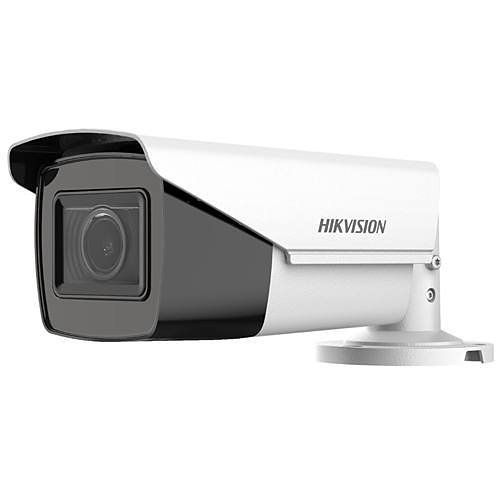

The Hikvision DS-2CE19H0T-AIT3ZF-C is a high-quality bullet camera from the Value Series, offering impressive 5MP resolution (2560 × 1944) for crisp and detailed video surveillance. The camera features a motorized varifocal lens with a focal range of 2.7mm to 13.5mm, providing flexibility in adjusting the field of view. This makes it suitable for various surveillance needs, from wide-angle coverage to more focused monitoring. With a horizontal field of view ranging from 95° to 26° and a vertical field of view of 72° to 20°, users can easily tailor the camera’s coverage to specific areas.
This camera offers excellent low-light performance with up to 40 metres of infrared (IR) illumination, ensuring clear night-time imaging. It supports four switchable video signal formats—TVI, AHD, CVI, and CVBS—allowing for versatile integration with different security systems. The Hikvision DS-2CE19H0T-AIT3ZF-C also includes wide dynamic range (WDR) functionality, ensuring that images remain clear even in challenging lighting conditions. Its durability is guaranteed by an IP67 rating, making it both water and dust resistant, and suitable for use in harsh outdoor environments.
Designed for a variety of installation options, the camera can be mounted on corners, junction boxes, poles, or vertically, offering flexibility in positioning. It operates on both 12V DC and 24V AC power sources, accommodating different setups. The camera's 2D digital noise reduction, backlight compensation, and highlight compensation features enhance image quality, while the wide operating temperature range of -40°C to 60°C ensures reliable performance in diverse environmental conditions. With its robust features and high-quality imaging, the DS-2CE19H0T-AIT3ZF-C is an excellent choice for comprehensive surveillance applications.
- High-Resolution Imaging: 5MP resolution (2560 × 1944) delivers clear and detailed video for superior surveillance.
- Motorized Varifocal Lens: Adjustable focal length of 2.7mm to 13.5mm allows for flexible coverage, providing a horizontal field of view from 95° to 26° and vertical FOV from 72° to 20°.
- Impressive Night Vision: IR illumination extends up to 40 metres, ensuring bright and clear night-time imaging.
- Four Switchable Video Formats: Supports TVI, AHD, CVI, and CVBS signals for versatile integration with various security systems.
- Wide Dynamic Range (WDR): Helps to maintain clear, high-quality images even in challenging lighting conditions.
- IP67 Weatherproof Rating: Fully water and dust-resistant, making it ideal for outdoor installations in harsh environments.
- Robust Low-Light Performance: Powered by Darkfighter technology for ultra-low light sensitivity, providing clear footage in low-light settings.
- Flexible Mounting Options: Suitable for corner mount, junction box mount, pole mount, or vertical mounting, allowing for versatile installation.
- Dual Power Options: Operates on both 12V DC and 24V AC power sources, offering flexibility for different setups.
- Advanced Image Enhancements: Features 2D digital noise reduction, backlight compensation, and highlight compensation for enhanced image quality in varying conditions.
Specifications
| Connectivity Technology | Wired |
|---|---|
| Durability | Dust Resistant; Water Resistant |
| Effective Camera Resolution | 5MP |
| Environmental Certification | RoHS |
| Features | 2D Digital Noise Reduction (2DNR); Auto Gain Control; Automatic White Balance; Back Light Compensation (BLC); Day/Night; Digital Wide Dynamic Range (D-WDR); Highlight Compensation (HLC) |
| Field of View | Diagonal; Horizontal; Vertical |
| Focal Length | 2.7-13.5mm |
| Form Factor | Bullet |
| Image Sensor Type | CMOS |
| Ingress Protection Rating | IP67 |
| Input Voltage | 12V DC; 24V AC |
| Lens Mount Type | M14 |
| Lens Type | Motorized Zoom |
| Limited Warranty | 2-Year |
| Maximum Focal Length | 13.5mm |
| Maximum Video Resolution | 2560 x 1944 |
| Minimum Aperture | f/1.2 |
| Mount Type | Corner Mount; Junction Box Mount; Pole Mount; Wall Mount |
| Night Vision | Yes |
| Night Vision Type | Infrared (IR) |
| Optical Zoom | 5x |
| Power Source | AC Power; DC Power |
| Product Line | Turbo HD Cameras |
| Product Series | Value Series |
| Product Type | Bullet Cameras |
| Video Resolution | 1280 x 720 |
| Video Signal Format | NTSC; PAL |
| Weight | 682.00g |
| Wide Dynamic Range | Yes |
| Maximum Operating Temperature | 60°C |
| Analog Video Signal Format | AHD; CVBS (Composite Video Baseband Signal) |
| Colour | White |
| Country of Origin | CN |
| Lens Included | Yes |
| Longest Shutter Speed | 1/25 Second |
| Manufacturer | Hikvision |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 2.7mm |
| Minimum Illumination | 0.01lux |
| Minimum Operating Temperature | -40°C |
| Night Vision Distance | 40.00m |
| Operating Humidity | 90% |
| RoHS Compliant | Compliant |
| Shortest Shutter Speed | 1/50000 Second |
| WEEE Compliant | Compliant |
