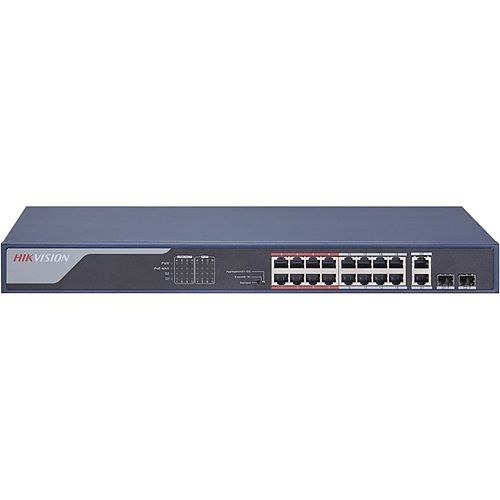

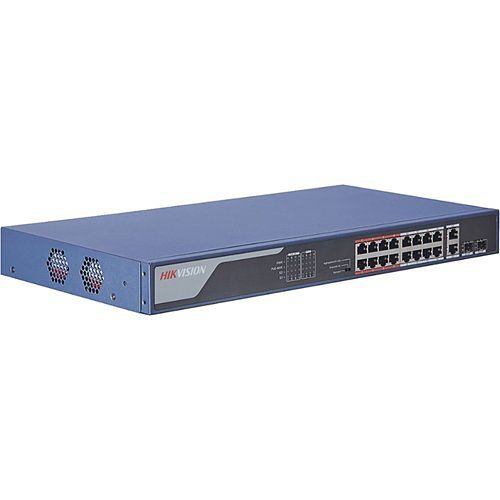

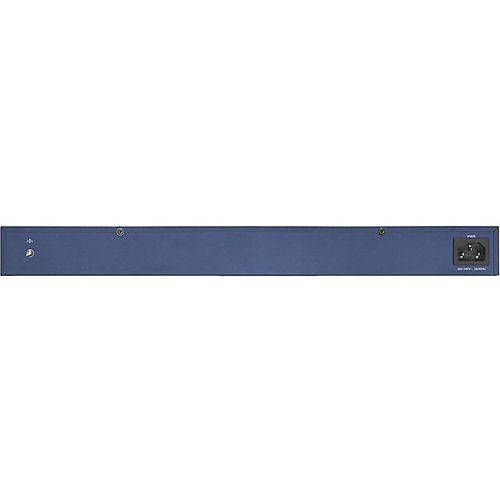

Hikvision DS-3E0318P-E Pro Series 16-Port Unmanaged PoE Switch, 16 x 10-100 Mbps PoE RJ45, 30W
SKU: DS-3E0318P-E(C)Brand: Hikvision
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 3 to 16 weeks |
Hikvision DS-3E0318P-E Pro Series 16-Port Unmanaged PoE Switch, 16 x 10-100 Mbps PoE RJ45, 30W
£171.95
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Intelligent PoE Management: When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300m Long Range PoE Transmission: The distance between IPCs and switch can reach maximum 300m s.
- 4/8-Core Adaptive Power Supply with Less Power Loss: 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment: The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission: VIP port ensures important data transmission when network congestion occurs.
Frequently bought together
Hikvision
Hikvision DS-3E1105P-EI-V2 4 Port Fast Ethernet Smart POE Switch
Sale price£45.25
In stock
Hikvision
Hikvision DS-3E1310HP-EI(B) 8-Port Fast Ethernet Smart PoE Switch, (2) Gigabit Uplink Ports, 110W
Sale price£86.20
In stock
Hikvision
Hikvision DS-3E1510P-EI 8-Port Gigabit Smart PoE Switch, 2 x RJ45 Uplink, 110W
Sale price£92.25
In stock
Hikvision
Hikvision DS-3E1510P-SI 8-Port Gigabit Smart PoE Switch, 2 x SFP Fibre Uplink
Sale price£130.50
Pre-Order (Not in Stock)
- Estimated Lead Time: 3-16 Weeks.
Hikvision
Hikvision DS-3E1518P-EI 16-Port Gigabit Smart PoE Switch
Sale price£244.65
Pre-Order (Not in Stock)
- Estimated Lead Time: 3-16 Weeks.
Product details
DS-3E0318P-E(B) is a layer 2 100 Mbps PoE switch. Based on wire-speed forwarding, the switch supports Ethernet PoE power supply and extend mode. The power supply distance reaches as long as 300 m. It also supports prior and stable transmission of the important surveillance area video when connected to the high priority ports.
Main Features
- Intelligent PoE Management: When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
- Up to 300m Long Range PoE Transmission: The distance between IPCs and switch can reach maximum 300m s.
- 4/8-Core Adaptive Power Supply with Less Power Loss: 8-core power supply reduces the power loss on cables.
- 6KV Surge Protection to Improve Reliability in Harsh Environment: The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
- Design for Video Transmission: VIP port ensures important data transmission when network congestion occurs.
Specifications
| Depth | 220.80mm |
|---|---|
| Environmental Certification | RoHS |
| Environmentally Friendly | Yes |
| Ethernet Technology | 100 Mbps (Fast Ethernet) |
| Frequency | 50Hz |
| Height | 44.50mm |
| Input Voltage | 120V AC; 230V AC |
| Length | 440.00mm |
| Limited Warranty | 3-Year |
| Material | Metal |
| Media Type Supported | Twisted Pair |
| Mount Type | Rack Mount |
| NDAA Compliant | No |
| Network (RJ-45) | Yes |
| Network Switch Type | PoE; Unmanaged |
| Network Technology | 1000Base-T; 100Base-TX; 10Base-T |
| Number of SFP Slots | 2 |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 230W |
| Power Consumption | 150.0000W |
| Power Source | AC Power |
| Product Series | Value |
| Product Type | Ethernet Switch |
| Total Number of Network Ports | 16 |
| Width | 335.00mm |
| Expansion Slot Type | SFP |
| Layer Supported | 2 |
| Manageable | No |
| Manufacturer | Hikvision |
| Modular | Yes |
| Networking Standards | IEEE 802.3af; IEEE 802.3at |
| Number of SFP Slots | 2 |
| Number of Total Expansion Slots | 2 |
| RoHS Compliant | Compliant |
| Shared SFP Slot | Yes |
| Uplink Port | Yes |
| WEEE Compliant | Compliant |
Downloads
Datasheet
Hikvision DS-3E0318P-E Pro Series 16-Port Unmanaged PoE Switch, 16 x 10-100 Mbps PoE RJ45, 30W Need the datasheet? Our team will email it to you. Request datasheet
