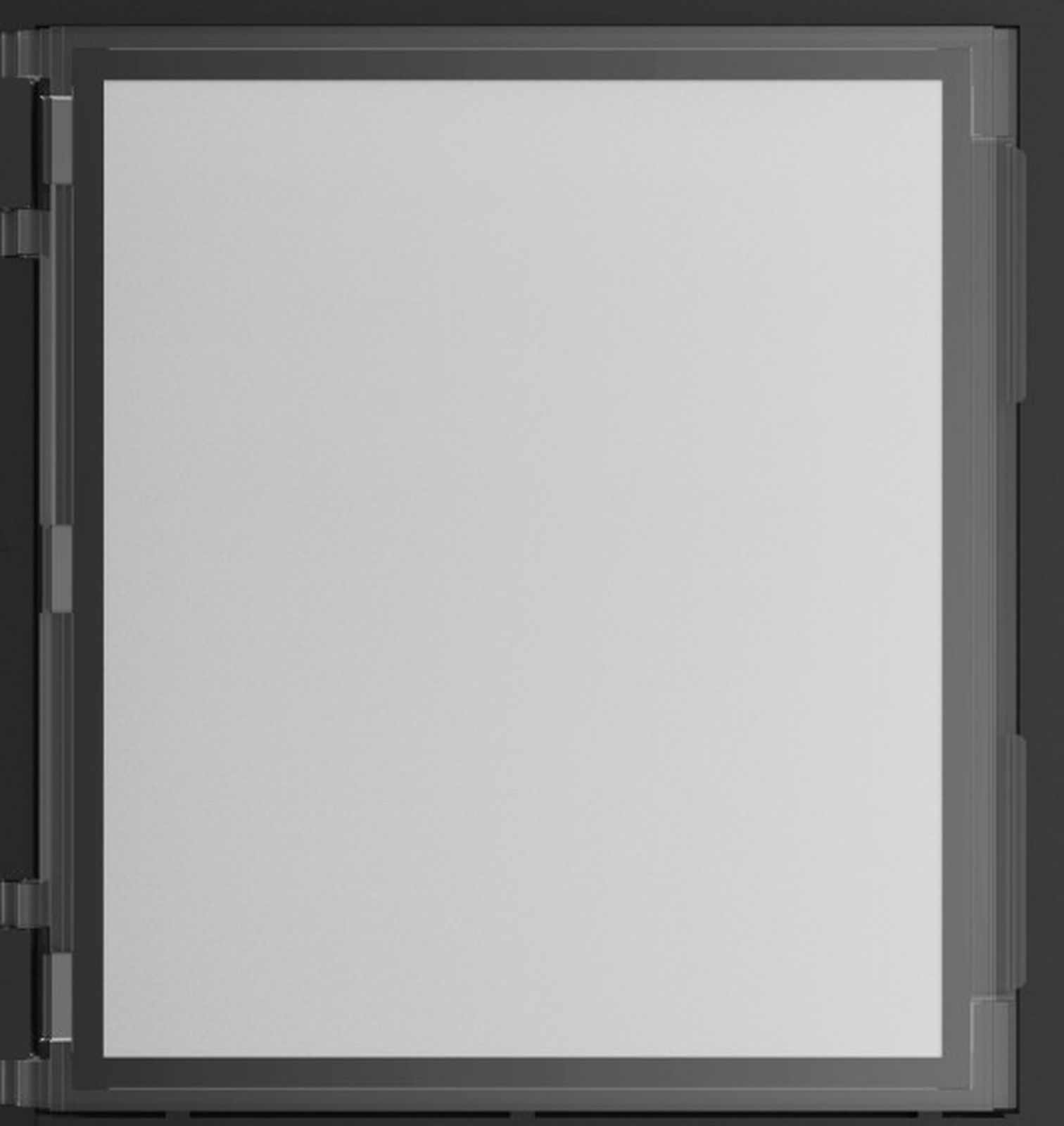

The Hikvision DS-KD-INFO is an information module for Hikvision modular video intercom door stations. It adds a backlit information display to the door station. It connects to the neighbouring modules, which power it.
Key features
- Displays information at the door station
- Backlight switches automatically to suit the ambient conditions (can be controlled via client software)
- Easy to extend with other modules
- Flush or surface mounting, with optional DS-KD-ACF and DS-KD-ACW mounting accessories
Technical specifications
- Model: DS-KD-INFO
- Module interfaces: 2 (1 input, 1 output)
- Debugging port: 1
- DIP switch: 8
- Power supply: 12 VDC (powered by another module)
- Power output: 12 VDC (to another module)
- Power consumption: ≤ 1.5 W
- Working temperature: -20 °C to 60 °C
- Working humidity: 10% to 95%
- Installation: flush or surface mounting
- Dimensions: 98.42 × 94.4 × 33.8 mm
- Optional accessories: DS-KD-ACF1/Plastic, DS-KD-ACF2/Plastic, DS-KD-ACF3/Plastic, DS-KD-ACW1, DS-KD-ACW2, DS-KD-ACW3
