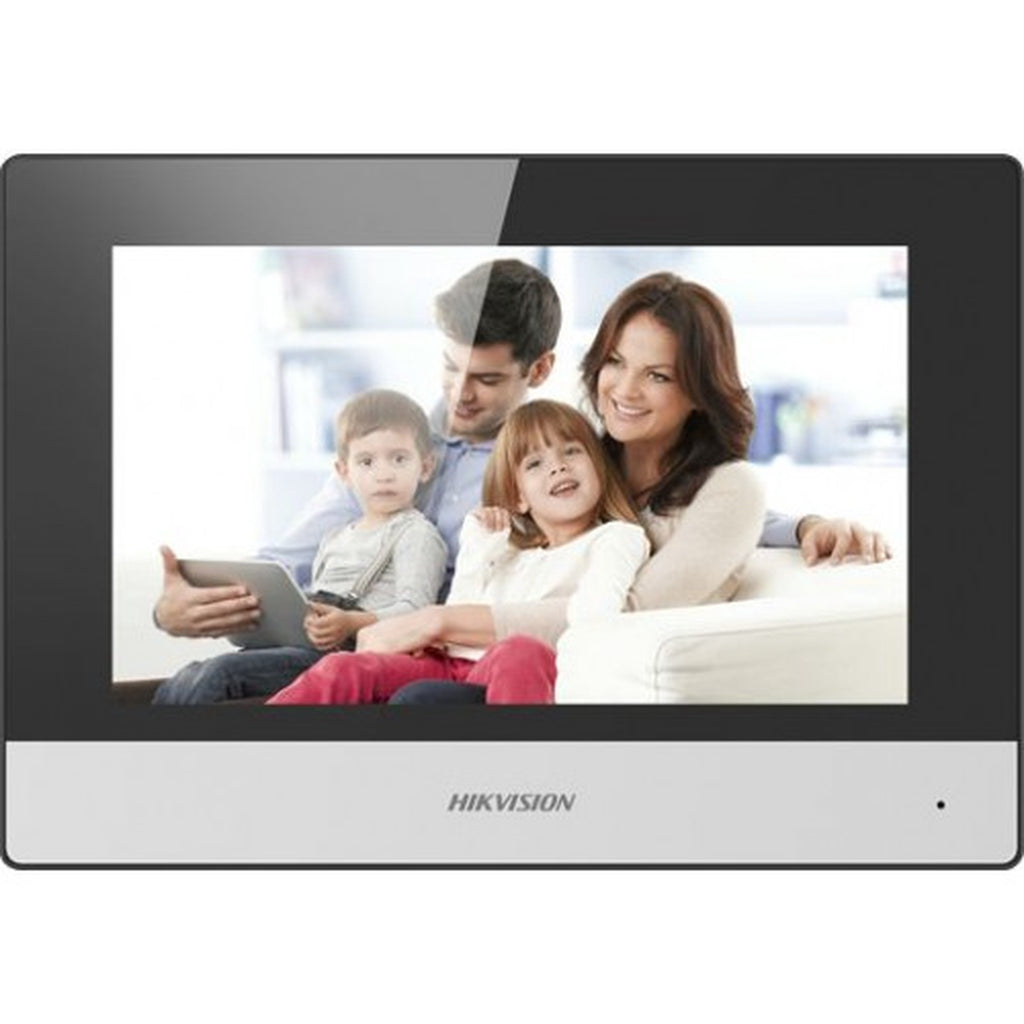

Hikvision KH6 IP-Based Indoor Station 7" Touch Screen White

Hikvision DS-KH6320-WTE1 - KH6 Series IP-Based Indoor Station

The Hikvision DS-KH6320-WTE1 is a KH6 Series IP-Based Indoor Station from the Video Intercom IP Pro range. 7-inch TFT touch screen with 1024 × 600 resolution. Convenient Hik-Connect APP Mobile Control. Receive calls, open the door and live view remotely.

Key features

• 7-inch TFT touch screen with 1024 × 600 resolution
• Convenient Hik-Connect APP Mobile Control
• Receive calls, open the door and live view remotely
• Easy to use without PC
• Easy wizard for quick set up
• Configure the whole system on one touch screen
• Live view of the door station and cameras in public areas
• Support voice messages when no response from the indoor station
• Receive alarms by linkage with a alarm system and notify the center to handle in time
• Elevator access control

Technical specification

Operation system	Linux
ROM	32 MB
RAM	128 MB
Processor	Embeded high performance processor
Screen size	7-inch
Operation method	Capacitive touch screen
Type	Colourful TFT
Resolution	/
Lens	/
FOV	/
Wide dynamic range (WDR)	/
Video compression standard	/
Focal length	/
Audio input	1 built-in omnidirectional microphone
Audio compression standard	G.711 U、G.711 A、G.722.1
Audio output	1 built-in loudspeaker
Audio compression bitrate	64 Kbps
Audio quality	Noise suppression and echo cancellation
Volume adjustment	Adjustable
Message capacity	TF card inser | ted: 200 captured pictures, 200 alarm records | Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records
Notice capacity	200
Linked indoor extensions capacity	16
Linked doorphone capacity	17
Linked network camera capacity	16
Network protocol	TCP/IP, SIP, RTSP
Wi-Fi	2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth	/
3G/4G	/
Zigbee	/
Alarm input	8
Network interface	1 RJ-45 10/100 Mbps self-adaptive
TAMPER	/
RS-485	1 RS-485 (Half duplex)
USB	/
TF card	Support TF card, up to 128 G
Alarm output	2 relays, Max. 30 VDC 0.3 A
Button	/
Installation	Surface mounting
Indicator	/
Weight	Net weight: 355 g (0.8 lb) | Gross weight: 683 g (1.5 lb)
Protective level	/
Working temperature	-10 °C to 50 °C (14 °F to 122 °F)
Working humidity	10% to 90% (no-condensing)
Dimension (W × H × D)	200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
Battery	/
Application environment	Indoor
Power consumption	≤ 5 W
Language	English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese
