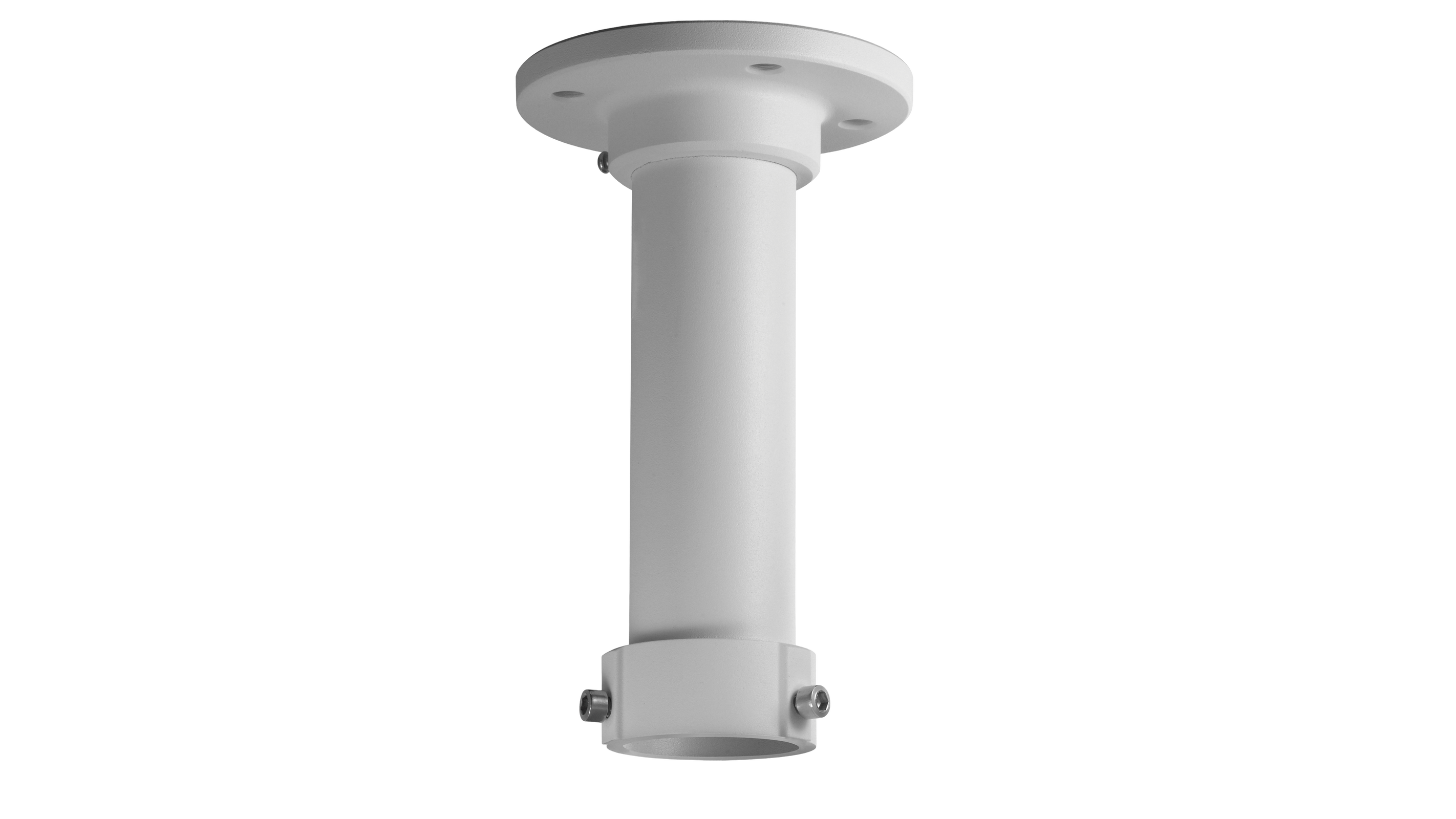

The Hikvision DS-1661ZJ is an indoor/outdoor aluminium alloy pendant mounting bracket for Hikvision speed dome cameras. A rubber pad improves water resistance and a safety rope makes installation safer and more convenient.
Key features
- Aluminium alloy with surface spray treatment
- For indoor and outdoor use
- Cable entrance hole
- Rubber pad for better water resistance (add the rubber blanket for outdoor installation)
- Safety rope for safer, easier installation
- Maximum load capacity 30 kg
- The mounting surface must be capable of supporting at least three times the combined weight of the camera and mount.
Technical specifications
-
Model: DS-1661ZJ
-
Description: Pendant mounting bracket, indoor/outdoor
-
Colour: Hikvision white
-
Material: Aluminium alloy
-
Dimensions: Ø116.5 × 200 mm
-
Weight: 600 g
-
Suitable for: Speed dome pendant mounting (not suitable for DS-2AE-714)
-
Maximum load: 30 kg
