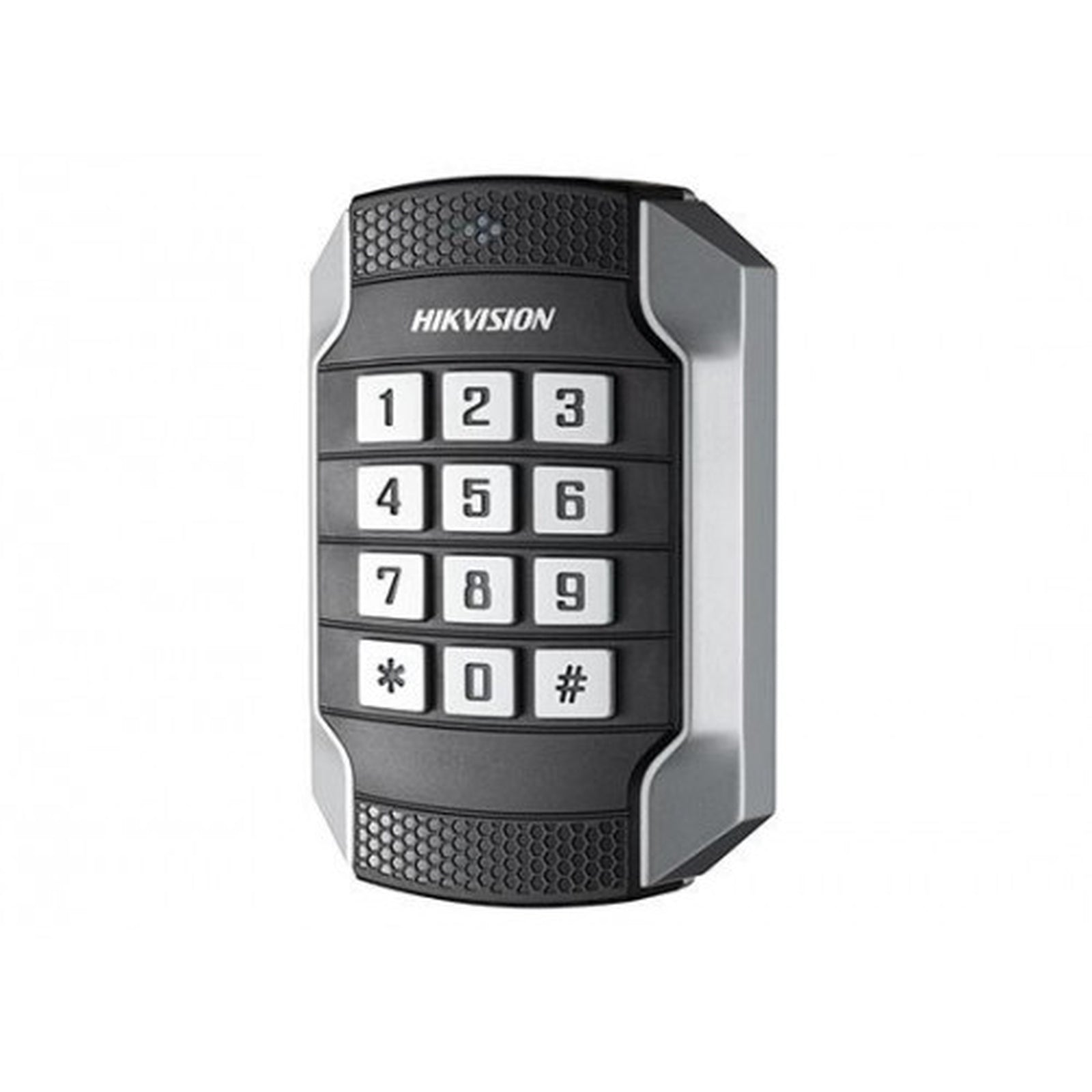

The Hikvision DS-K1104MK is a vandal-proof Mifare card reader with keypad from the DS-K1104 series, for Hikvision access control systems. It has a PC and zinc alloy shell rated IK10 and connects to controllers over RS-485 or Wiegand.
Key features
- Reads Mifare cards (13.56 MHz) and obtains the card number
- 12-key keypad (0 to 9, *, #)
- PC and zinc alloy shell, IK10 rated
- RS-485 and Wiegand (W26/W34) protocols
- Tamper-proof alarm
- Built-in beeper and LED status indication
- 32-bit processor with watchdog self-recovery
- Online upgrade over RS-485, with rollback if an upgrade fails
- Dust-proof and waterproof design, IP65
Technical specifications
- Model: DS-K1104MK
- Reading frequency: 13.56 MHz
- Reading range: ≤ 50 mm
- Keypad: 12 keys (0 to 9, *, #)
- Power supply: 12 VDC
- Working current: ≤ 500 mA
- Power consumption: ≤ 2 W
- ID setting: via DIP switch
- Working temperature: -20 °C to +65 °C
- Working humidity: 10% to 90% (non-condensing)
- Protection: IP65
- Dimensions: 118 × 76 × 23 mm
- Weight: ≤ 0.52 kg
- Installation: suits 86 and 120 gang boxes
