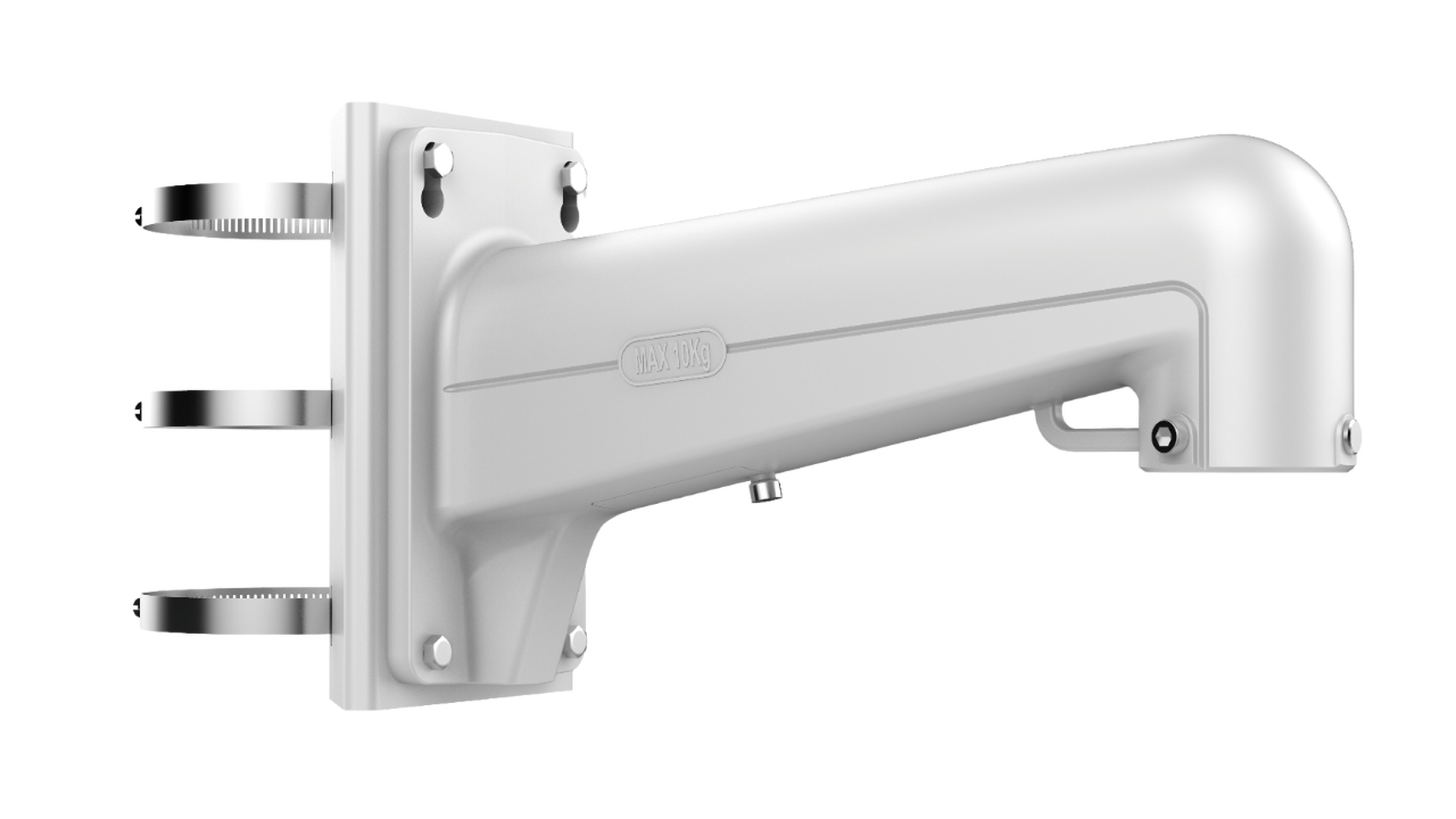

The Hikvision DS-1602ZJ-POLE is an aluminium and steel vertical pole mount bracket for pendant mounting Hikvision speed dome cameras on poles from 67 mm to 127 mm in diameter.
Key features
- For speed dome pendant mounting on a vertical pole
- Suits pole diameters from 67 mm to 127 mm
- Clamp load capacity 30 kg
- The pole must be capable of supporting more than three times the weight of the camera and bracket.
Technical specifications
-
Model: DS-1602ZJ-POLE
-
Description: Vertical pole mount bracket
-
Colour: Hikvision white
-
Material: Aluminium and steel
-
Pole diameter: 67–127 mm
-
Dimensions: 117 × 194 × 451.3 mm
-
Weight: 2.04 kg
-
Clamp load capacity: 30 kg
