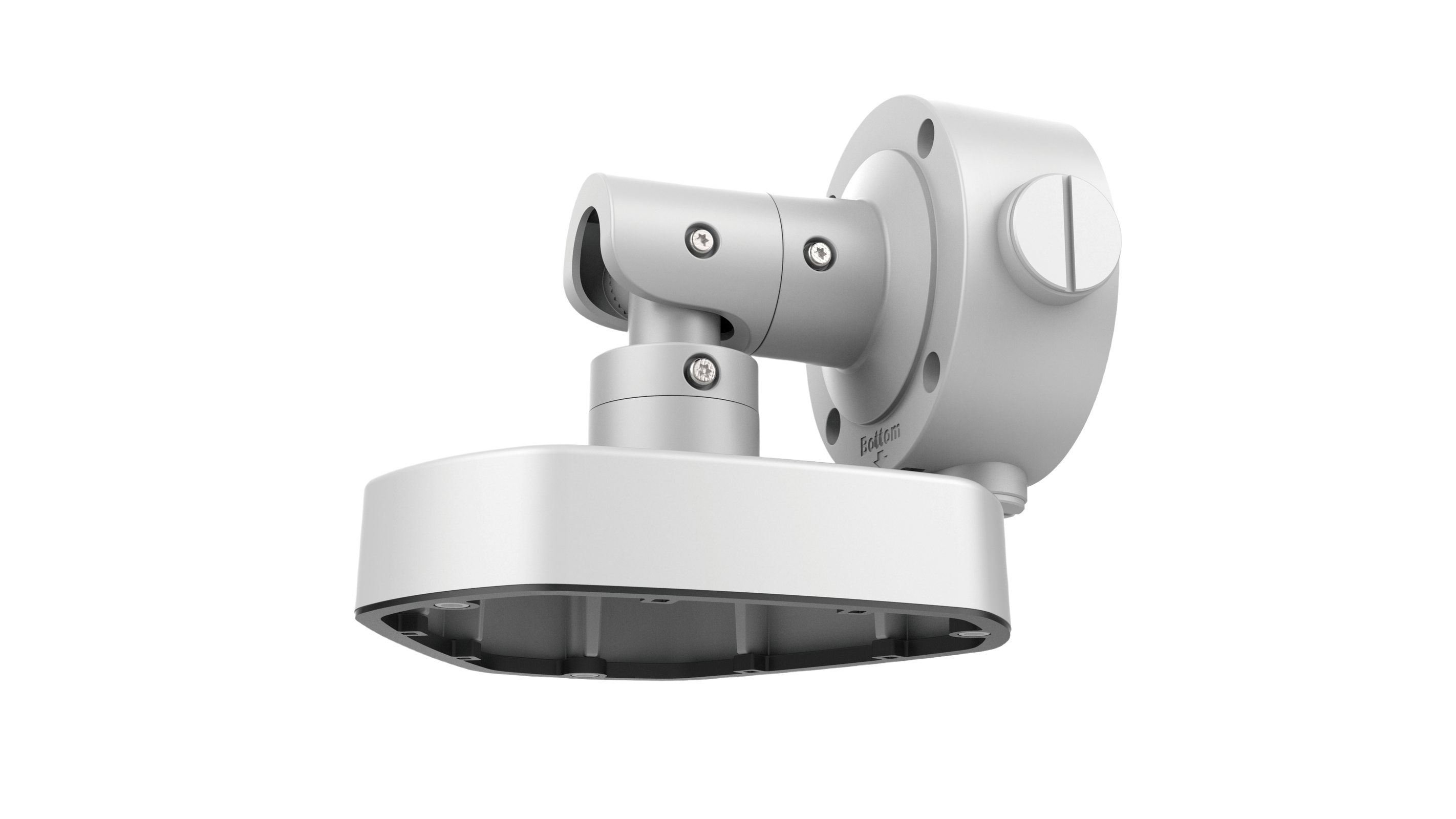

The Hikvision DS-1283ZJ is an aluminium alloy wall mounting bracket for Hikvision fisheye cameras. The camera fixes directly to the bracket, which can be adjusted in pan and tilt to set the mounting angle.
Key features
- Aluminium alloy with surface spray treatment
- Camera fixes directly to the bracket
- Cap designed for convenient wiring
- Pan, tilt and rotation adjustment
- Waterproof rubber is required for outdoor installation
- Maximum load capacity 2 kg
- The mounting surface must be capable of supporting at least three times the combined weight of the camera and mount.
Technical specifications
-
Model: DS-1283ZJ
-
Description: Wall mounting bracket for fisheye cameras
-
Colour: Hikvision white
-
Material: Aluminium alloy
-
Dimensions: 164 × 152.6 × 198.2 mm
-
Weight: 785 g
-
Adjustment: Pan 360°, tilt 100°, rotation 360°
-
Maximum load: 2 kg
