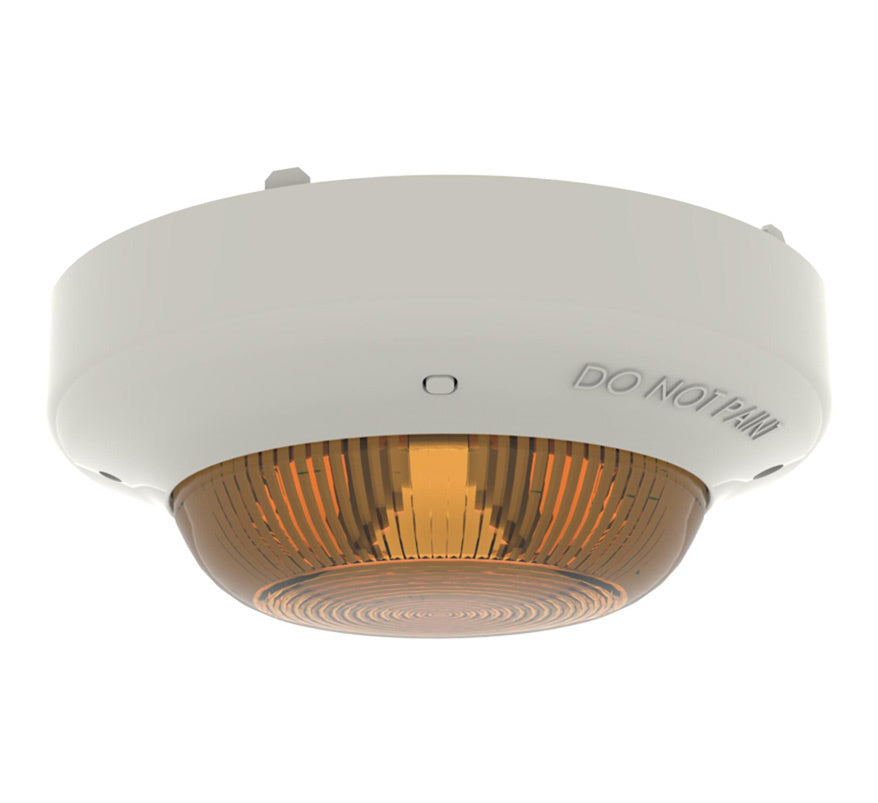

Hochiki ESP Addressable VID Beacon (Ivory Case, Amber Lens) (Non EN54-23) (CHQ-AB(AMB))

The Hochiki CHQ-AB(AMB) is an addressable, loop-powered beacon (visual indicator) with an ivory case and an amber lens for the Hochiki ESP analogue addressable system. High-intensity LEDs and a Fresnel lens produce a highly visible flash, and the casing matches the ESP sensor range in shape and colour. It fits the standard ESP base (YBN-R/3), the YBO-BS base sounder, the YBO-BSB base sounder beacon or the YBO-R/SCI isolator base. It is not EN 54-23 compliant.

Key features

• High-intensity LED technology with Fresnel lens
• Variable flash frequency (control panel compatibility required)
• Addressed with the TCH-B200 hand-held programmer
• Up to 127 devices per loop
• Casing matches the ESP sensor range
• Approved by VdS; non EN 54-23 compliant

Technical specifications

• Ordering code: CHQ-AB(AMB) (ivory case, amber lens)
• Operating voltage: 17-41 V DC
• Quiescent current: 240 µA typ. (300 µA max.)
• Loop current (when polled): 22 mA ±20%
• Alarm current: 4.3 mA typ. (5.0 mA max.)
• Operating temperature: -10 °C to +50 °C
• Storage temperature: -30 °C to +60 °C
• Maximum humidity: 95% RH non-condensing (at 40 °C)
• Weight: 88 g
• Dimensions: Ø100 x 38 mm (46 mm with base)
• Base fixing centres: 48-74 mm
• Approvals: VdS (G206052)
