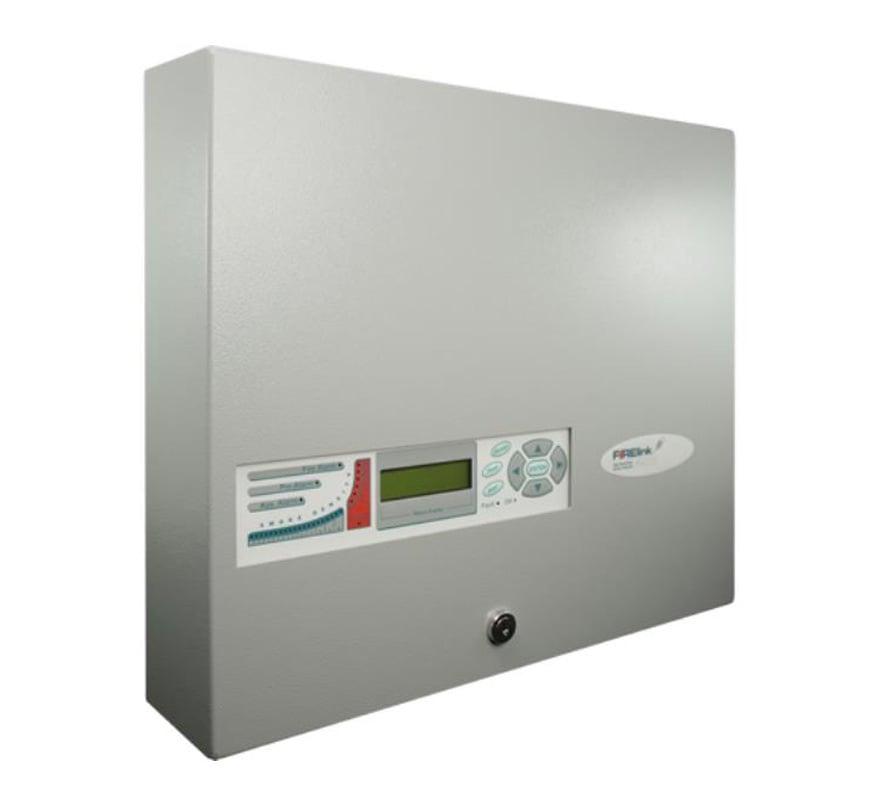

Hochiki FIRELINK-400 4 Pipe Aspirating Smoke Detector

The Hochiki FIRElink-400 is a four-pipe aspirating (air sampling) smoke detector for very high sensitivity smoke detection, with built-in immunity to dust and dirt build-up. Hochiki positions it as its high-capacity FIRElink unit for large areas up to 4000 m², such as warehouses, factories and open spaces.

It sets itself to the best sensitivity for the protected environment without complex set-up, and can tell "dirty" and "clean" operating periods apart (such as day and night), switching sensitivity automatically. Volt-free Fire 1 and Fault relays allow monitoring by a fire panel or BMS, and an FL-APIC card connects it to a Hochiki ESP addressable loop. All FIRElink detectors are LPCB approved to EN54-20:2006 Classes A, B and C.

Key features

• Four sampling pipes, up to 200 m aggregate (still air)
• Laser-based light scatter for reliable early warning
• Laser dust discrimination to reduce false alarms
• RS485 communications built in for networking and remote communications
• Volt-free Fire 1 and Fault relay outputs

Technical specifications

• Ordering code: FIRELINK-400 (standard detector)
• Current consumption: 470 mA at 24 VDC (fan speed 8)
• Sampling pipe inlets: 4 on top, 4 on rear
• Exhaust outlets: 1 on top, 1 at rear
• Maximum single pipe length: 100 m (2 x 50 m) still air
• Total sampling pipe: 200 m maximum at 100 sampling holes
• Alarm levels: 4 (Aux, Pre-Alarm, Fire 1, Fire 2)
• Operating temperature: 0 °C to +38 °C (UL268) / -10 °C to +60 °C (CEA4022)
• Operating humidity: 0 to 90%, non-condensing
• Measurement range: 0.03% to 25% obs/m full scale deflection; sensitivity resolution 0.0015% to 25%
• Detection principle: laser light scattering mass detection and particle evaluation
• Particle sensitivity range: 0.003 µ to 10 µ
• Dust discrimination: 3D3 Laser Dust Discrimination (LDD)
• Sampling pipe diameter: ¾" nominal bore (27 mm O/D)
• Relay contact rating: 500 mA at 30 V
• Supply voltage: 21.6 to 26.4 VDC
• IP rating: IP50
• Weight: 5.2 kg
• Dimensions: H 372 x W 427 x D 95 mm
