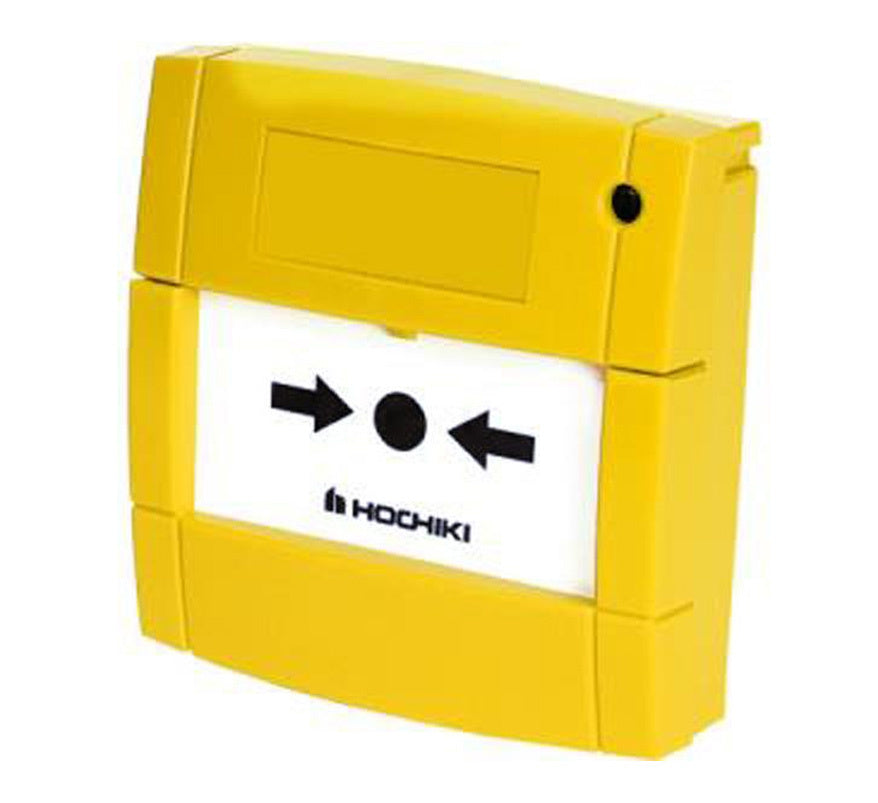

The Hochiki HCP-E/Y(SCI) is the yellow version of the HCP-E(SCI) intelligent manual call point, fully compatible with Hochiki's ESP analogue addressable protocol. It has an integral short-circuit isolator and a bi-coloured status LED.
The LED can be set to pulse for communications polling and lights continuously red when operated, or amber when a short-circuit is present. Hochiki notes that only the red casing carries LPCB approval.
Key features
- Integral short-circuit isolator
- Bi-coloured LED: red for polling/alarm, amber when a short-circuit is present
- Fast response
- Non-frangible element fitted as standard; optional glass element available
- Built-in test function initiated by the control panel, plus test-key testing from the underside
- Two terminal blocks for easy loop connection
- Addressed with the TCH-B200 hand held programmer
- Flush mounting as supplied; surface mounting with the SR MOUNTING BOX (sold separately)
Technical specifications
- Ordering code: HCP-E/Y(SCI) (yellow casing)
- Protocol: Hochiki ESP (digital communication)
- Operating voltage: 17 to 41 VDC
- Low power mode: 180 µA max, 100 µA typical
- Quiescent current: 350 µA max, 250 µA typical
- Alarm current: 10.0 mA max, 5 mA typical
- Short-circuit threshold (typical): 430 Ω
- Ingress protection: IP24
- Case material: modified polyphenylene oxide
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Maximum humidity: 95% RH, non-condensing (at 40 °C)
- Weight / dimensions (flush): 110 g / W 89 x H 93 x D 27.5 mm
- With surface-mount back box: 161 g / W 89 x H 93 x D 59.5 mm
