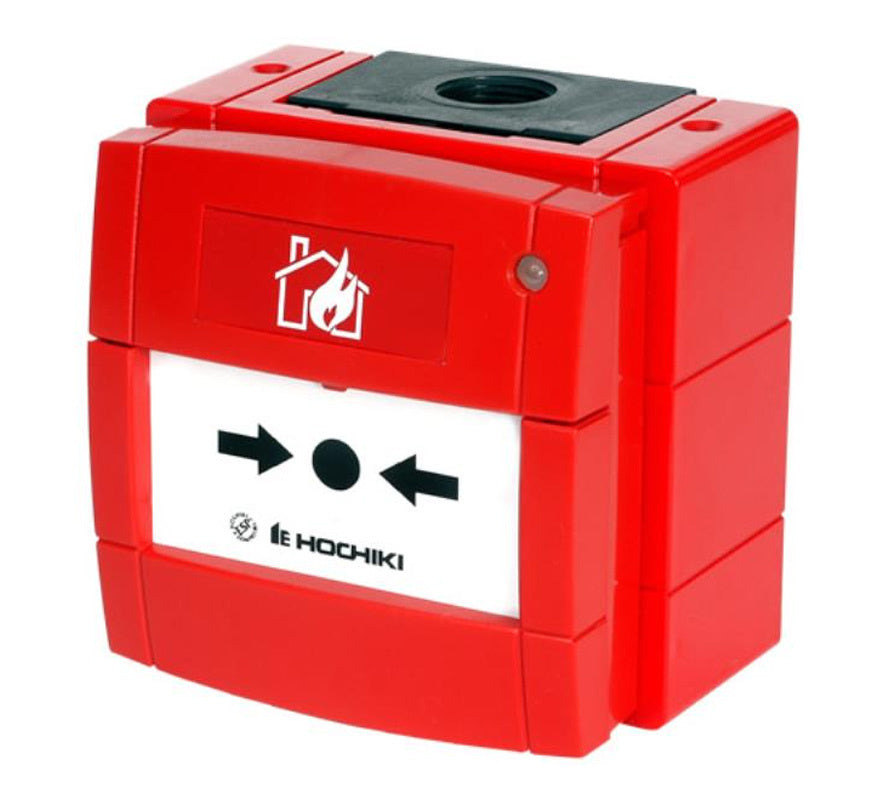

The Hochiki HCP-W(SCI) is an intelligent IP67 weatherproof manual call point, fully compatible with Hochiki's ESP analogue addressable protocol and suitable for external use. It has an integral short-circuit isolator and a bi-coloured status LED.
Operating the non-frangible element produces a high-level ESP interrupt. The LED shows red for polling and alarm, and amber when a short-circuit is present. Two terminal blocks are provided for easy connection to the loop wiring.
Key features
- IP67 weatherproof, surface mounted
- Integral short-circuit isolator
- Bi-coloured LED: red for polling/alarm, amber when a short-circuit is present
- Fast response
- Non-frangible element fitted as standard; optional glass element available
- Built-in test function initiated by the control panel, plus test-key testing from the underside
- Addressed with the TCH-B200 hand held programmer and PL-3 lead
- LPCB approved to EN54
Technical specifications
- Ordering code: HCP-W(SCI)
- Colour: red
- Protocol: Hochiki ESP (digital communication)
- Operating voltage: 17 to 41 VDC
- Low power mode: 180 µA max, 100 µA typical
- Quiescent current: 350 µA max, 250 µA typical
- Alarm current: 10.0 mA max, 5 mA typical
- Short-circuit threshold (typical): 430 Ω
- Ingress protection: IP67
- Case material: modified polyphenylene oxide
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +60 °C
- Maximum humidity: 95% RH, non-condensing (at 40 °C)
- Weight: 234 g
- Dimensions: W 98 x H 94 x D 78 mm
