Hochiki YBD-RA Base Mounting Adapter - Ivory
£3.50
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Compatible with the majority of analogue and conventional bases
- Four pre-moulded 9 x 8 mm knock-outs for surface wiring entry
- Low profile, only 16 mm
- Colour-matched to standard Hochiki sensor, detector and base ranges
- Two surface mounting holes and two base mounting holes
Frequently bought together
Hochiki
Hochiki YBN-UA Recess Adaptor for Ivory ESP & CDX Devices (Requires Installation Kit YYA-A)
Sale price£8.40
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

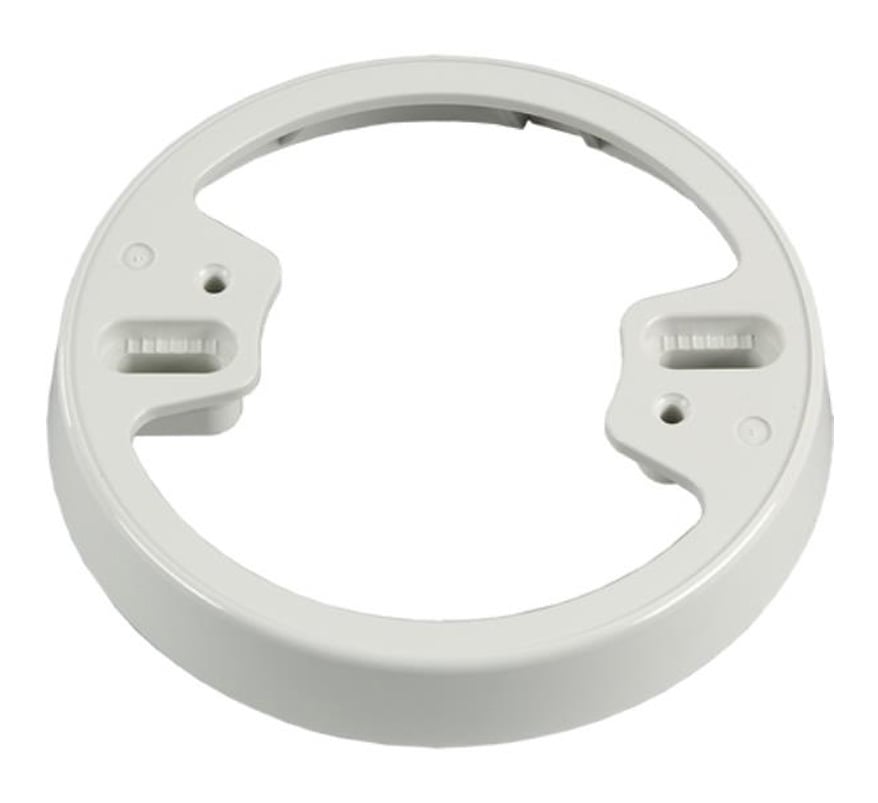

The Hochiki YBD-RA is an ivory surface wiring adaptor that lets most Hochiki sensors and detectors, with their mounting bases, be fitted flush against a fixing surface while allowing surface wiring (without conduit) to be connected. It is compatible with the majority of ESP analogue addressable and CDX conventional bases, and four pre-moulded knock-outs provide cable entry.
Key features
- Compatible with the majority of analogue and conventional bases
- Four pre-moulded 9 x 8 mm knock-outs for surface wiring entry
- Low profile, only 16 mm
- Colour-matched to standard Hochiki sensor, detector and base ranges
- Two surface mounting holes and two base mounting holes
Technical specifications
- Ordering code: YBD-RA (ivory)
- Maximum humidity: 95% RH non-condensing (at 40 °C)
- Operating temperature: -20 °C to +70 °C
- Colour / material: ivory / ABS
- Weight: 27 g
- Dimensions: Ø110 x 16 mm (H)
- Fixing centres: 61-89 mm
- Maximum wire size: 2.5 mm²
- Compatible ESP bases: YBN-R/3, YBO-R/SCI, YBO-R/NCS
- Compatible CDX bases: YBN-R/6, YBN-R/6SK, YBO-R/6R, YBO-R/6RN, YBO-R/6RS, YBO-R/6PA
- Base fixing screws: M4 x 20 mm max. (not supplied)
