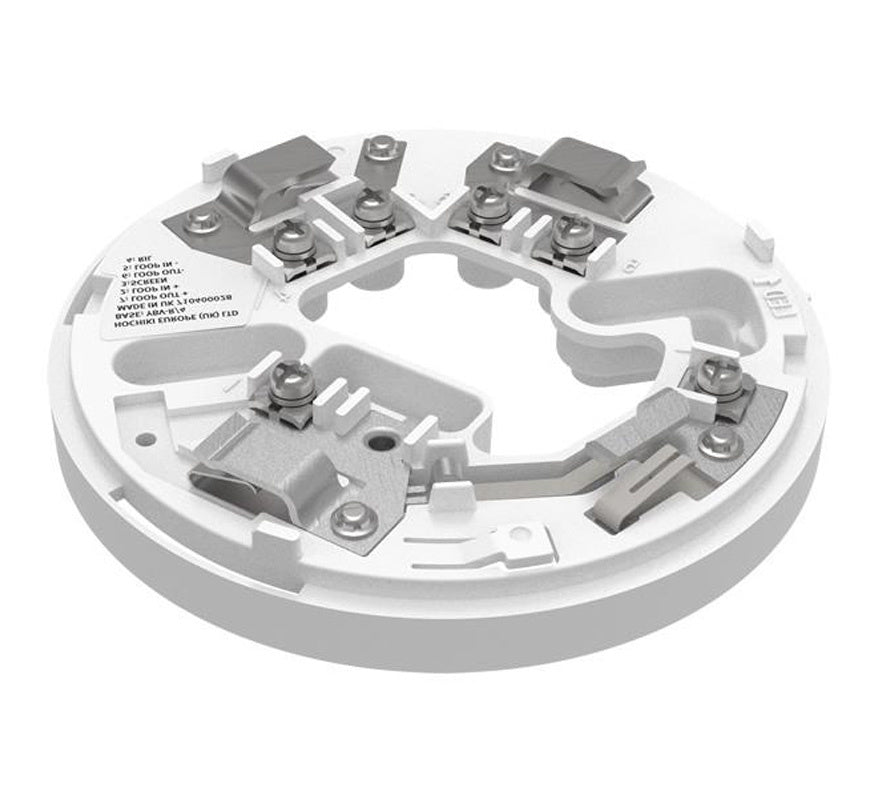

The Hochiki YBV-R/4(WHT) is a white SCI sensor mounting base, fully compatible with the Hochiki ESP range of SCI (short-circuit isolator) sensors. Its fourth terminal lets SCI sensors operate with their isolator function; the base itself does not provide short-circuit isolation. It is supplied with square cable clamps for secure cable termination and can drive a remote LED indicator.
Key features
- Electronics free, with stainless steel contacts
- Fourth terminal enables SCI functionality of sensors
- Slim profile, only 8 mm
- Takes 2.5 mm² cables
- Facility for remote indicator
- Quick connection via square cable clamps
Technical specifications
- Ordering code: YBV-R/4(WHT) (white)
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +70 °C
- Maximum humidity: 95% RH non-condensing (at 40 °C)
- Colour / material: white / ABS
- Weight: 50 g
- Dimensions: Ø100 x 8 mm (H)
- Fixing centres: 48-74 mm
- Maximum wire size: 2.5 mm²
