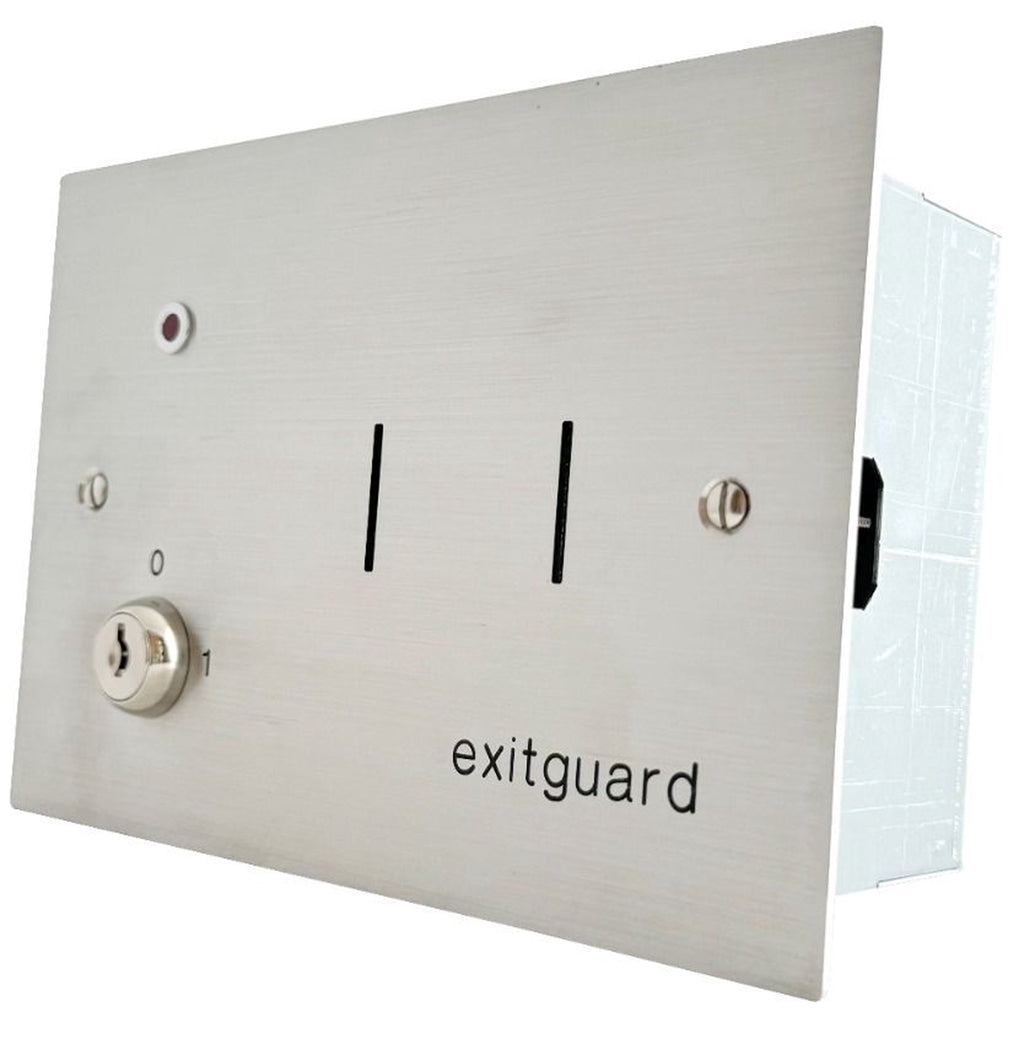

Flush mount 12vdc powered Stainless Steel Exitguard Ideally suited for more prestigious buildings or anywhere where flush mount equipment is required. Use where the protected door may be opened frequently or the sounder may need to sound for a long time. This version can also be used as part of a system where it is necessary to interface with other equipment such as intruder alarms or access control systems. There is an alarm output relay for connection to remote systems. Please note: This version cannot be powered by batteries. Requires a separate 12vdc PSU minimum of 250mA , see PSU-12/2AB, if battery backup is required see BAT12V3300LA Keyswitch Control 12vdc Powered Alarm Relay Output High Power Piezo Sounder Auto Re-arm & Reset Delay (variable) D oor O pen T oo L ong Default delay 0 OR 15 seconds Visual Alarm Indication Tamper Switch Separate Tamper Tone with Manual Reduction Chime Facility Selectable Alarm Tones Simple Function Change by Internal Jumpers Door contact supplied Surface mount using S0610-SB Facia Dimensions 180 x 125 x 2mm - Back Box Dimensions 165 x 100 x 55mm Supplied with installation instructions, wall fixings, door contact with 1 metre of cable and door warning label.
