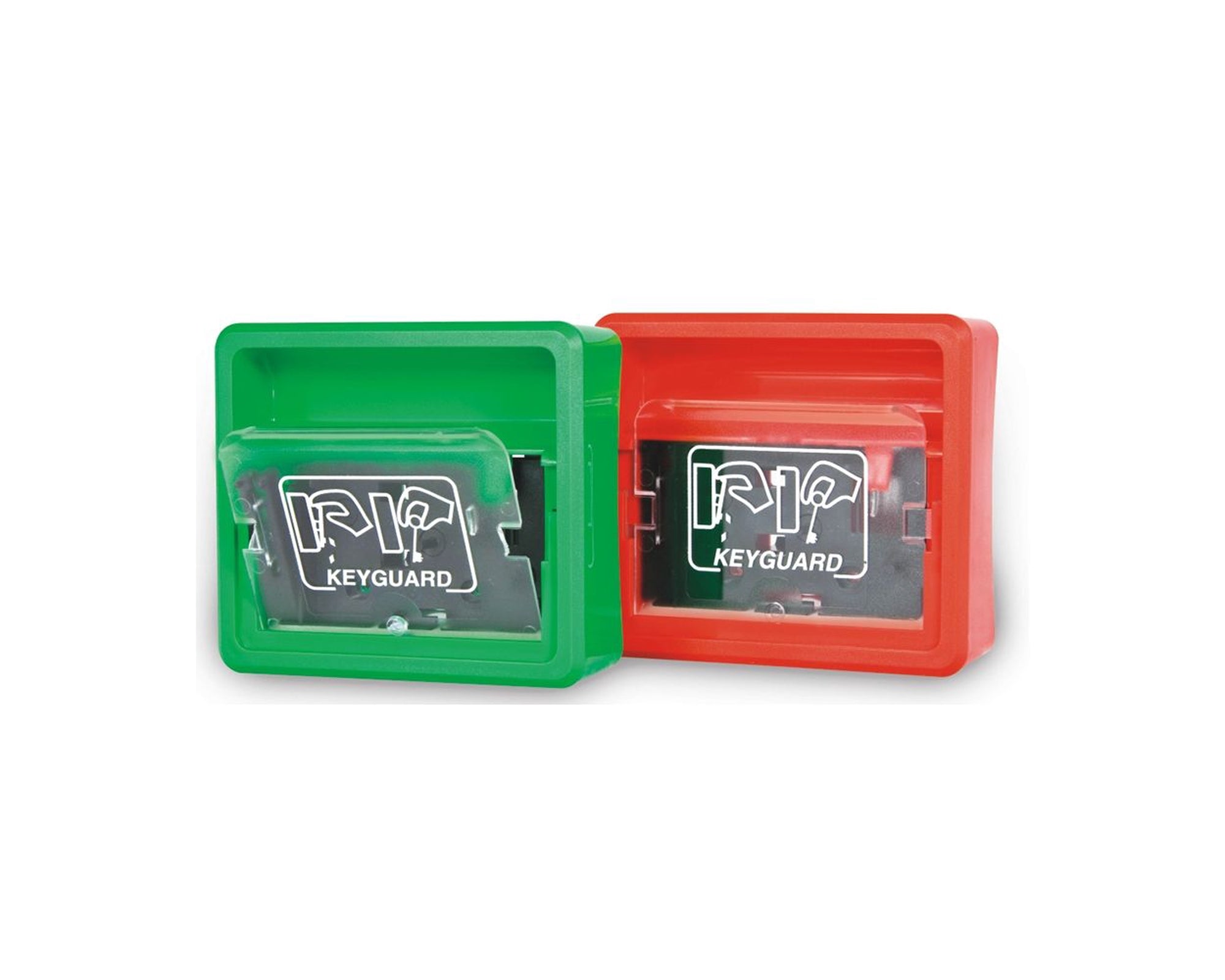

Keyguard is a unique plastic emergency key box , which is fitted with a clear, non-hazardous plastic window, to ensure you can easily see exactly what is inside. It’s designed to retain the key or access control card that is inside and is the modern and safe alternative to the traditional ‘break glass’ key box that can become a hazard. A recess enables quick removal of the plastic window in an emergency to retrieve the key with ease and is designed in such a way that it cannot be refitted after removal. Types of Keyguard key box available: K1000G and K1000R are the standard version with no alarm or switch. K1010G and K1010R have an integral audible alarm that is powered from a PP3 Alkaline battery (supplied). If any attempt is made to remove the plastic window then the alarm is sounded. The alarm can only be silenced by fitting a new window.(K1030GR) K1020G and K1020R are fitted with a single pole changeover contact microswitch. This switch is terminated and is voltage free for connection to the user’s own equipment. The contacts for these key boxes are rated at 10A 240vac, however they should only be used at low voltage less than 48vdc. The case of the Keyguard is not designed to enclose mains voltages. External Dimensions - 142L x 125H x 45Dmm Chamber Dimensions - 90L x 60H x 10Dmm Stores both Keys and Cards Can be wired into existing Alarm Systems Integral Electronic Alarm 90db K1010 only Snatch off plastic windows available Code: K1030GR Plastic Window makes the Keyguard the ideal choice for Food Preparation areas, Schools and Swimming Pools No shards of glass or sharp edges that could cause injury Widely used by fire exit doors, in computer rooms, for master key storage and other situations where a key or card needs to be kept safe and secure Three different models are available in two colours Red and Green
