Universal 12 or 24v multi-function timer relay Universal timer relay module with two timing ranges 1 - 60 sec's & 1 - 60 mins. Volt free DPCO relay contacts are rated at 2A/30vdc. Multiple trip modes. A-stable operation for pulsing...
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 5 | 2 to 3 working days |
Frequently bought together
Product details

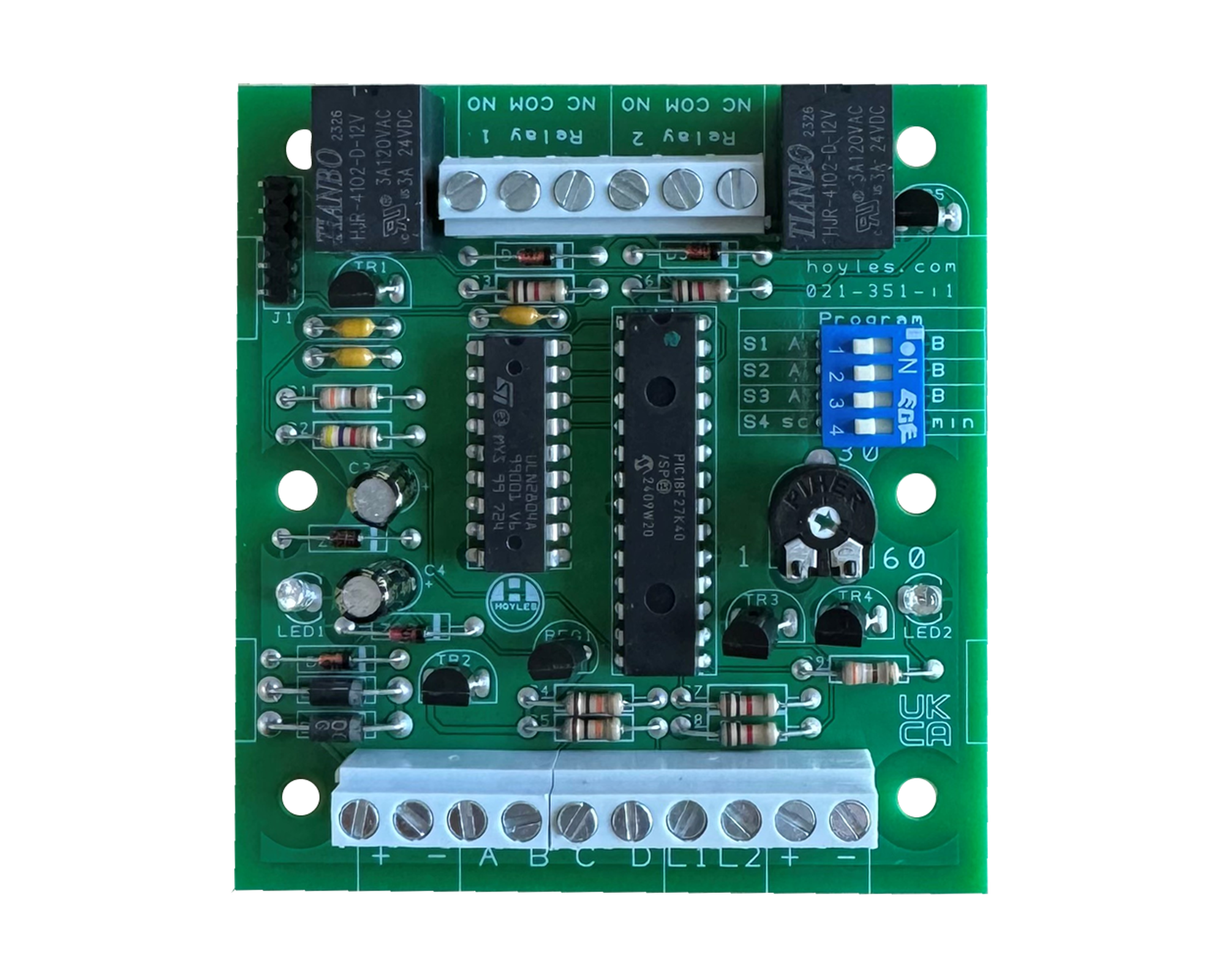

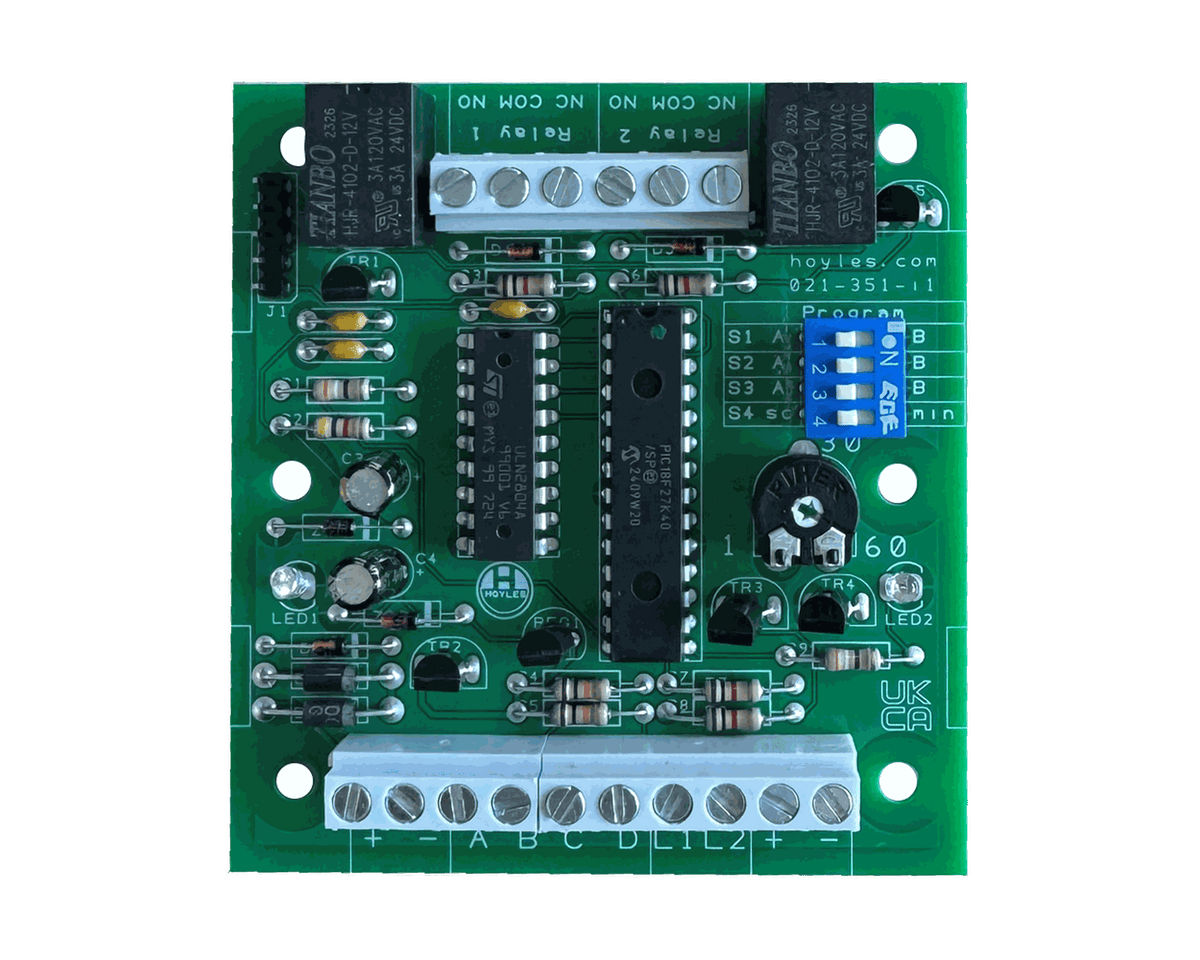

Universal 12 or 24v multi-function timer relay Universal timer relay module with two timing ranges 1 - 60 sec's & 1 - 60 mins. Volt free DPCO relay contacts are rated at 2A/30vdc. Multiple trip modes. A-stable operation for pulsing sounders etc. This versatile unit can also be used as a commutating relay i.e. one pulse energises the relay and a further pulse de-energises the relay. Features Requires 12vdc or 24vdc supply at 90mA Relay contacts rated at 2A Red and green indicator LEDs Two open collector outputs which follow the LEDs Mounting holes provided for permanent fixing Screw terminals for easy connection Dimensions - L80 x W74 x D16mm
Datasheet
Hoyles Multi-Function Timer Relay 12VDC Need the datasheet? Our team will email it to you. Request datasheet
