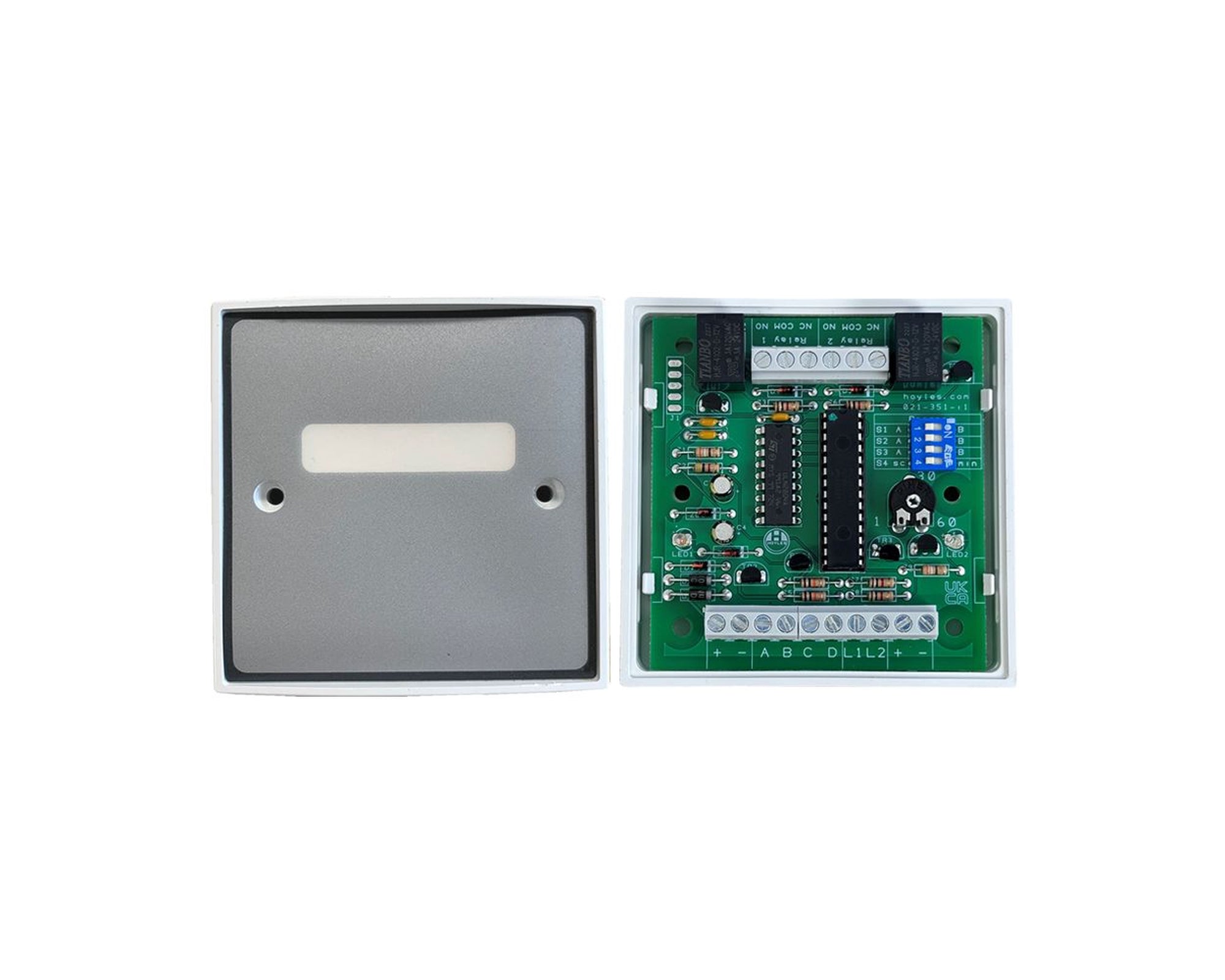

Boxed Multi Function Timer Relay 12/24vdc Mounted in a standard white plastic single gang enclosure complete with front and back acting tamper switch. A unique labelling system allows for the onsite labelling of the enclosure. Universal timer module with two timing ranges 1 - 60 sec's & 1 - 60 mins. Volt free DPCO relay contacts are rated at 2A/30vdc resistive. Multiple trip modes. A-stable operation for pulsing sounders etc. This versatile unit can also be used as a commutating relay i.e. one pulse energises the relay and a further pulse de-energises the relay. Requires 12 or 24vdc supply at 90mA Relay contacts Rated at 2A Mounting holes provided for permanent fixing Cable entry Screw terminals for easy connection Intended for internal use only UKCA and CE marked, ROHS compliant Manufactured in the Uk
