Name: Hoyles S312N Transistorised Double Pole Relay Module
Brand: Hoyles
SKU: S312N
Price: 18.00 GBP
Availability: InStock

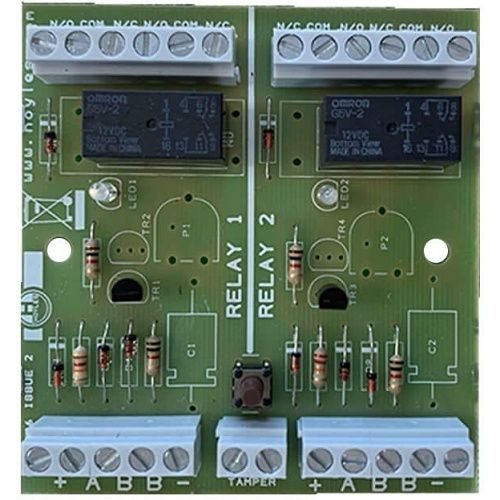

Hoyles S312N Transistorised Double Pole Relay Module

Roll over image to zoom in Click on image to zoom

General purpose transistor driven interface relay. This device accepts a variety of input conditions (Voltage, Logic, Closed Circuit and Open Circuit) for interfacing various signals via voltage free DPCO contacts.

Main Features

Self adhesive backed for easy mounting
Four holes also provided for permanent fixing
S312N Requires 12vdc supply at 30mA
24 vdc and ac versions available from stock
S312N available in 20 off packs
Contacts Rated at 2amp
Dimensions - L57mm x W47mm x D14mm

Specifications

Depth	14.00mm
Environmental Certification	CE; RoHS
Environmentally Friendly	Yes
Form Factor	PCB Module
Height	228.00mm
Limited Warranty	3-Year
Material	Steel
Maximum Operating Voltage	24V
Packaged Quantity	20
Product Type	Relay Module
Width	47.00mm
Country of Origin	UK
Manufacturer	Hoyles Electronic Developments Ltd
Maximum Input Current	40.00mA
RoHS Compliant	Compliant
Switching Current	2A
WEEE Compliant	Not Applicable
