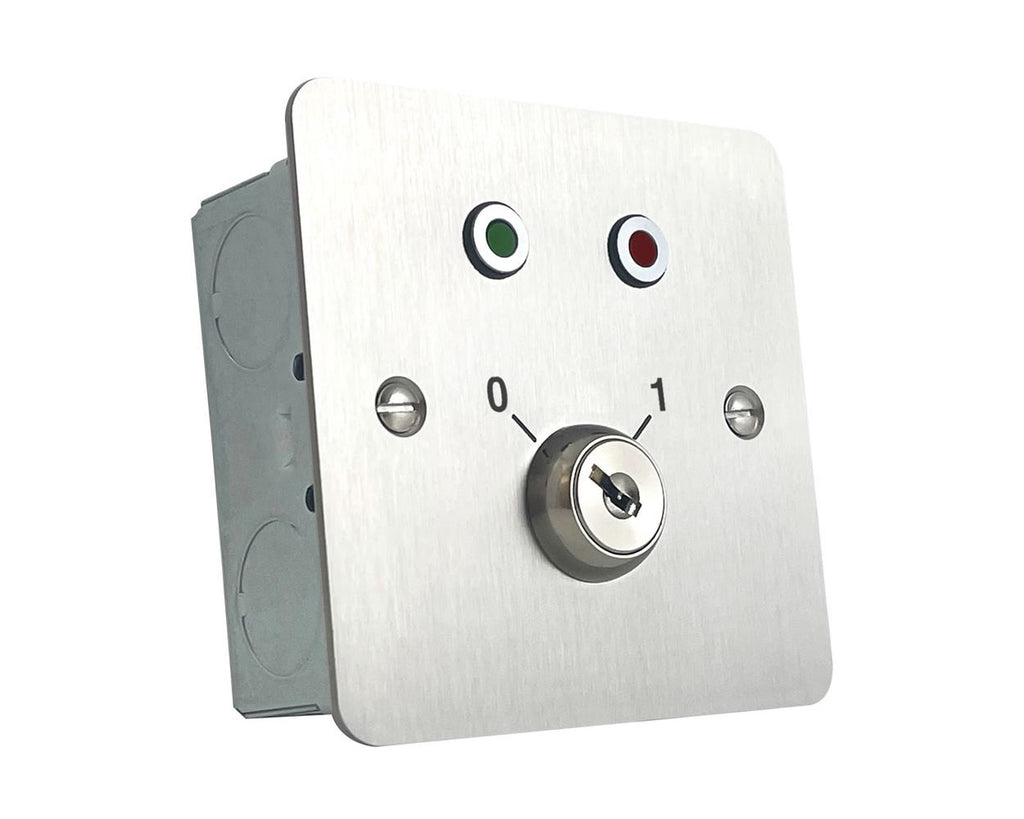

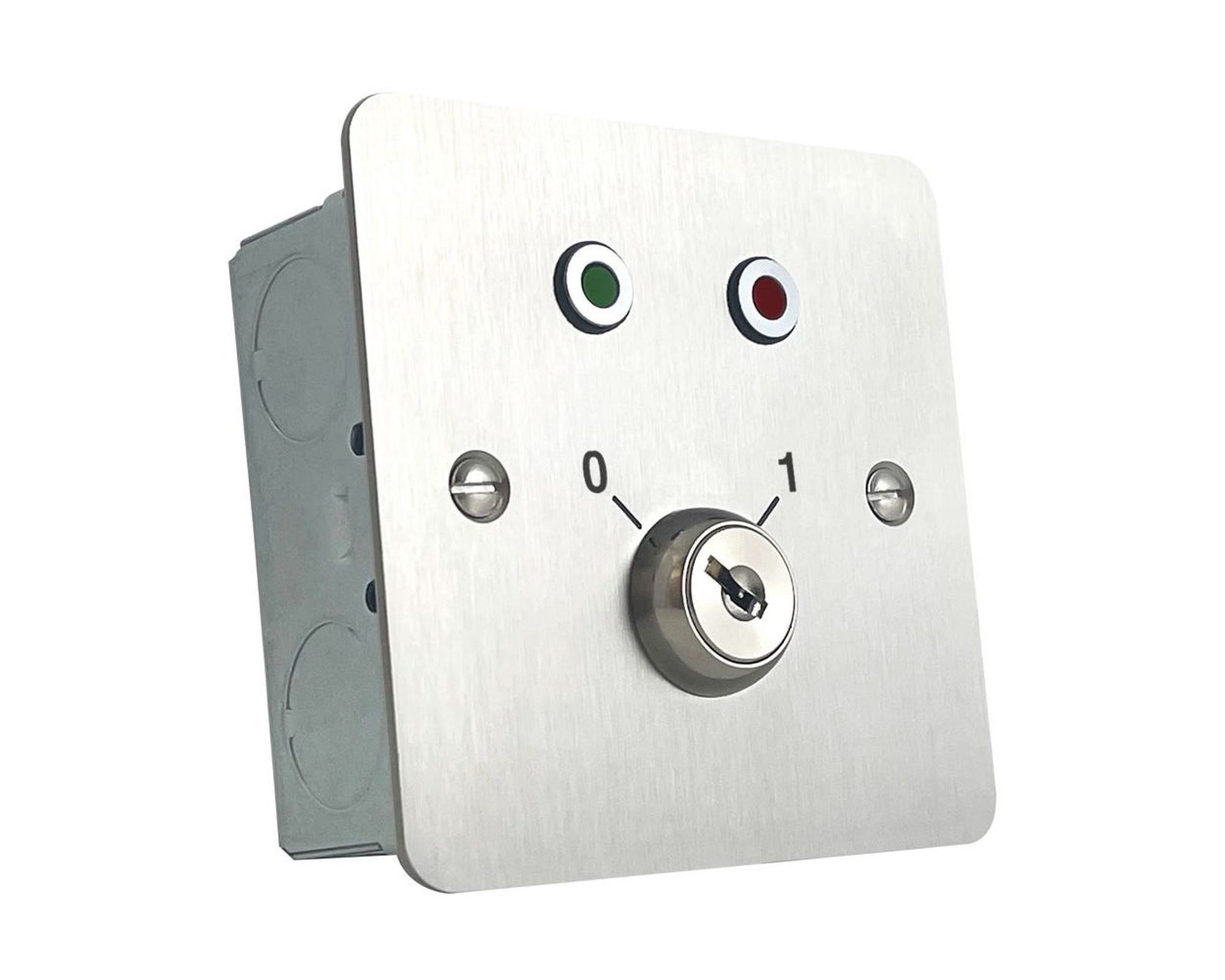

Flush fitting stainless steel lasered two position keyswitch with one red and one green flat LED in chrome bezels. This is a double pole unit with change over contacts. The keyswitch on this version can be removed in both positions. Separate terminals are provided for the LEDs. The LED current limit resistor is provided for 12 vdc operation. Specification: Led Current - 20mA per LED @12vdc Switch Contacts - DPCO 2A @30vdc Sounder Current - N/A Visual Indication -1 x red LED 1 X green LED Integral Sounder Level - N/A Tamper - N/A Material - 316 Grade Stainless Steel Text - Permanently laser marked Dimensions - 86 x 86 x 2mm - Facia 38mm galvanised back box supplied Surface mount using S0610-38 Weight - 0.28kg IP Rating - IP65 front side contact area Approvals - UKCA and CE marked, ROHS compliant
