Kentec K67000M1 Syncro View Local LCD Repeater Panel without Power Supply
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 2 | 2 to 3 working days |
- Up to 15 annunciators can be connected to each Syncro, Syncro Response or Syncro AS fire control panel.
- Large liquid crystal display (240 x 64 pixels)
- High brightness LED indications
- Internal sounder
- Replicates all Syncro panel controls
- Simple, two-wire serial connection
Frequently bought together
Product details

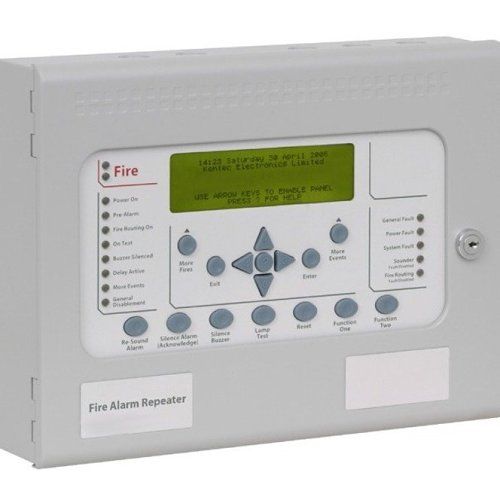

The Syncro View fire alarm repeater provides a cost effective, simple and convenient method of extending the controls and indications of the Syncro AS fire alarm control panel to other locations.
The large, graphic LCD, brightness LED indicators and full set of controls duplicate the indications and controls on the Syncro AS fire alarm control panel at up to 15 additional locations via a (separate to the Syncro AS network) simple, two-wire serial data connection.
Ideal for locations where a control and indication point smaller than a full fire alarm control panel is required, the Syncro VIiew is available in either a 24V DC powered option (which can be powered via an additional 2 cores from the Syncro AS control panel auxiliary 24V DC supply) or a 230V powered option with local battery back up
- Up to 15 annunciators can be connected to each Syncro, Syncro Response or Syncro AS fire control panel.
- Large liquid crystal display (240 x 64 pixels)
- High brightness LED indications
- Internal sounder
- Replicates all Syncro panel controls
- Simple, two-wire serial connection
- Small, Syncro style enclosure
- Small, Syncro style enclosure
- 24V DC or 230V AC power options
Specifications
| Compatibility | Syncro AS Fire Control Panel |
|---|---|
| Depth | 90.00mm |
| Device Supported | Fire Alarm Control Panel |
| Features | LED Indicator |
| Height | 255.00mm |
| Input Voltage | 30V DC |
| Limited Warranty | 3-Year |
| Product Line | Syncro View |
| Product Type | Control Panel Active Repeater |
| Status Indicators | LED |
| TAA Compliant | No |
| Weight | 4.00kg |
| Width | 330.00mm |
| Colour | White |
| Manufacturer | Kentec Electronics Ltd |
| RoHS Compliant | Exempt |
| WEEE Compliant | Exempt |
Downloads
Product datasheet
Kentec K67000M1 Syncro View Local LCD Repeater Panel without Power Supply Product datasheet · K67000M1 · PDF Open datasheet
