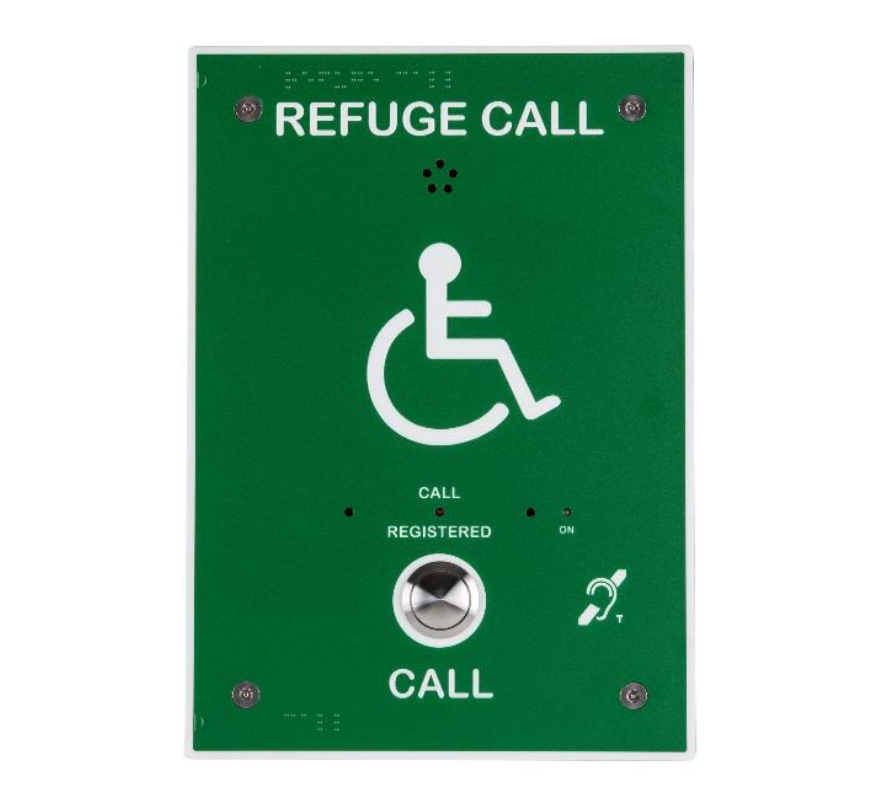

The Kentec Safe-Point K41300NGR is a Type B disabled refuge outstation front panel with a photoluminescent green fascia and Braille idents. It is fully compatible with the Kentec Safe-Point range of disabled refuge (emergency voice communication) control panels.
Fitted at refuge locations, it lets a person hold a two-way (duplex) voice conversation with building control staff at the touch of a button. LED indicators show that a call is registered and that the unit has power. A built-in induction loop helps hearing aid users. The front panel fits a Safe-Point flush or surface back box from the K41500 (radial) or K41600 (loop) series.
Key features
- Type B disabled refuge call/answer point
- Single-button hands-free operation
- Call registered and power on status indicators
- Straightforward 2-wire installation
- Toilet alarm input connections
- Induction loop included for hearing aid users
- Output to mute local sounders/speakers
- Photoluminescent green fascia with Braille idents
Technical specifications
- Product code: K41300NGR (front panel: steel, photoluminescent green)
- Front fascia: 224 (W) x 307 (H) x 1.5 (D) mm
- Flush back box: 204 (W) x 287 (H) x 83 (D) mm
- Weight: 1 kg
- Matching back boxes: K41500FGA flush / K41500SGA surface (radial); K41600FGA flush / K41600SGA surface (loop)
