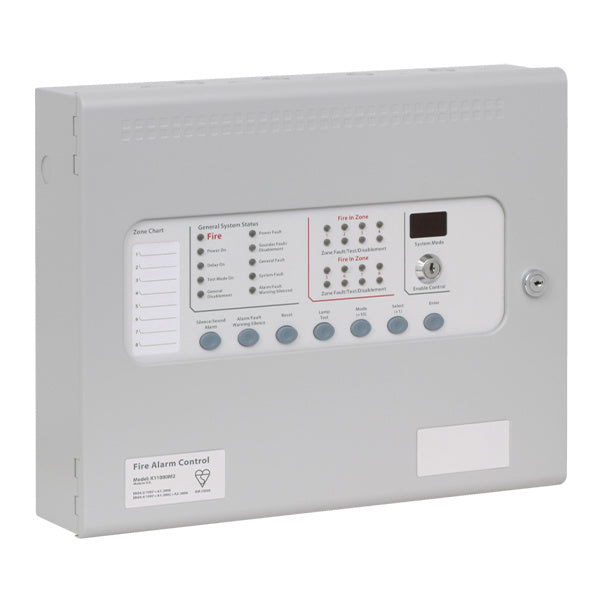

Kentec Sigma 2 Zone Conventional Fire Panel (KL11020M2)

The Kentec Sigma CP KL11020M2 is a 2 zone, 4-wire conventional fire alarm control panel, fully certified to EN54-2 and EN54-4. The KL version includes the LCMU. Sigma CP panels work with most standard conventional detectors, call points and sounders, and suit both new installations and panel replacements on older systems.

Key features

• Fully certified to EN54-2 and EN54-4; suitable for BS 5839-1:2017 installations
• Two monitored sounder outputs and an auxiliary power output
• 3A power supply
• Simple single-board construction
• Fully programmable using simple menu options; configuration stored in non-volatile memory
• Adjustable sounder delay, zonal sounder delay for detectors only or call points only
• Coincidence input selection, I.S. barrier selection by zone, short circuit fire by zone
• Non-latching zones, silent zones and zone input delay
• Compatible with Sigma CP-R repeaters and ancillary boards

Technical specifications

• Zones: 2 (4-wire)
• Supply voltage: 230V AC (+10%/-15%)
• Mains supply fuse: 1.6A 250V
• Power supply DC rating: 24V 3A
• Batteries: two 12V, 7Ah max
• Standby current: 0.065A; alarm current: 0.1A
• Sounder outputs: 0.5A per output, 1.6A max over all outputs
• Detection zone current: 1.6mA; detection zone EOL: 6k8 5% (active EOL K14606K optional)
• Sounder output EOL: 10k 5%
• Fault, local fire and fire contacts: 30V DC 1A
• Cable capacity: 2.5mm² per terminal
• Dimensions: 385 x 310 x 90mm; weight 6kg
• Construction: 1.2mm mild sheet steel, epoxy powder coated, BS 00 A 05 grey with RAL 7047 light grey control panel
• IP rating: IP30
• Operating temperature: -5°C to +40°C, humidity <95% non-condensing
