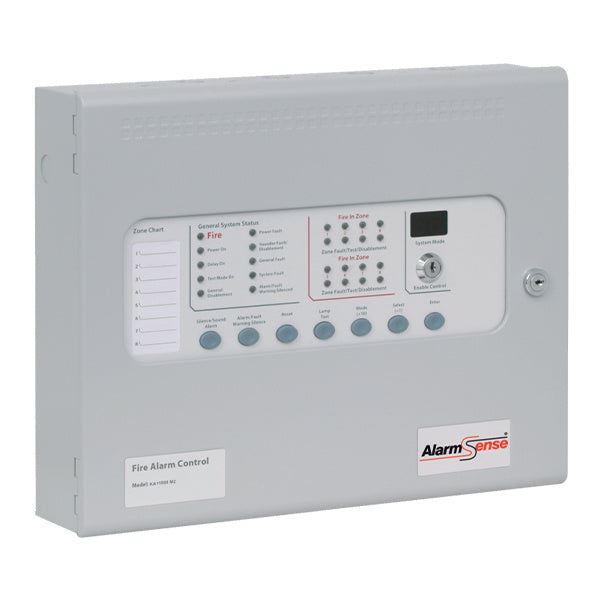

The Kentec Sigma CP-A KA11080M2 is an 8 zone conventional fire alarm control panel for the Apollo AlarmSense two-wire system, certified to EN54-2 and EN54-4. AlarmSense lets compatible smoke and heat detectors, call points, sounders, sounder beacons and alarm relays share a single pair of wires on each zone, so separate sounder circuit cables are not needed. The panel has an integral, mains-powered power supply and battery charger.
Key features
- Complies with EN54-2 and EN54-4
- 8 AlarmSense zones for Apollo AlarmSense detectors, call points, sounders, sounder beacons and alarm relays
- Zoned or two-stage sounder operation without separate sounder cabling
- Priority/non-priority sounder scheme: only the sounder local to the activated detector can be set to operate first, subject to a configurable alarm verification period; suited to Houses of Multiple Occupation and full compliance with BS 5839-6
- Configurable alarm verification delay of 30, 60 or 120 seconds
- Dedicated (common) sounder outputs in addition to the zonal sounders
- Volt-free fire, local fire and fault relay contacts
- Test mode with automatic resetting of zones for testing
Technical specifications
- Zones: 8 (AlarmSense)
- Mains supply: 230V AC +10%/-15% (100W max)
- Power supply rating: 3A total including battery charge
- Output voltage: 18.5 to 29V DC
- Batteries: two 12V sealed lead acid, 7Ah max
- Standby battery for a fully loaded panel: 3.75Ah (24h), 5.95Ah (48h)
- Standby current: 0.093A; max panel alarm current: 0.55A
- Detectors per zone: up to 20
- Dedicated sounder outputs: 24V, 500mA each; zonal sounder outputs: 24V, 200mA; 1.6A total across all circuits
- Relay contacts (fire, local fire, fault): 30V DC 1A max
- Detection circuit EOL: 3k3 resistor; sounder circuit EOL: 10k resistor (supplied)
- Terminal capacity: 0.5mm² to 2.5mm²
- IP rating: IP30
- Operating temperature: -5°C to +40°C, max 95% relative humidity
