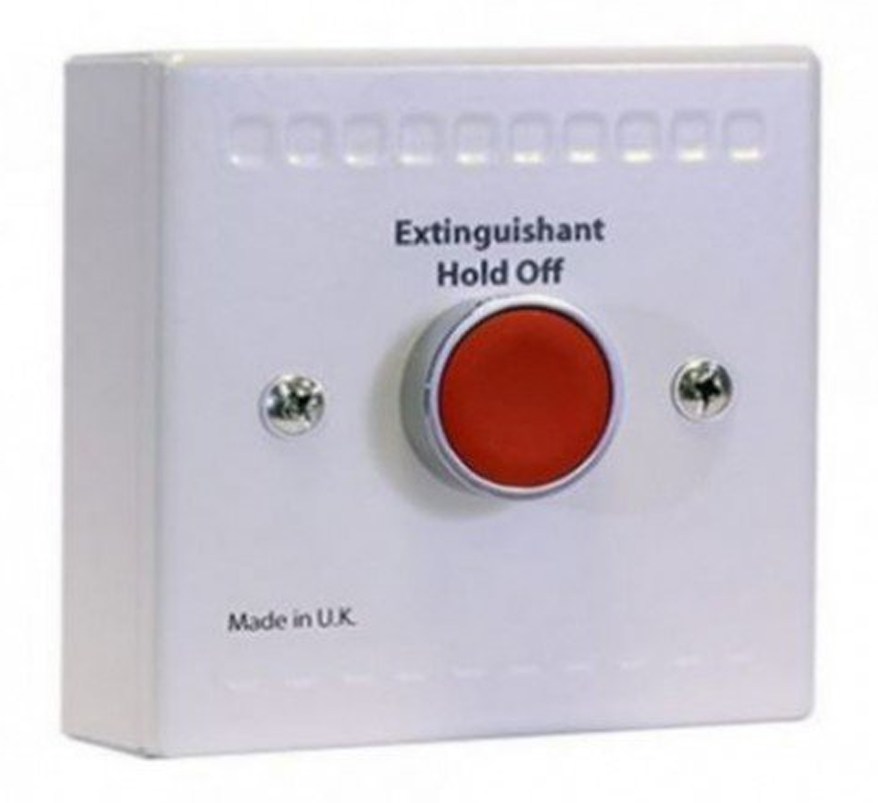

The Kentec KB91000M10 is an extinguishant hold-off unit with a red push button. It gives a convenient point to apply a temporary hold to the release of extinguishant on a fire protection system, and is compatible with all Kentec Sigma XT and Sigma XT+ models.
The push button is shrouded to prevent accidental operation and is coloured to meet BS 7273-1. The steel enclosure can be surface mounted, or flush mounted with the optional collar (M10FCLGT).
Key features
- Shrouded push button to prevent inadvertent operation
- Activation (trigger) resistor included
- Compatible with all Sigma XT and Sigma XT+ models
- Robust steel surface-mount enclosure
- Flush mount collar available separately (M10FCLGT)
Technical specifications
- Product code: KB91000M10 (red button)
- Dimensions: 102 x 102 x 50 mm
- Construction: 1.2 mm mild sheet steel, IP30; BS 00 A 05 grey fine texture
- Weight: 1 kg
- Contacts: 1 x normally open, 1 x normally closed
- Trigger resistor: 470R 1 W
- Knockouts: 20 mm
- Operating temperature: -5°C to +40°C
