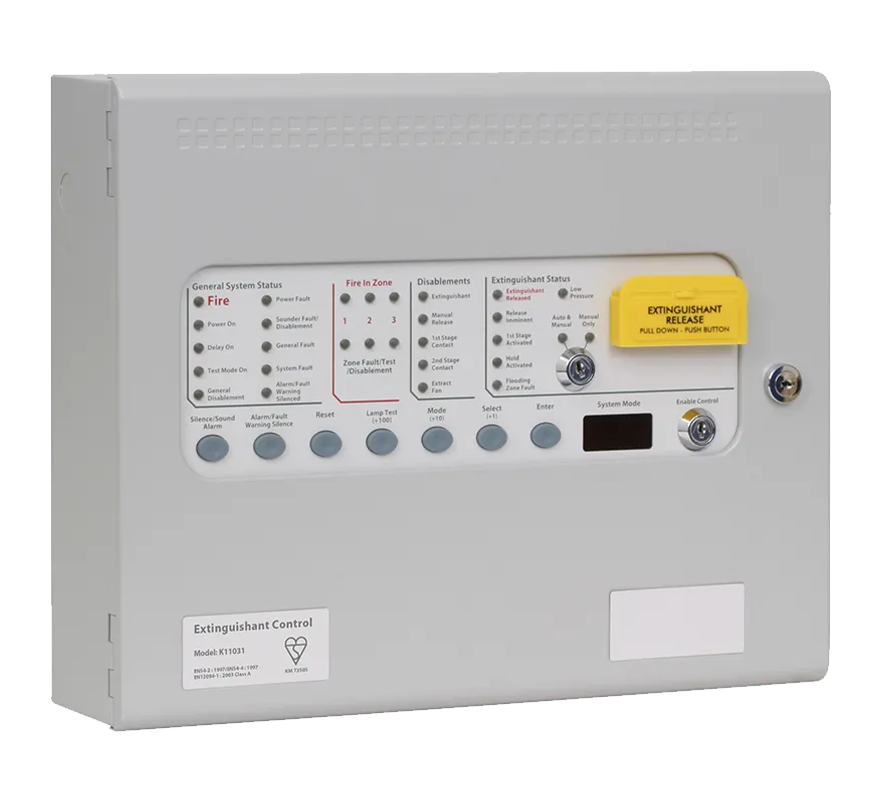

Kentec Sigma XT Extinguishant Control Panel (K11031M2)

Kentec Sigma XT Extinguishant Control Panel (K11031M2)

The Kentec Sigma XT Extinguishant Control Panel (K11031M2) is a professional three-zone, single-area extinguishing control panel designed for the control of fixed gaseous fire suppression systems. Suitable for small to medium-sized installations, the Sigma XT combines fire detection and extinguishant release control within a robust and easy-to-install surface-mounted enclosure.

Featuring three detection zones as standard, the K11031M2 can be configured so that any single zone or combination of zones initiates the extinguishant release sequence. This flexibility allows the system to support a wide range of suppression applications while helping installers meet specific site requirements.

The Sigma XT provides configurable detection and first-stage sounder delays, an adjustable extinguishant release delay and a clear countdown timer showing the time remaining before discharge. It also supports manual release operation and connection of up to seven compatible four-wire status indicators.

Designed and manufactured for professional life safety applications, the K11031M2 is approved to EN12094-1, EN54-2 and EN54-4, providing a dependable solution for controlling gaseous fire suppression systems.

Key Features

• Genuine Kentec Sigma XT extinguishant control panel

• Product Code: K11031M2

• Three detection zones

• Single-area extinguishing control

• Surface mount enclosure

• Any single zone or combination of zones can be configured for release

• Configurable first-stage sounder delays

• Configurable detection delays

• Adjustable extinguishant release delay

• Countdown timer displays time remaining until release

• Zero time delay option for manual release

• Compatible with intrinsically safe barriers

• Supports up to seven four-wire status indicators

• Integrated power supply and battery charger

• Robust steel enclosure

• Approved to EN12094-1, EN54-2 and EN54-4

Technical Specifications

• Brand: Kentec

• Range: Sigma XT

• Product Code: K11031M2

• Product Type: Extinguishant Control Panel

• Detection Zones: 3

• Extinguishing Areas: 1

• Mounting: Surface

• Mains Supply: 230V AC, 50Hz

• Power Supply Rating: 3A

• Detection Circuits: 3

• Sounder Circuits: 3

• Extinguishant Release Output: 21 to 28V DC, 1A maximum

• Release Delay: Adjustable from 0 to 60 seconds

• Release Duration: Adjustable from 60 to 300 seconds

• Battery Capacity: Up to 2 × 12V 7Ah sealed lead acid batteries

• Enclosure: Mild steel

• IP Rating: IP30

• Dimensions: 310 × 385 × 90mm

• Weight: Approximately 6kg

• Compliance: EN12094-1, EN54-2 and EN54-4

Ideal Applications

The Kentec Sigma XT K11031M2 is suitable for:

• Gaseous fire suppression systems

• Server and data rooms

• Electrical switch rooms

• Telecommunications facilities

• Plant and machinery rooms

• Archives and document storage

• Commercial buildings

• Industrial facilities

• Critical equipment areas

• Small to medium fixed firefighting installations

Why Choose the Kentec Sigma XT?

The Sigma XT provides flexible detection and extinguishant release control within a compact and proven platform. Its three-zone configuration, programmable release logic and comprehensive indication make it a reliable choice for professional installers designing fixed gaseous fire suppression systems.
