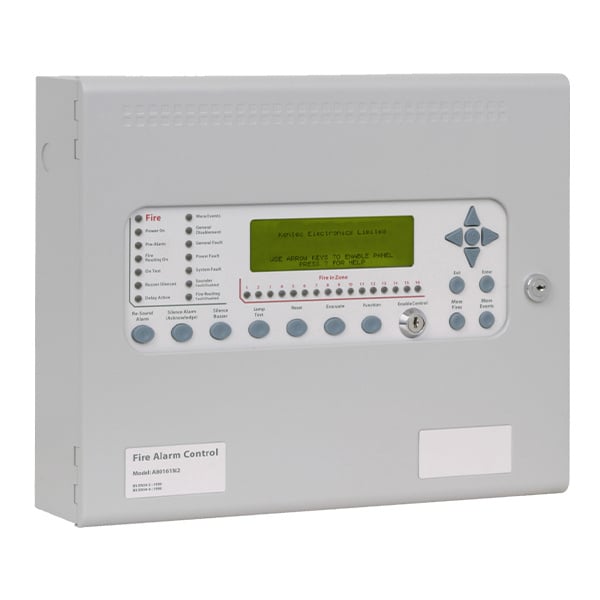

The Kentec Syncro AS A80162M2 is a multi-protocol analogue addressable fire alarm control panel, supplied here in its Apollo protocol version with 2 loop cards and an enable control keyswitch. Syncro AS combines compact styling with the programming power and connectivity of much larger systems, and can be networked to become part of a larger system. It is approved and certified to EN54-2 and EN54-4.
Key features
- 2 loops, 16 zones, Apollo protocol (S90, XP95, Discovery)
- Enable control keyswitch fitted
- Network up to 64 panels (with optional fault tolerant network card K555)
- 2 programmable sounder circuits, 5 programmable inputs and 3 programmable relays
- Up to 512 additional programmable I/O via Syncro I/O modules
- Powerful, network-wide cause and effects
- Sensitivity adjustment and drift compensation
- Compatible with Syncro View repeaters
- Stores the last 500 events in the event log
- Installer friendly, removable equipment chassis
Technical specifications
- Loops: 2 fitted (panel expandable from 1 to 2 loops); zones: 16
- Network: RS485, up to 64 panels via optional fault tolerant network card
- Mains supply: 110 or 230V AC 50 or 60Hz (default 230V)
- Mains supply fuse: 1.6A 250V
- Power supply DC rating: 24V 3A
- Aux 25V supply: fused at 500mA
- Batteries: two 12V, 9Ah max (non-networked)
- Detection loop output: 400mA
- Sounder outputs: fused at 1A each
- Fault, fire and alarm contacts: 30V DC 1A
- Remote inputs (silence, fault, reset, alert, evacuate): switched -ve
- Display: 8 lines of 40 characters graphic LCD
- PC and printer ports: serial RS232; serial expansion port: RS485
- Configuration: via Loop Explorer PC utility (download lead S187 standard or X187LS economy)
- Dimensions: 385 x 310 x 90mm; weight 6kg
- Construction: 1.2mm mild sheet steel, epoxy powder coated, BS 00 A 05 grey
- IP rating: IP30
